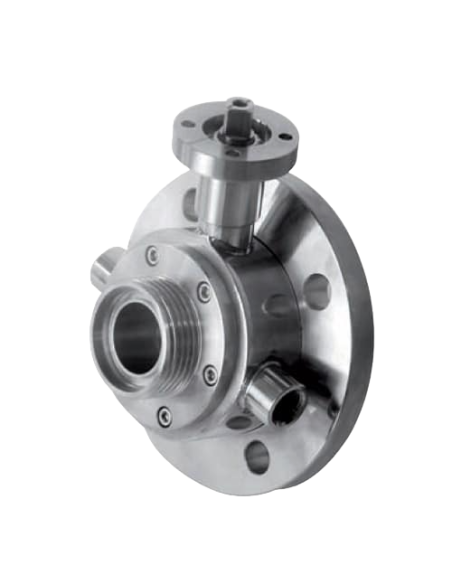

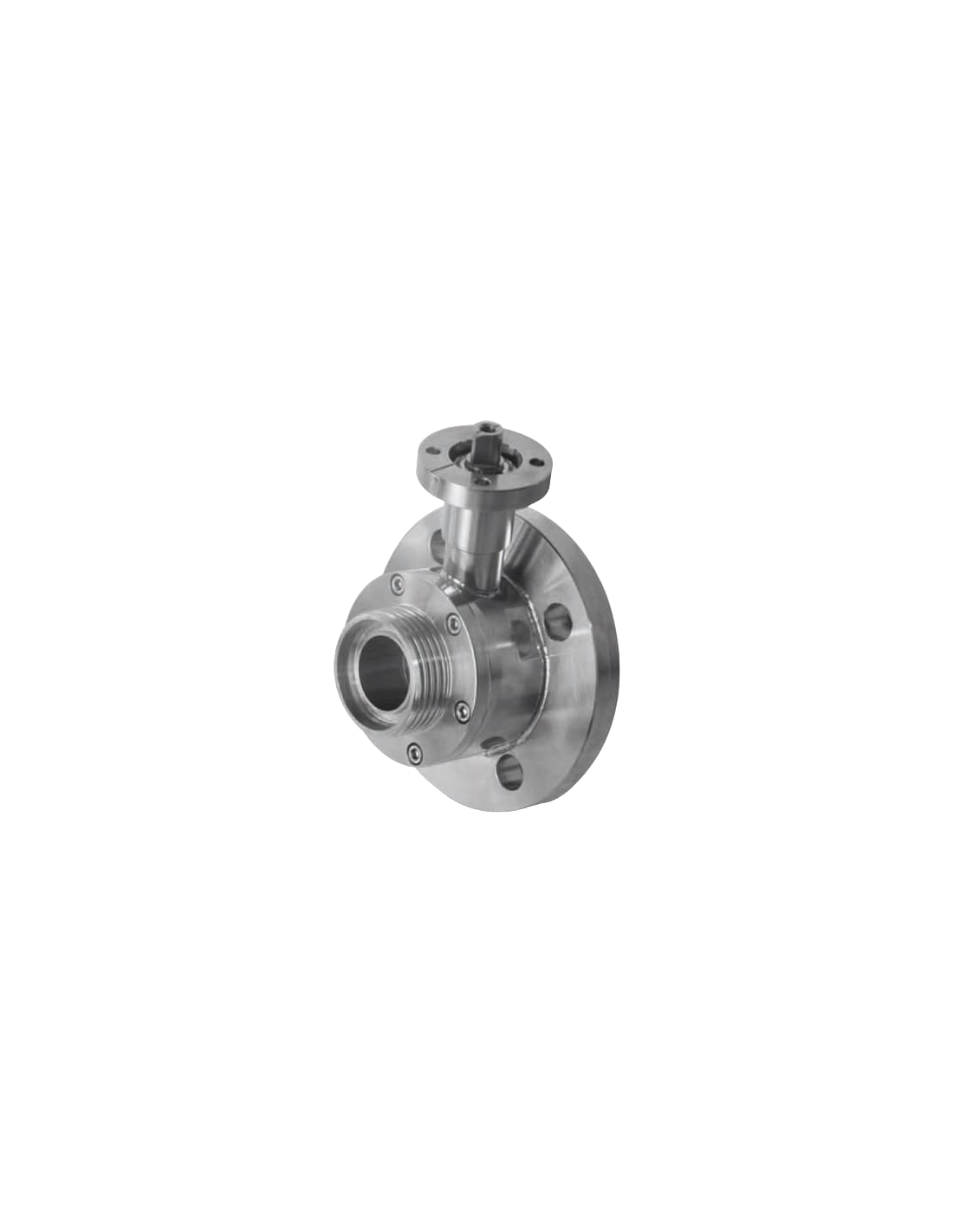

The Ball Valve INTEGRAL SEALS TANK SIDE FLANGE FIXED UNI EN 1092 & DIN 11851 FEMALE ON OUTPUT SIDE - 163025 by 4G Ghidini is a two-way ball valve designed for tank bottom applications. It features a bent stem bottom with an "integral seal" for enhanced sealing capabilities. The valve is equipped with an antistatic device compliant with ATEX standards, classified as II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db, ensuring safe operation in potentially explosive environments. It is driven by an ISO 5211 – DIN 3337 flange for actuator compatibility. The valve's connections include a fixed tank side flange conforming to UNI EN 1092 standards and a DIN 11851 female connection on the output side, allowing for full flow. Constructed from AISI 316L (1.4404) stainless steel, the valve is available in sizes ranging from DN40 to DN125. It features virgin P.T.F.E. seals and operates within a temperature range of -20°C to +160°C. The outer finish is polished for a sleek appearance, and screws for mounting an actuator are included. Optional features include compliance with M.O.C.A. CE 1935/2004, a manual lever kit, and counterflanges for tank installation.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
  • DIN 11851
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve STEM BENT BOTTOM with “INTEGRAL SEAL”

Use: Valve for tank bottom

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

Drive: ISO 5211 – DIN 3337 flange for actuator

Connections: Tank side flange fixed UNI EN 1092 and DIN 11851 Female on output side

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN40 to DN125

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

Screws for mounting actuator included

On request:

M.O.C.A. CE 1935/2004

• MANUAL with LEVER Kit

• Counterflanges for Tank
