The Ball Valve INTEGRAL SEALS TANK SIDE FLANGE UNI EN1092 & CLAMP DIN32676 TAB.4 REIHE C ON OUTPUT SIDE - 163030 by 4G Ghidini is a two-way ball valve designed for tank bottom applications. It features a bent stem bottom with an "INTEGRAL SEAL" and is available with an optional heating jacket. The valve is equipped with an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db). It supports ISO 5211 and DIN 3337 flanges for actuator mounting and has a full flow design. The valve is constructed from Aisi 316L (1.4404) stainless steel, with sizes ranging from DN40 to DN120, and uses virgin P.T.F.E. seals. It operates within a temperature range of -20°C to +160°C and has a polished outer finish. The valve includes screws for actuator mounting and offers optional features such as M.O.C.A. CE 1935/2004 compliance, a manual lever kit, and counterflanges for tanks.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

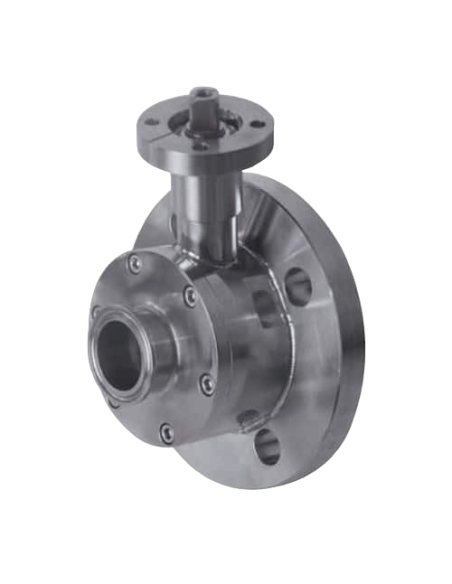

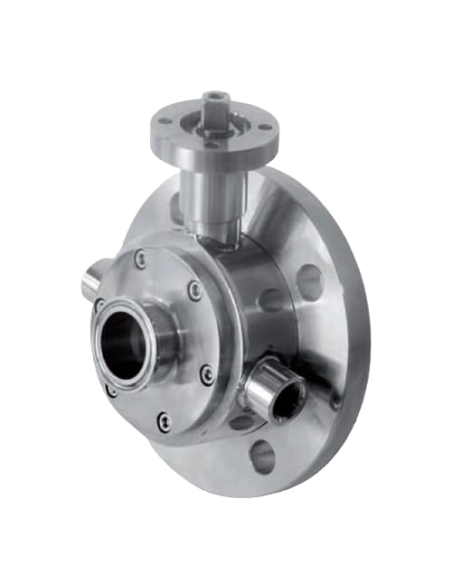

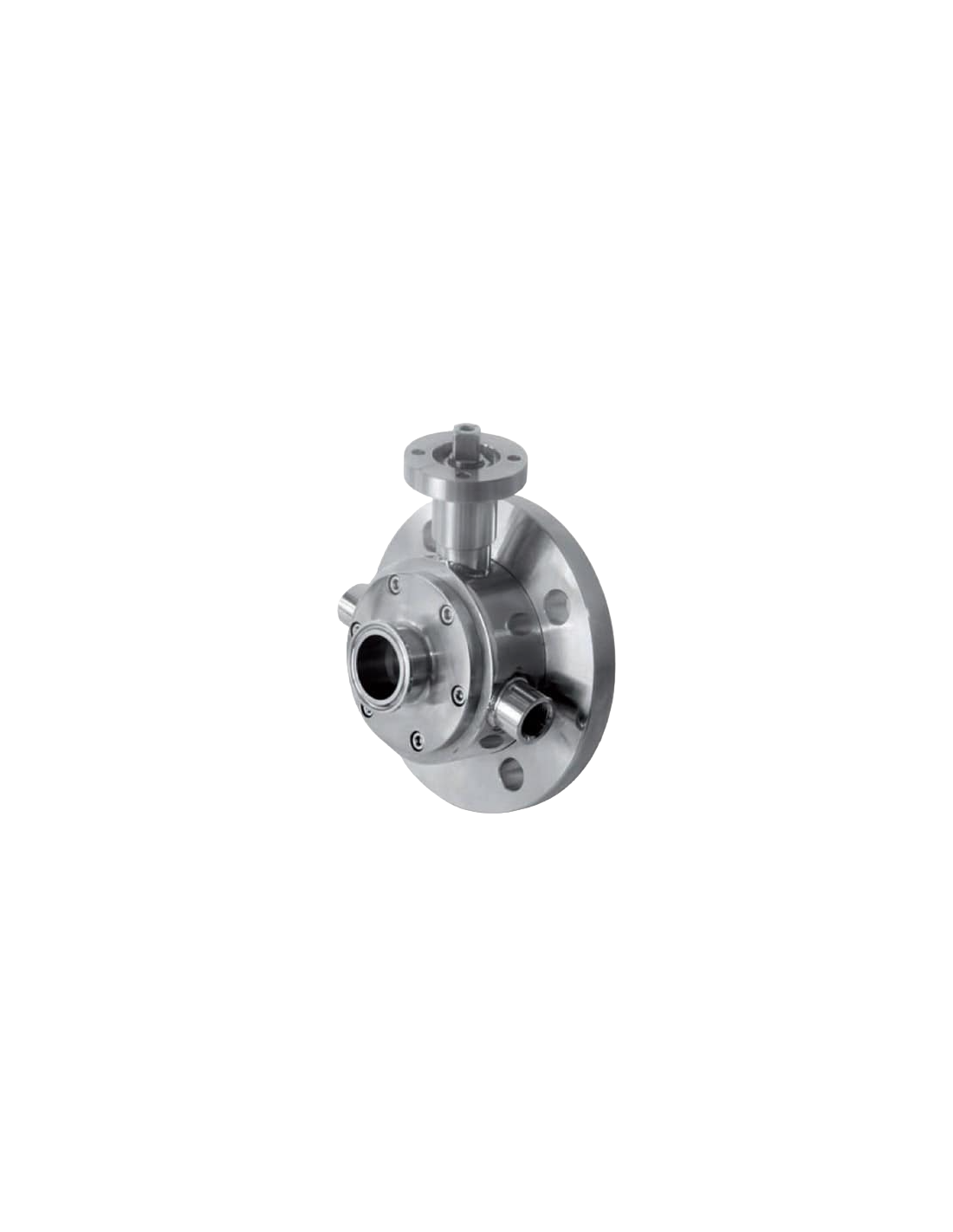

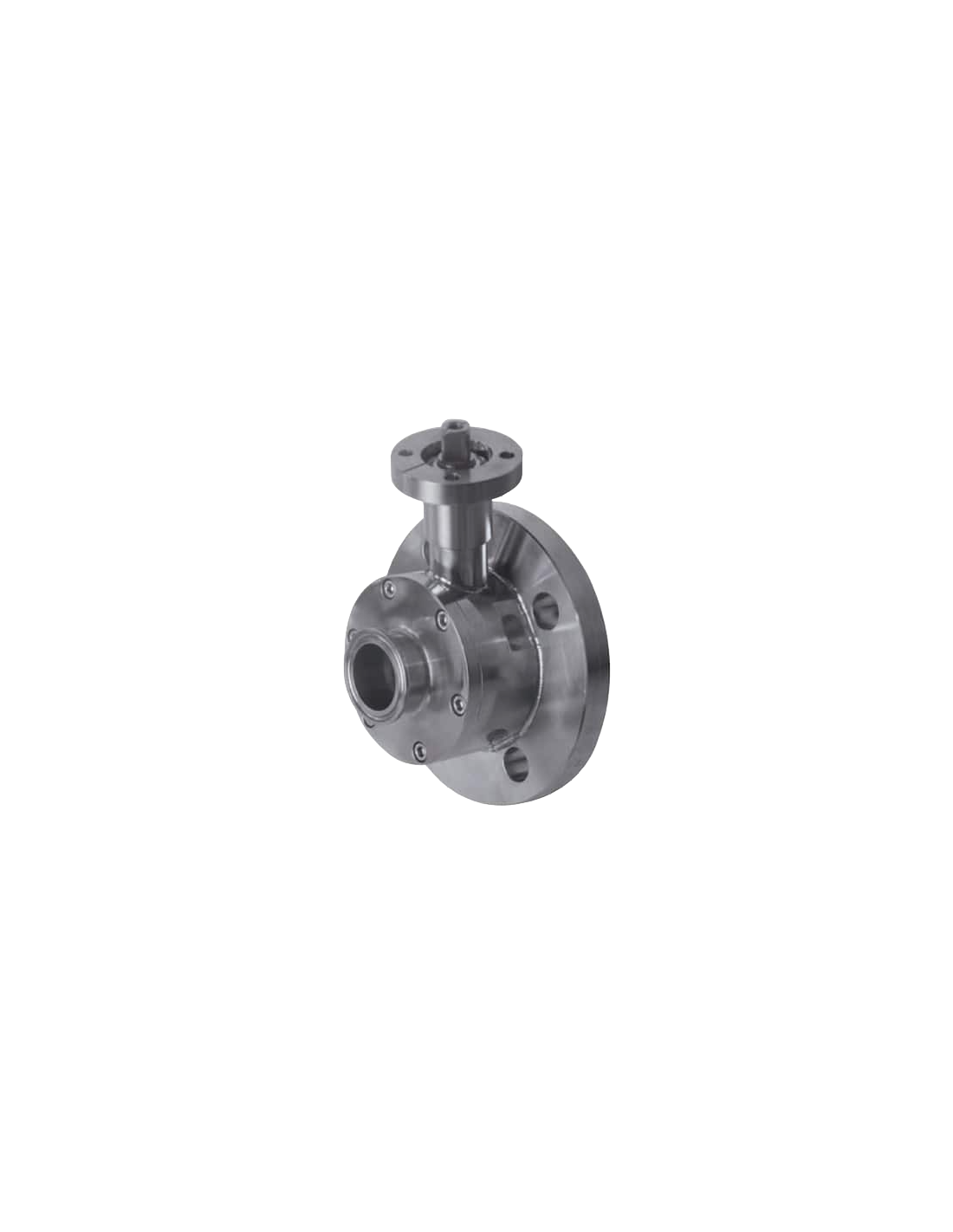

TWO-way ball valve STEM BENT BOTTOM with “INTEGRAL SEAL” / TWO-way ball valve STEM BENT BOTTOM with “INTEGRAL SEAL” with HEATING JACKET

Use: Valve for tank bottom

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

Drive: ISO 5211 – DIN 3337 flange for actuator

Connections: Tank side flange fixed UNI EN 1092 and CLAMP DIN 33676 Tab.4 Reihe C on output side

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN40 to DN120

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

Screws for mounting actuator included

On request:

M.O.C.A. CE 1935/2004

• MANUAL with LEVER Kit

• Counterflanges for Tank
