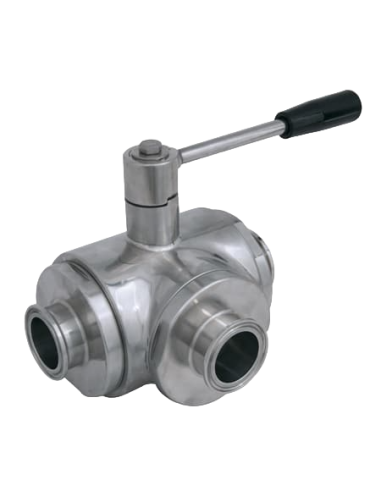

The 3 Way (T) Ball Valve - 300130 by 4G Ghidini is a versatile valve designed for efficient fluid control with a "T" port configuration. It features a robust inox lever for operation and is compatible with various clamp connections according to DIN 32676 standards, suitable for tubes conforming to BS/OD, DIN 11850, and ISO 1127 norms. The valve supports both full and reduced flow and is constructed from high-quality Aisi 304L and Aisi 316L stainless steel. Available in sizes ranging from 1/2” to 4” (DN10 to DN100), it is equipped with modified virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +170°C. The outer finish is polished for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port

Drive: Inox lever

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
