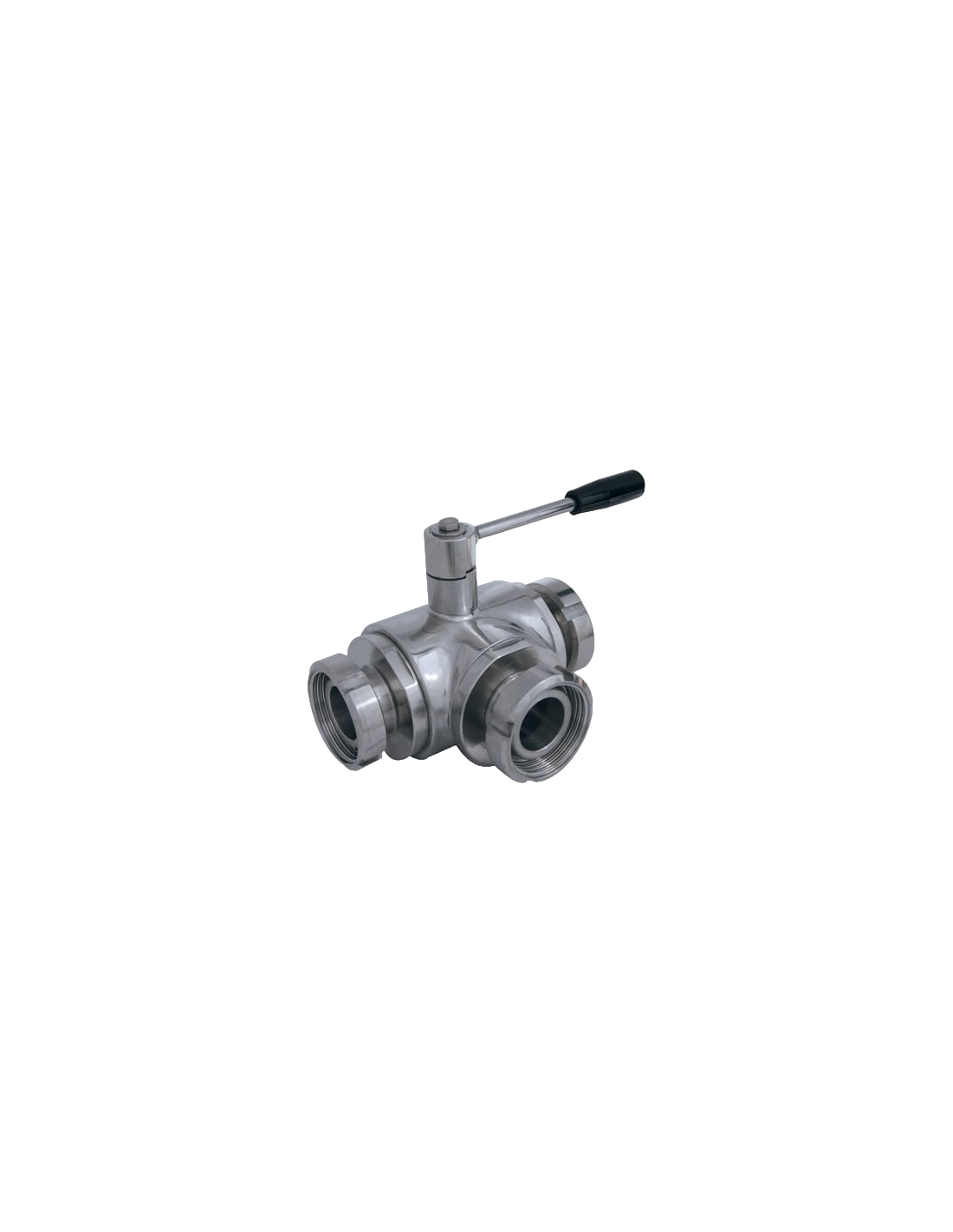

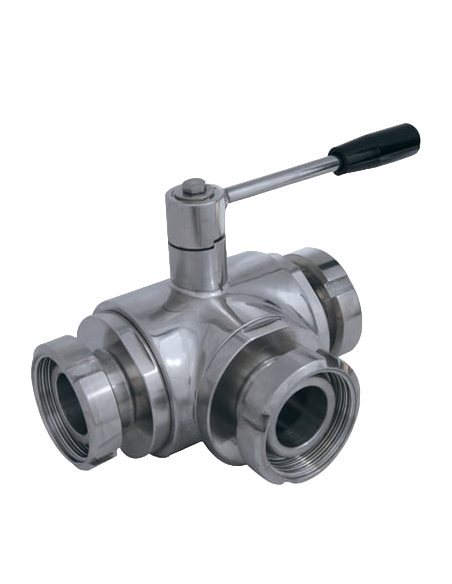

The 3 Way (T) Ball Valve by 4G Ghidini, model 300127, is a versatile valve designed for efficient fluid control. It features a "T" port configuration and is equipped with four standard seals made from Modified Virgin P.T.F.E., ensuring reliable performance across a wide temperature range of -20°C to +170°C. The valve is constructed from high-quality Aisi 304L and Aisi 316L stainless steel, offering durability and corrosion resistance. It is available in sizes ranging from DN10 to DN100 and features a polished outer finish. The valve is operated via an inox lever and connects using a DIN 11851 male/male/male configuration, providing full flow capability. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific applications, such as PTFE with glass, carbographite, or inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port

Drive: Inox lever

Connection: DIN 11851 male/male/male

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
