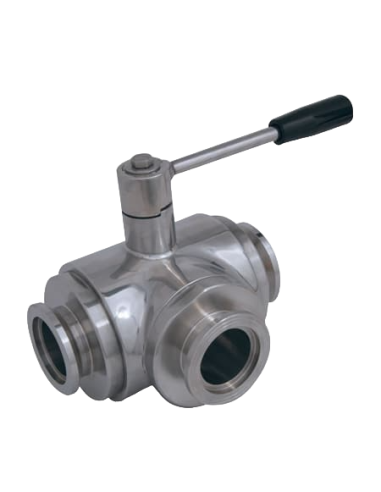

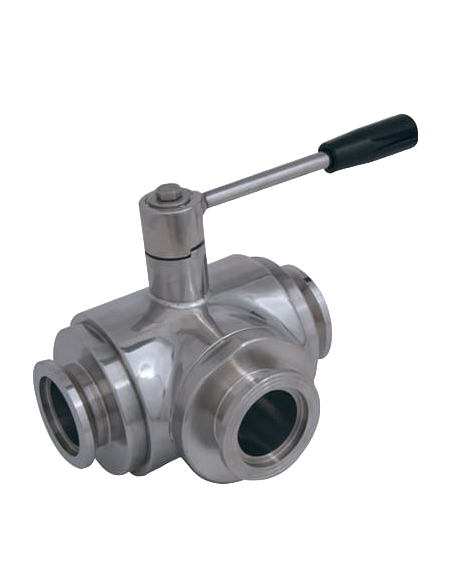

The 3 Way Ball (T) Valve by 4G Ghidini, model 300131, is a versatile valve designed for efficient fluid control. It features a "T" port configuration and is equipped with four standard seals made from Modified Virgin P.T.F.E., ensuring reliable performance across a wide temperature range of -20°C to +170°C. The valve is operated via an inox lever and connects using the GAROLLA system. Constructed from durable Aisi 304L and Aisi 316L stainless steel, it is available in sizes ranging from DN32 to DN100. The valve offers both full and reduced flow options and boasts a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance needs.
Standard (Options)
  • DIN
Connection (Options)
  • Garolla
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port

Drive: Inox lever

Connection: GAROLLA

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN32 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C +170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -30°C+200°C

UHMW High-molecular weight polyethylene -200°C+80°C
