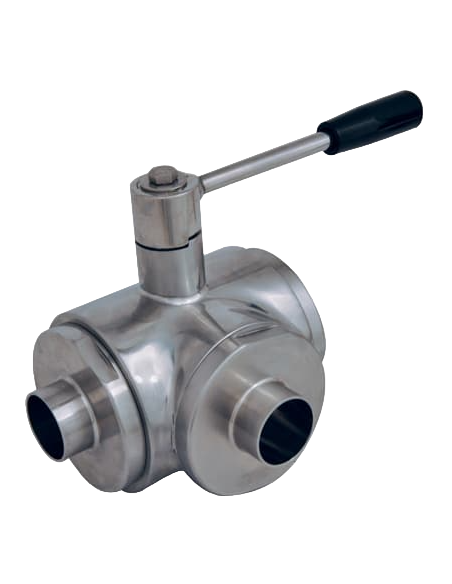

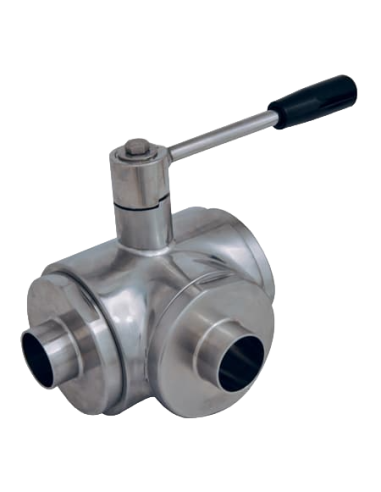

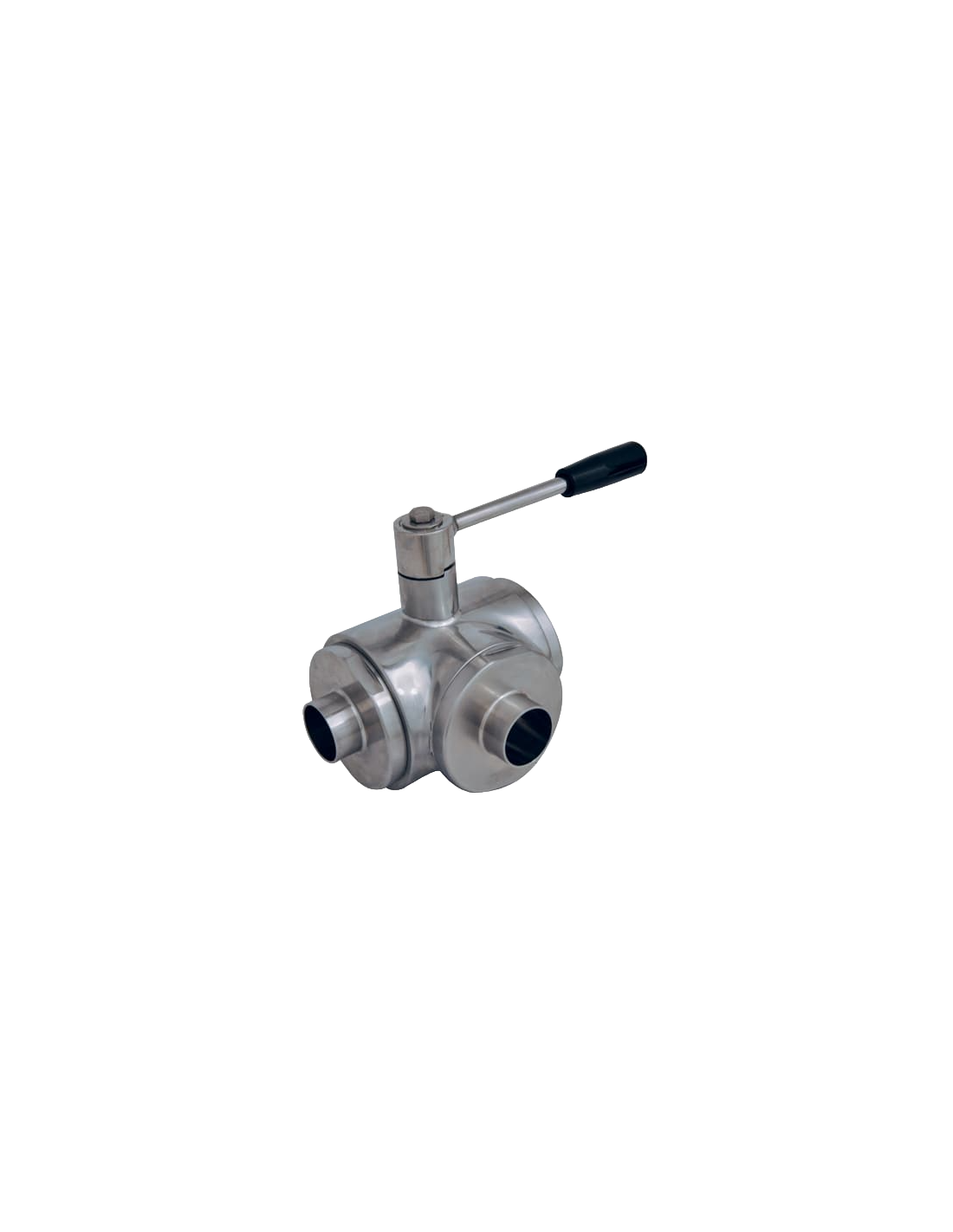

The 3 Way Ball (T) Valve by 4G Ghidini is a versatile valve designed for efficient flow control with a "T" port configuration. It features a robust construction with Aisi 316L (1.4404) stainless steel and is equipped with standard seals made from modified virgin P.T.F.E. The valve supports butt-welding connections according to BS-OD, DIN, and ISO standards, making it suitable for various industrial applications. It accommodates sizes from DN10 to DN100 and operates within a temperature range of -20°C to +170°C. The valve is polished for an enhanced outer finish and can be customized with an antistatic device for ATEX compliance. Optional seal materials include PTFE with glass, carbographite, inox, and UHMW polyethylene, offering different temperature resistances.
Standard (Options)
  • DIN
Connection (Options)
  • Butt Weld
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port

Drive: Inox lever

Connection:

  • Butt-welding in according to BS-OD (ASTM A-270)
  • Butt-welding in according to DIN 11850
  • Butt-welding in according to ISO 1127

Flow: Full

Material: Aisi 316L (1.4404)

Measure:

  • DN10 a DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
