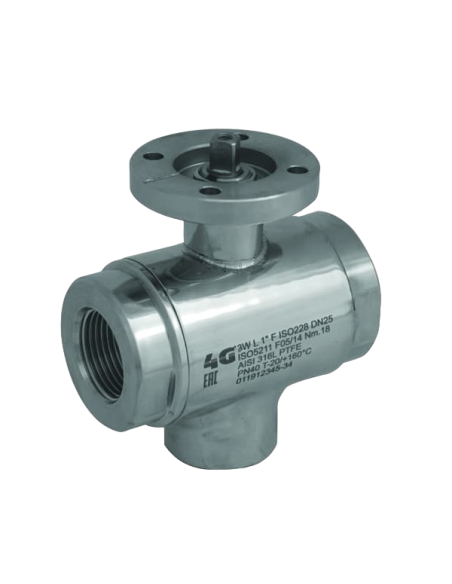

The 3 Way (L) Ball Valve - Vertical Diverting Standard Seals by 4G Ghidini is a versatile valve designed for efficient flow control. It features a three-way vertical diverting mechanism with an "L" port configuration and is equipped with two standard seals. The valve is compatible with ISO 5211 and DIN 3337 flanges for actuator drive and has ISO 228 female threads for connection. It offers full flow capacity and is constructed from durable AISI 316L stainless steel, available in sizes ranging from 1/4” to 2”. The valve is designed to operate within a temperature range of -20°C to +170°C and has a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way VERTICAL diverting ball valve 2 seals with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: ISO 228 female/female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 2”

Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
