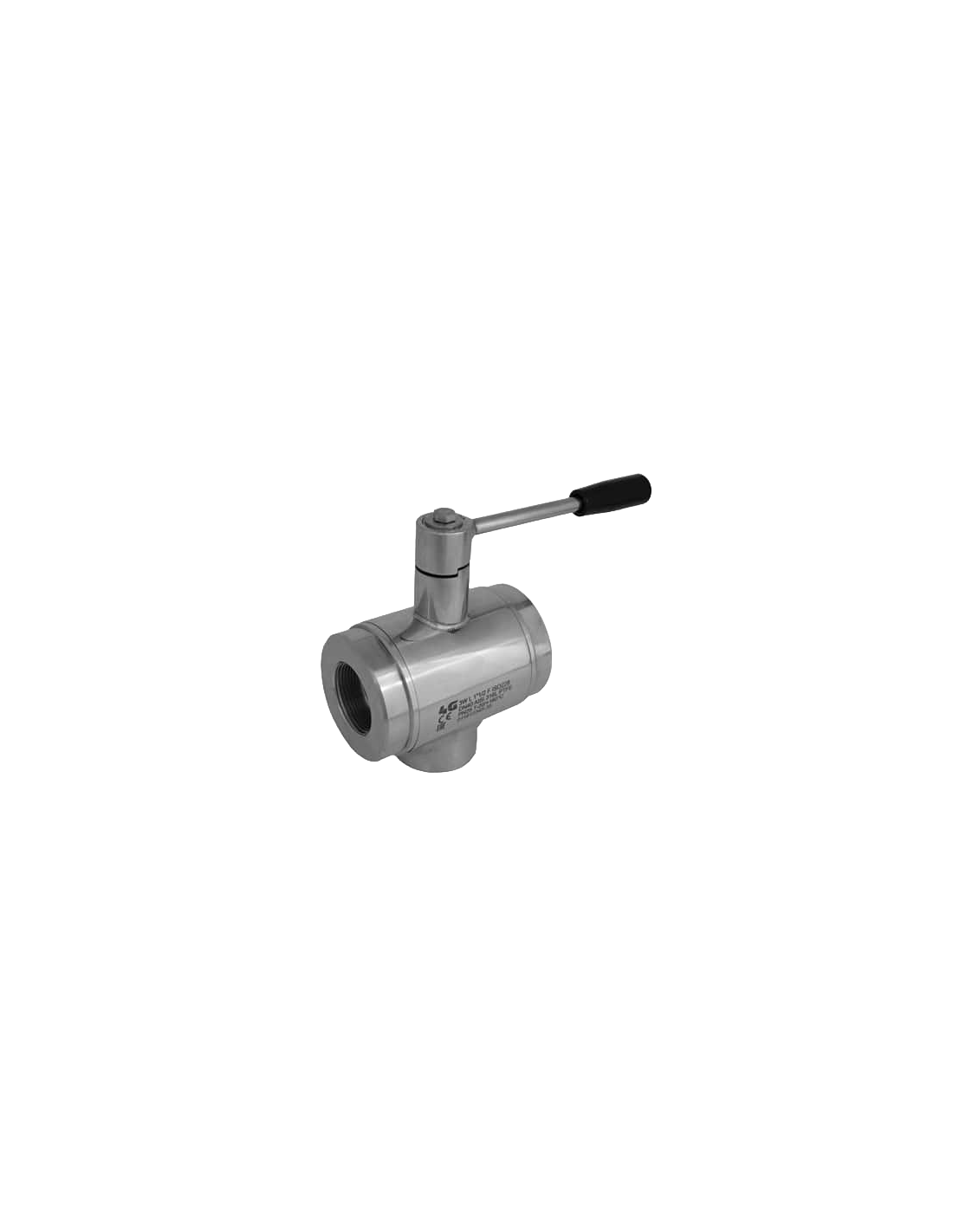

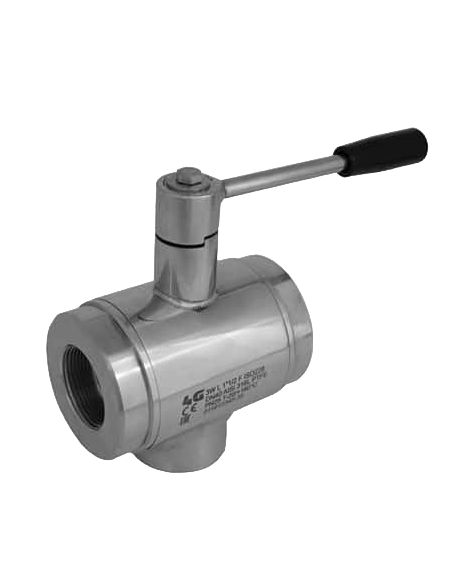

The 3 Way (L) Ball Valve - VERTICAL DIVERTING STANDARD SEALS - ISO 228 F - 340101 by 4G Ghidini is a versatile valve designed for efficient flow control. It features a three-way vertical diverting mechanism with an "L" port configuration, operated by a durable stainless steel lever. The valve is constructed from high-quality AISI 316L stainless steel, ensuring robust performance and corrosion resistance. It is available in sizes ranging from 1/4” to 2” and features ISO 228 female threading for easy installation. The valve supports full flow and operates within a temperature range of -20°C to +170°C, with options for modified virgin PTFE seals. The polished outer finish enhances its durability and aesthetic appeal. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way VERTICAL diverting ball valve 2 seals with “L” port

Drive: Inox lever

Connection: ISO 228 female/female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 2”

Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
