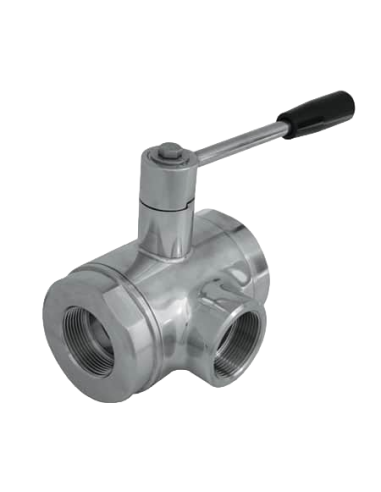

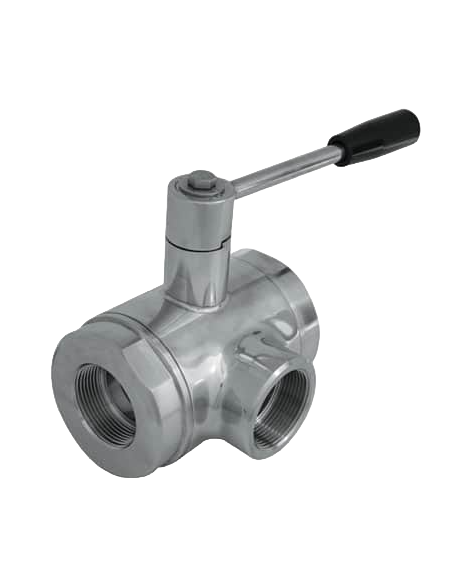

The 3 Way (L) Ball Valve - DIVERTING STANDARD SEALS - ISO 228 F - 350101 by 4G Ghidini is a versatile valve designed for diverting applications. It features a three-way configuration with an "L" port and is operated using an inox lever. The valve is constructed from high-quality Aisi 316L (1.4404) stainless steel, ensuring durability and resistance to corrosion. It offers full flow and is available in sizes ranging from 1/4” to 4”. The valve has a polished outer finish and uses modified virgin P.T.F.E. for its seals, suitable for operating temperatures between -20°C and +170°C. The connections are ISO 228 female threads. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way diverting ball valve 2 seals with “L” port

Drive: Inox lever

Connection: ISO 228 female/female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
