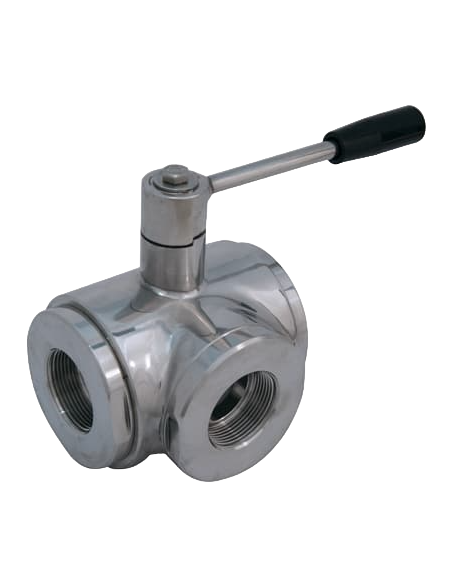

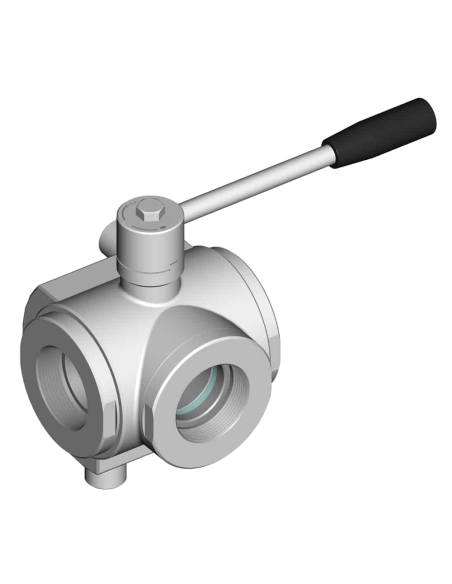

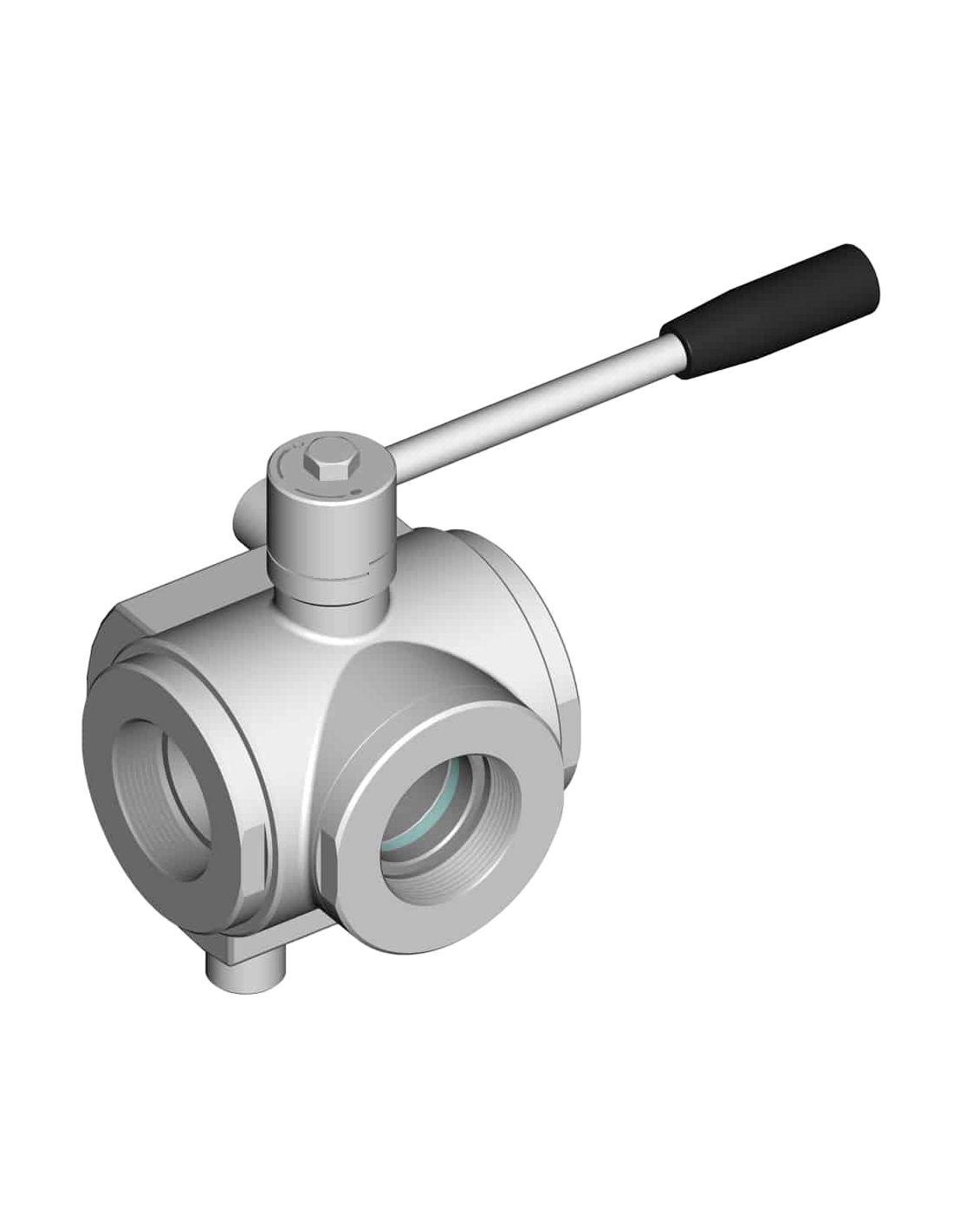

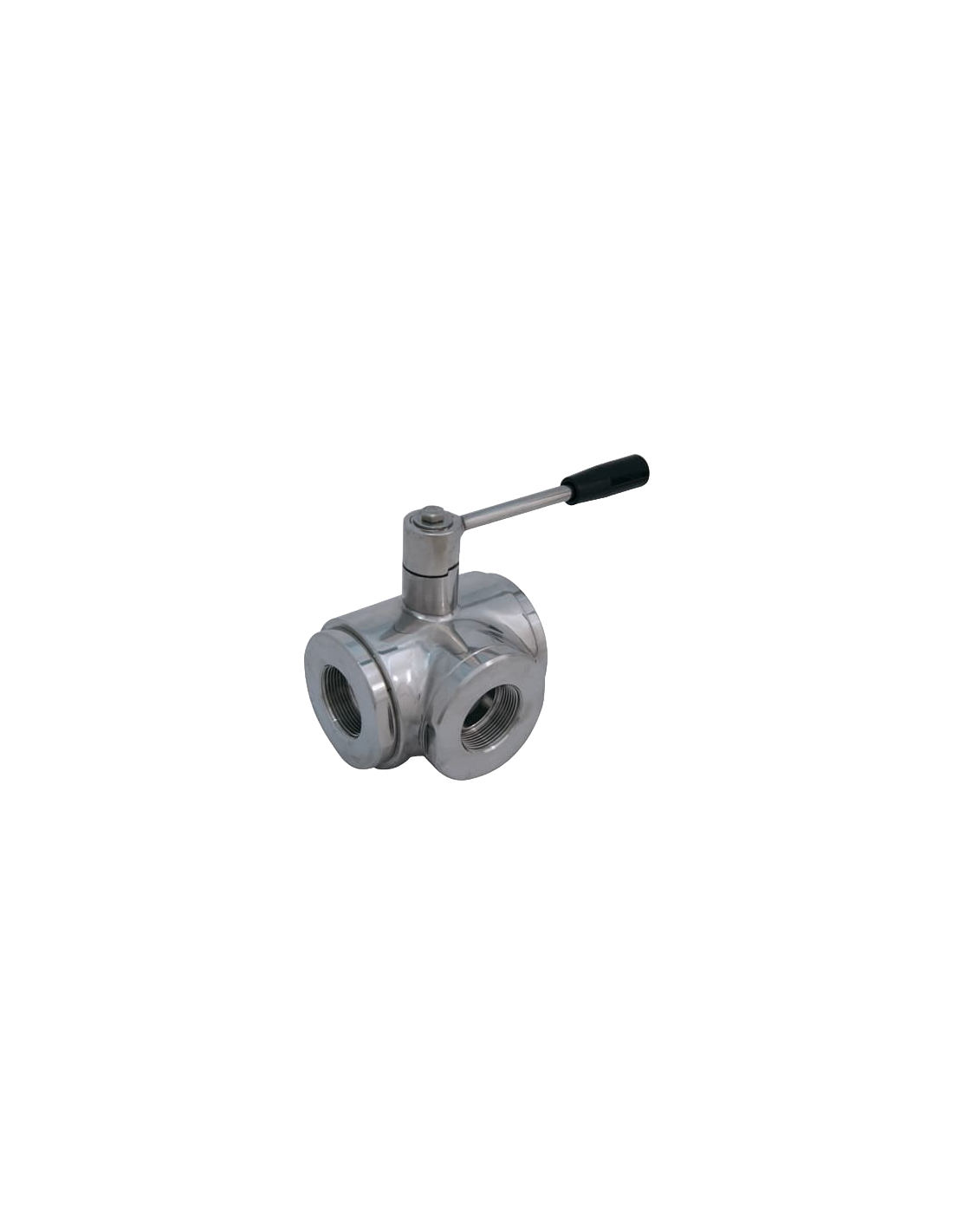

The 3 Way (L) Ball Valve by 4G Ghidini is a versatile valve designed for efficient fluid control. It features a three-way configuration with an "L" port and is equipped with four standard seals. The valve is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, ensuring durability and resistance to corrosion. It is available in sizes ranging from 1/4” to 4” and has a full flow capacity. The valve is operated using an inox lever and connects via ISO 228 female threads. The seals are made from modified virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve's outer finish is polished for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “L” port / THREE-way ball valve 4 seals with “L” port with HEATING JACKET

Drive: Inox lever

Connection: ISO 228 female/female/female thread

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
