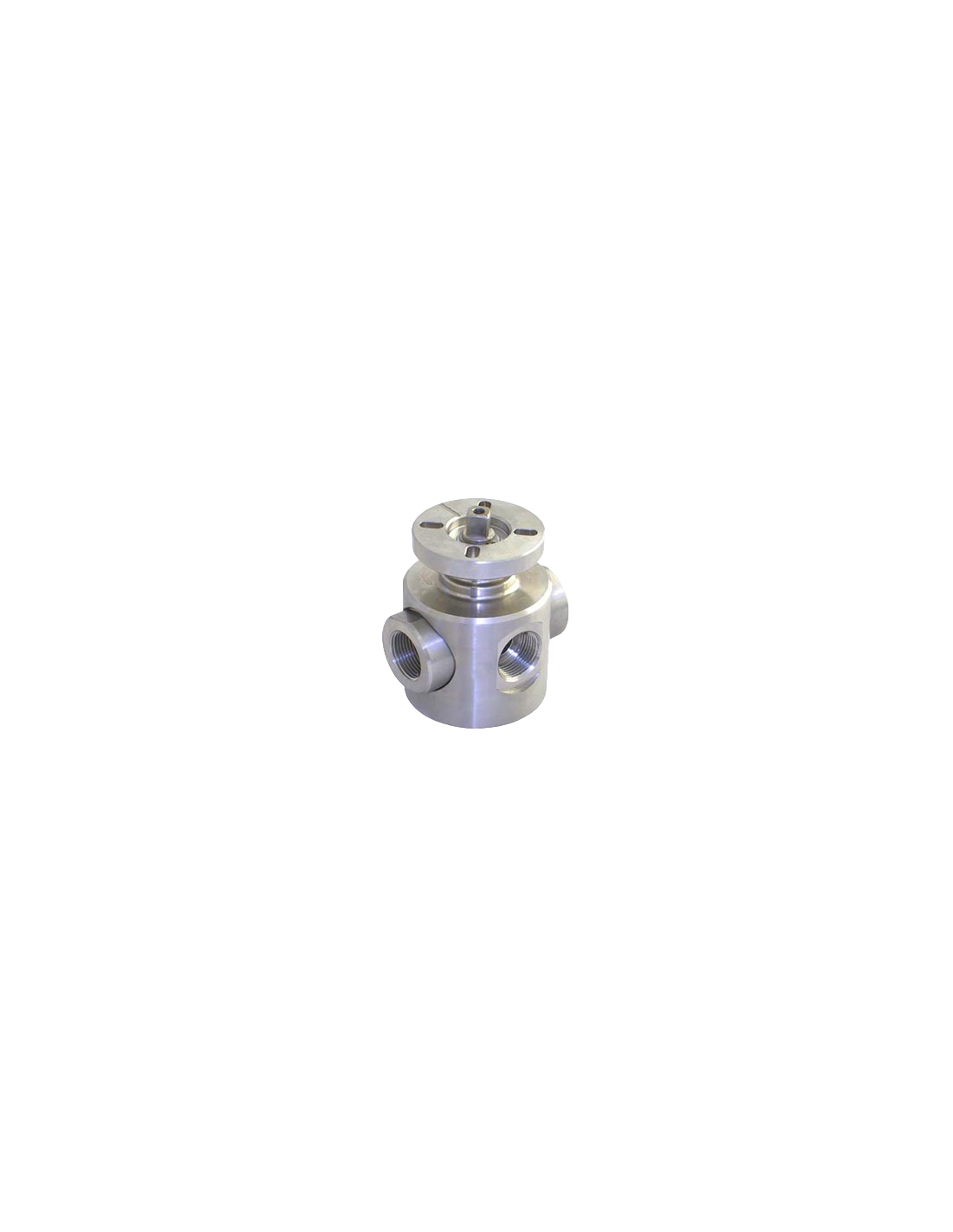

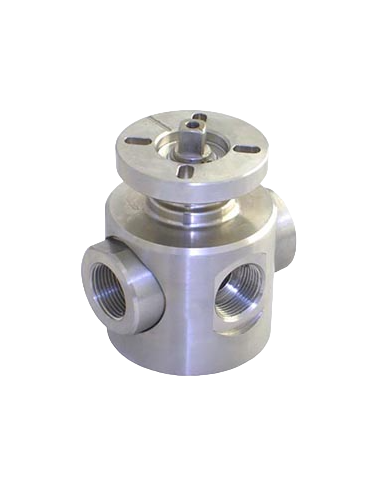

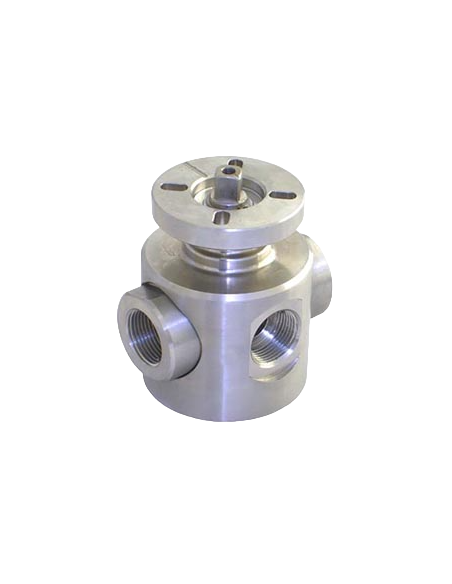

The 3 Way (L) Ball Valve - HIGH PRESSURE PN250/PN400 - 283004 by 4G Ghidini is a robust and versatile valve designed for high-pressure applications. It features an ATEX II 2 G-D T4 certification with an "L" port configuration, making it suitable for use in potentially explosive environments. The valve is equipped with an ISO 5211 – DIN 3337 flange for actuator mounting and has NPT female threads for easy connection. Constructed from durable Aisi 316L (1.4404) stainless steel, it offers full flow capabilities and is available in sizes ranging from 1/4″ to 1″. The valve includes seals made from INOX filled PTFE and DEVLON, supporting operating temperatures from -20°C to +200°C. It comes with a turned outer finish and includes screws for actuator mounting. Optional features include M.O.C.A. CE 1935/2004 compliance, a manual lever, and Delrin POM seals for temperatures between -20°C and +125°C.
Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 250
Seat (Options)
  • PTFE + inox

Datasheet and documents

Description

THREE-way ball valve ATEX II 2 G-D T4 with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: NPT female/female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4″ to 1″

Seals:

  • INOX filled PTFE
  • DEVLON

Operating temperature:

  • -20°C+200°C
  • -20°C+125°C

Outer finish: Turned

Screws for mounting actuator included

On request:

M.O.C.A. CE 1935/2004

•MANUAL with LEVER

• Seals made of:

Delrin POM -20°+125°C
