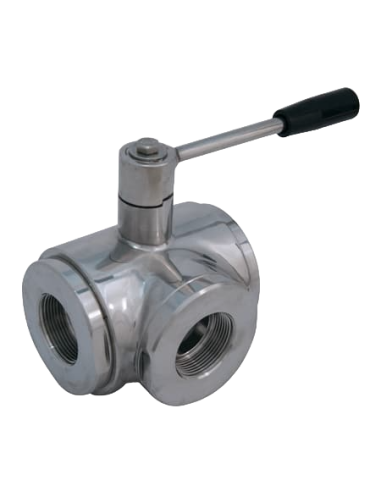

The 3 Way (L) Ball Valve by 4G Ghidini, model 310101, is a versatile valve designed for efficient flow control with a reduced flow capacity. It features an "L" port configuration and is equipped with four seals made from Modified Virgin P.T.F.E., ensuring reliable performance across a wide temperature range of -20°C to +170°C. The valve is constructed from durable Aisi 316L (1.4404) stainless steel and has a polished outer finish. It is operated via an inox lever and connects using ISO 228 female threads, available in sizes from 1/2” to 2”1/2. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

REDUCED THREE-way ball valve 4 seals with “L” port

Drive: Inox lever

Connection: ISO 228 female/female/female thread

Flow: Reduced

Material: Aisi 316L (1.4404)

Measure: from 1/2” to 2”1/2

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C +170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
