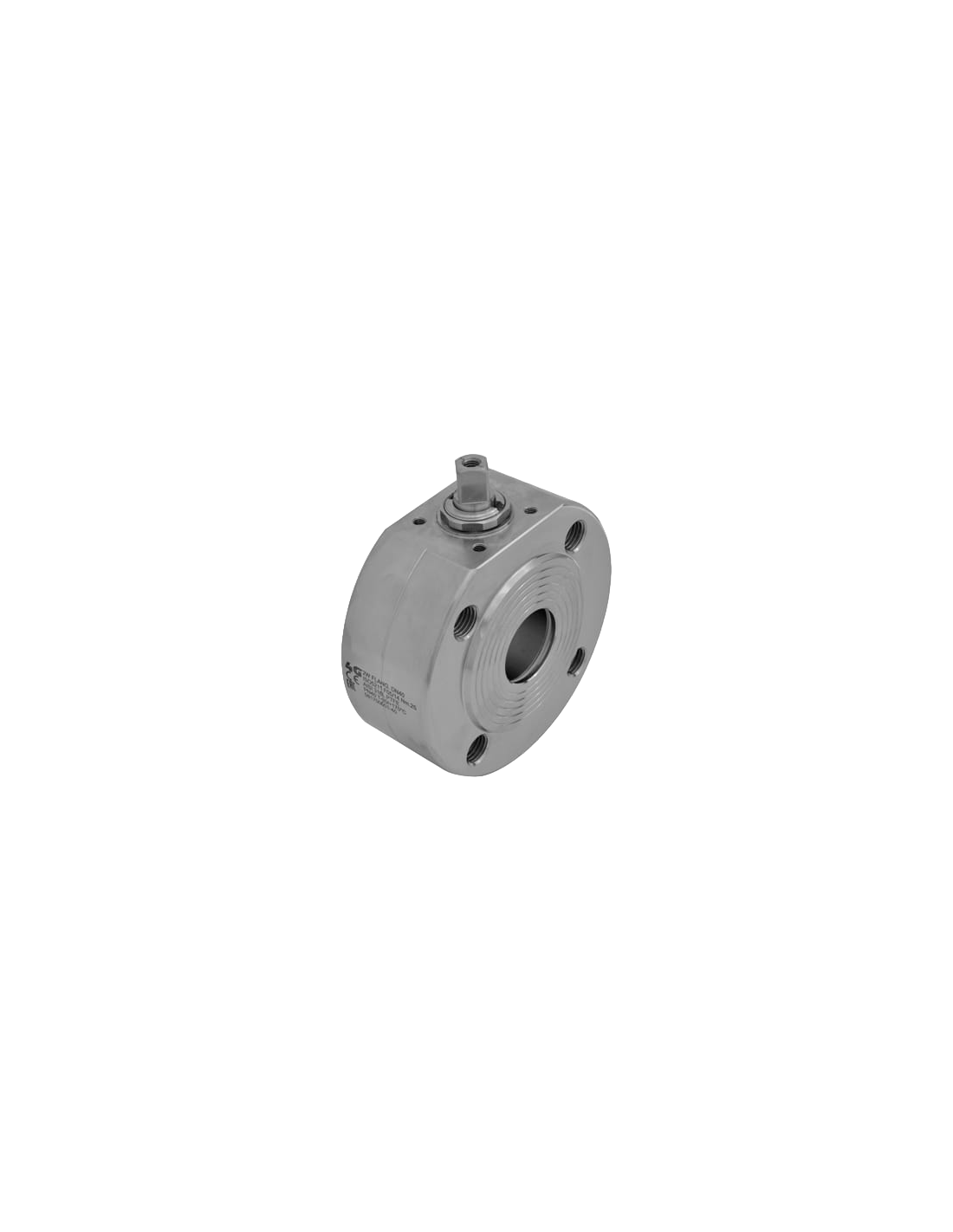

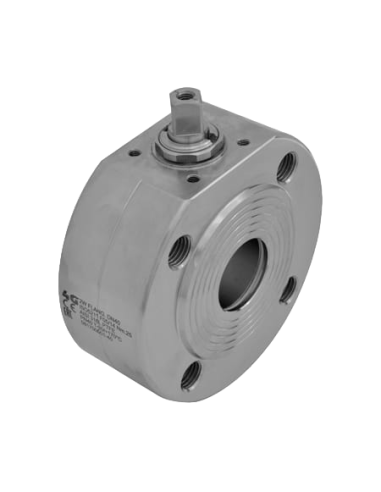

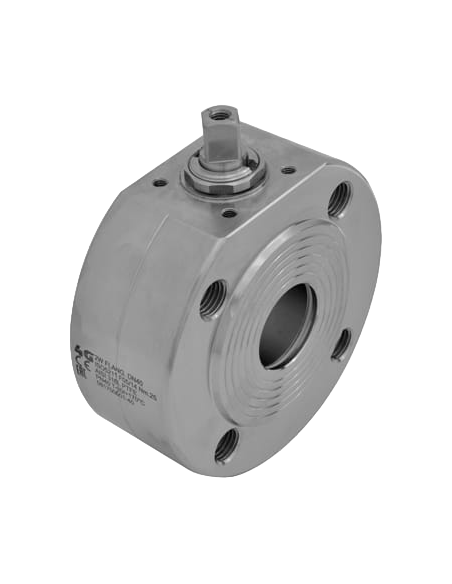

The Ball Valve STANDARD SEALS THREADED HOLES FOR UNI EN 1092-1 - 413050A/E by 4G Ghidini is a versatile two-way valve featuring a flat body design with a contained ball. It is available with or without a heating jacket. Designed for full flow, it is constructed from durable Aisi 316L (1.4404) stainless steel and accommodates sizes from DN15 to DN100. The valve is equipped with an ISO 5211 flange for actuator drive and has threaded holes compatible with UNI EN 1092-1 flanges PN 10-40. It operates within a temperature range of -20°C to +170°C and includes an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db). Optional mounting kits or levers are required for installation. Custom seal options are available upon request, including PTFE with glass, carbographite, or inox, and UHMW polyethylene, each offering different temperature tolerances. Additionally, the valve can be requested with M.O.C.A. CE 1935/2004 certification.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

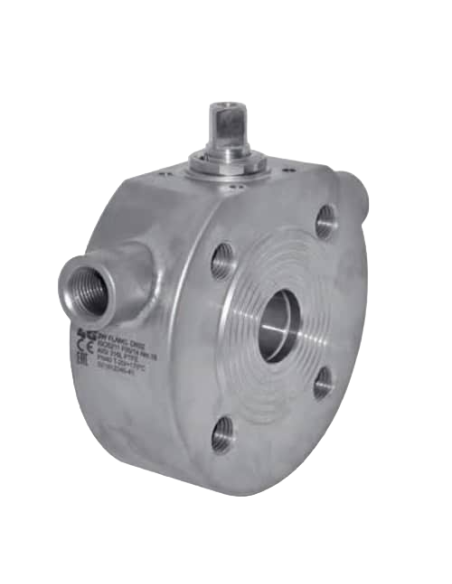

TWO-way ball valve, FLAT BODY with BALL CONTAINED from bar / TWO-way ball valve, FLAT BODY with CONTAINED BALL AND HEATING JACKET from bar

Drive: ISO 5211 flange for actuator

Connection:

  • Threaded holes for UNI EN 1092-1
  • Threaded holes for UNI EN 1092-1 for flanges PN 10-40

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN15 to DN100

Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

* MOUNTING KIT NEEDED Art. 747540 OR LEVER Art. 9354112

On request:

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
