The Ball Valve INTEGRAL SEALS THREADED HOLES FOR UNI EN 1092-1 - 423050A/E by 4G Ghidini is a two-way ball valve featuring a flat body design with a contained ball and integral seal. It is available with or without a heating jacket. The valve is driven by an ISO 5211 flange for actuator compatibility and connects via threaded holes for UNI EN 1092-1 flanges, suitable for PN 10-40 pressure ratings. It offers full flow and is constructed from AISI 316L (1.4404) stainless steel, with sizes ranging from DN15 to DN100. The seals are made from virgin P.T.F.E., and the valve operates within a temperature range of -20°C to +160°C. It includes an antistatic device compliant with ATEX standards, classified as II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db. A mounting kit (Art. 747540) or lever (Art. 9354112) is required for installation. Optional compliance with M.O.C.A. CE 1935/2004 is available upon request.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

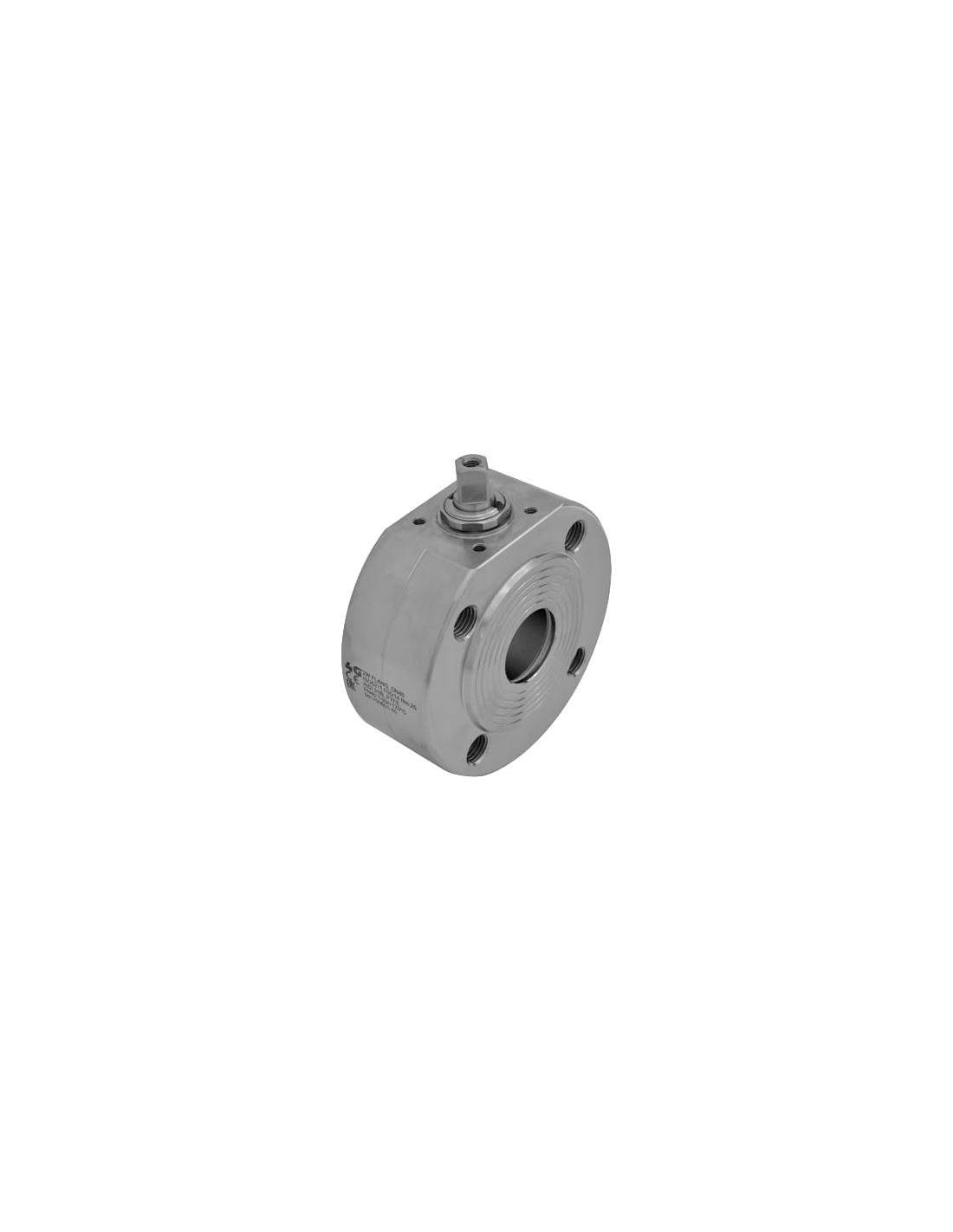

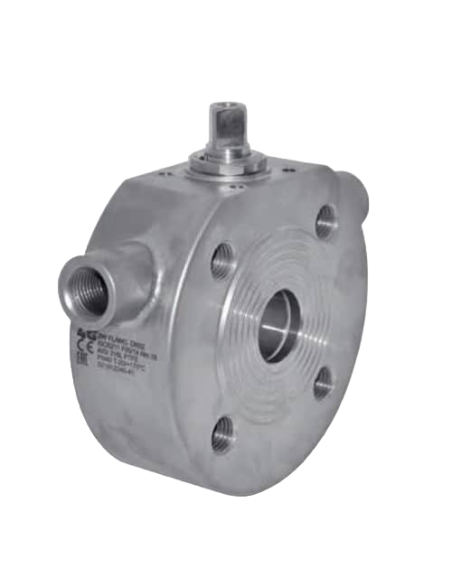

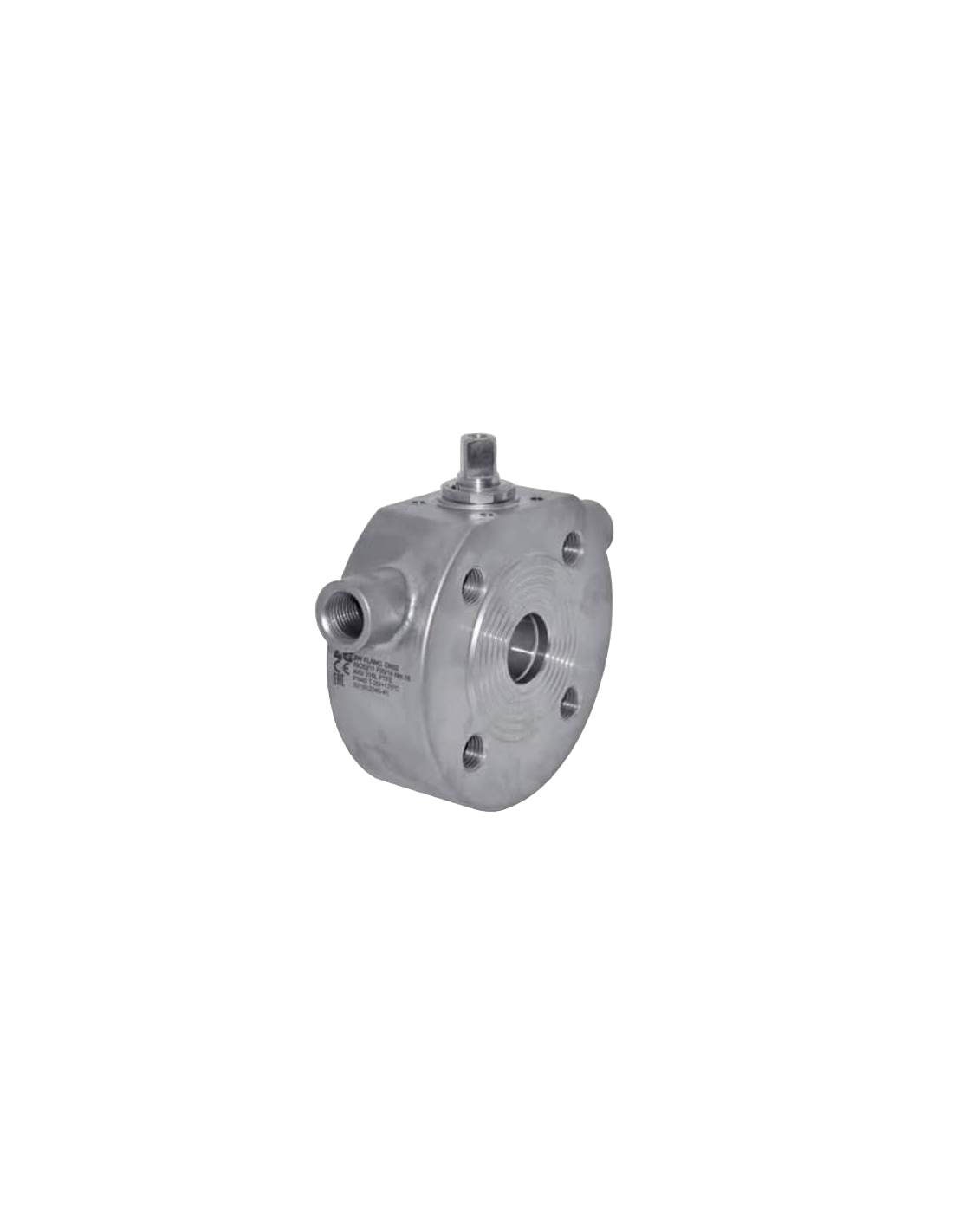

TWO-way ball valve FLAT BODY with CONTAINED BALL from bar and INTEGRAL SEAL / TWO-way ball valve FLAT BODY with CONTAINED BALL and HEATING JACKET from bar and INTEGRAL SEAL

Drive:ISO 5211 flange for actuator

Connection: Threaded holes for UNI EN 1092-1 for flanges PN 10-40

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN15 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

* MOUNTING KIT NEEDED Art. 747540 OR LEVER Art. 9354112

On request:

M.O.C.A. CE 1935/2004
