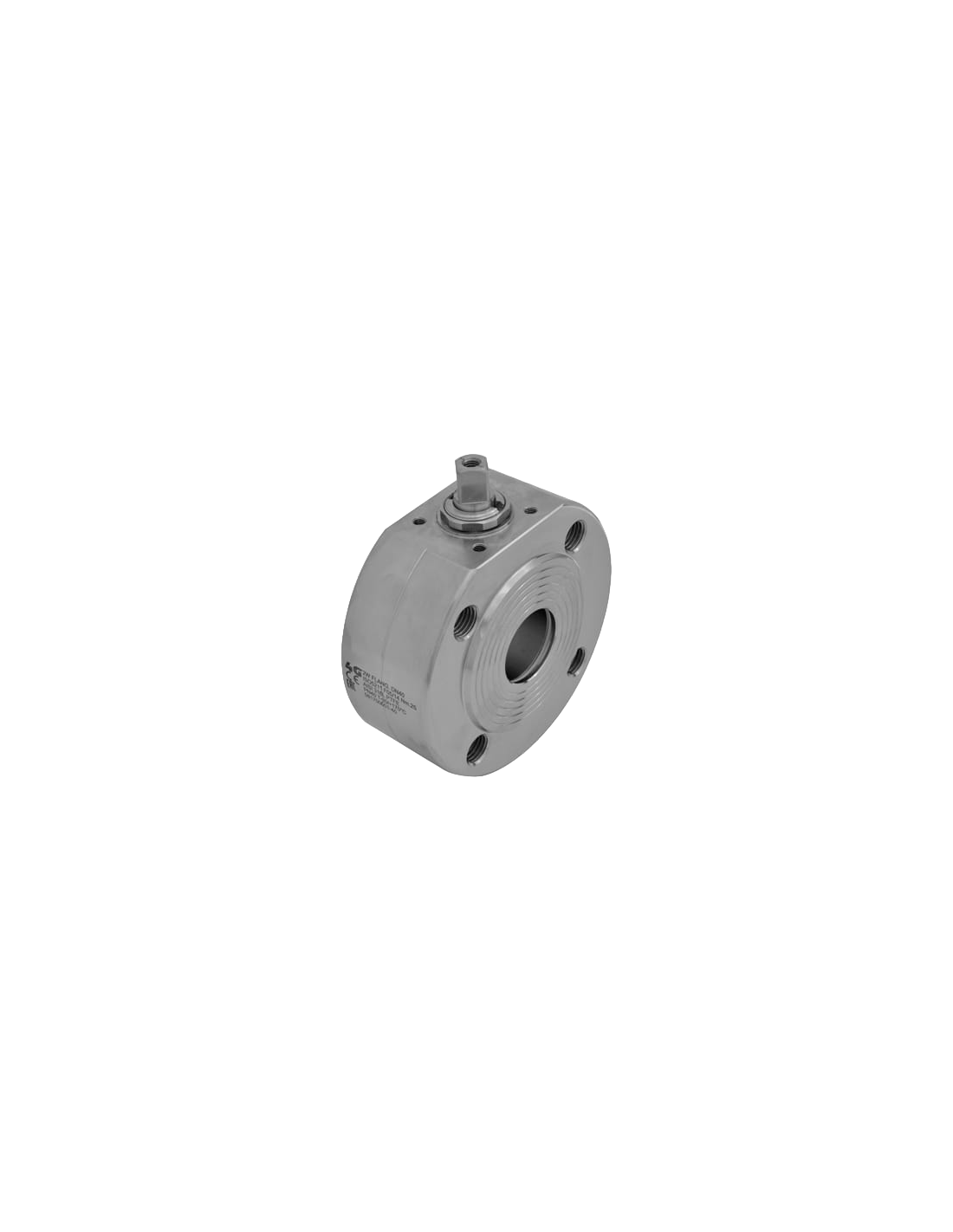

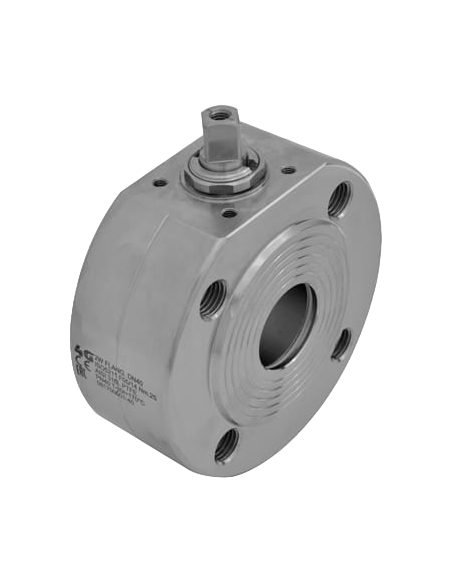

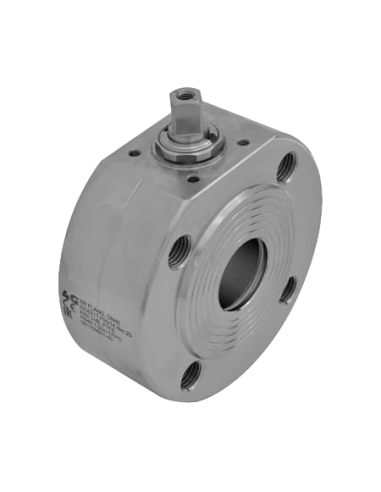

The Ball Valve STANDARD SEALS CLASS 150 - 403055 by 4G Ghidini is a two-way ball valve featuring a flat body machined from bar stock. It is designed for full flow and is constructed from high-quality materials, specifically Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel. The valve is equipped with an ISO 5211 flange for actuator drive and threaded holes compatible with UNI EN 1092-1 connections. It accommodates sizes ranging from DN15 to DN200 and operates within a temperature range of -20°C to +170°C. The valve utilizes modified virgin P.T.F.E. seals, with optional seals available in various materials for different temperature ranges. An antistatic device compliant with ATEX standards is available upon request, as well as M.O.C.A. certification according to CE 1935/2004. A mounting kit (Art. 747540) is required for installation.
Standard (Options)
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • 150 lbs

Datasheet and documents

Description

TWO-way ball valve, FLAT BODY from bar machined

Drive: ISO 5211 flange for actuator

Connection: threaded holes for UNI EN 1092-1

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN15 to DN200

Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

* MOUNTING KIT NEEDED Art. 747540

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
