The Ball Valve STANDARD SEALS THREADED HOLES FOR UNI EN 1092-1 - 403050 by 4G Ghidini is a versatile two-way valve featuring a flat body design, available with or without a heating jacket. It is crafted from high-quality Aisi 304L and Aisi 316L stainless steel, ensuring durability and resistance to corrosion. The valve is equipped with an ISO 5211 flange for actuator drive and threaded holes compatible with UNI EN 1092-1 connections, supporting full flow. It accommodates sizes ranging from DN15 to DN200, with operating temperatures between -20°C and +170°C. The valve utilizes modified virgin PTFE seals, with optional materials available for specific applications, including PTFE with glass, carbographite, or inox, and UHMW polyethylene. An antistatic device compliant with ATEX standards and M.O.C.A. CE 1935/2004 certification can be requested. A mounting kit (Art. 747540) is required for installation.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

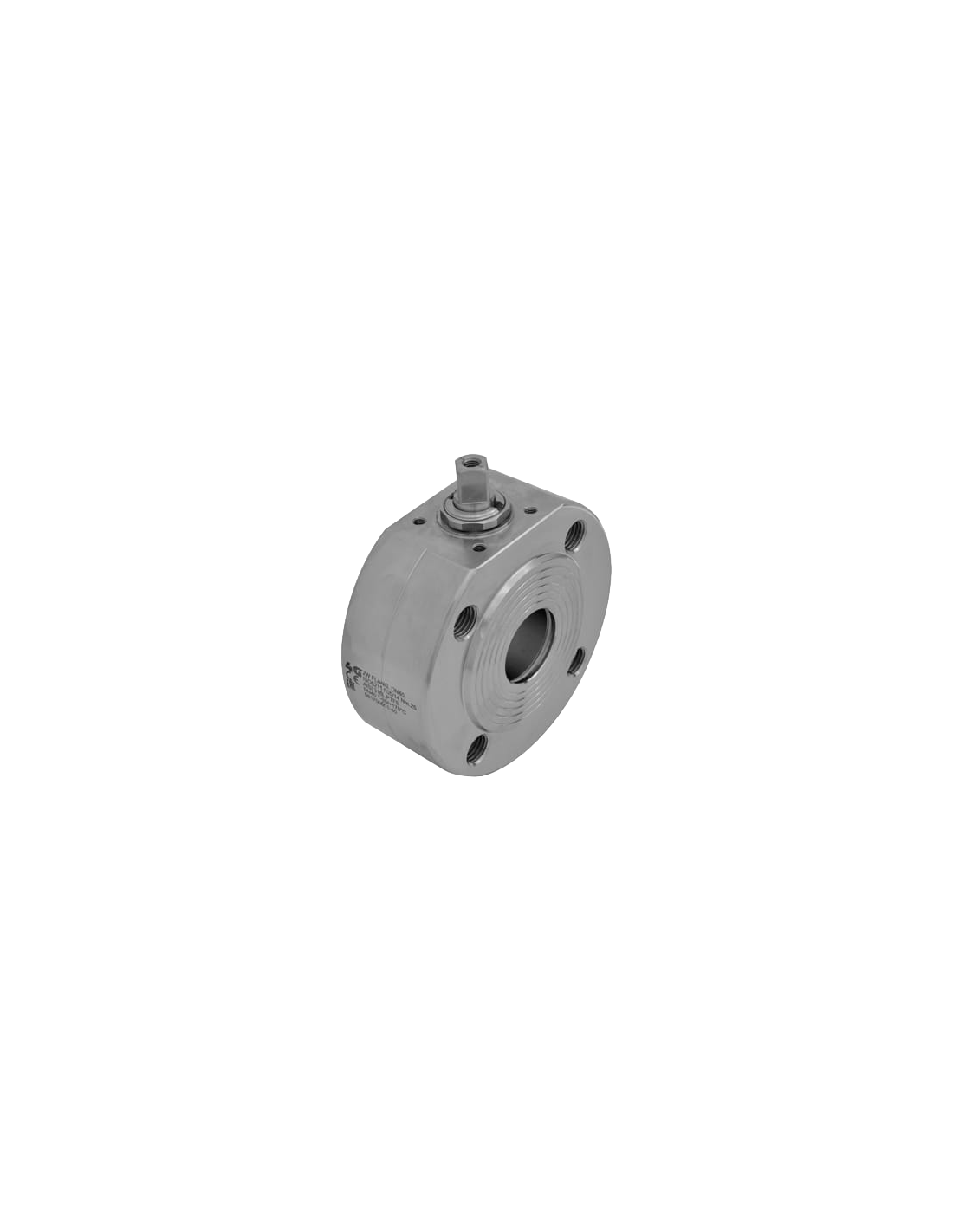

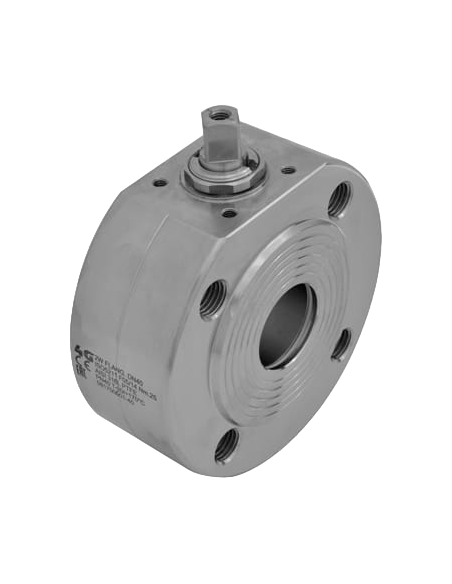

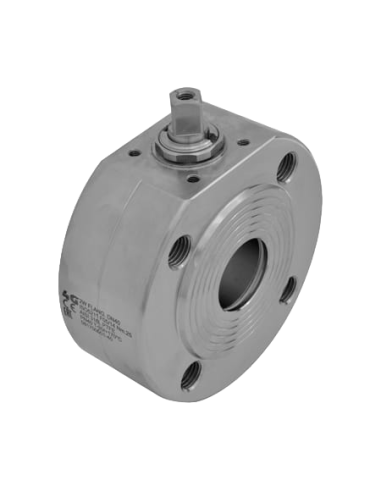

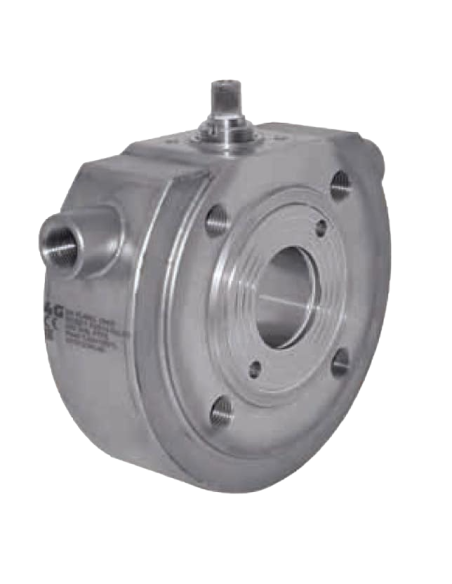

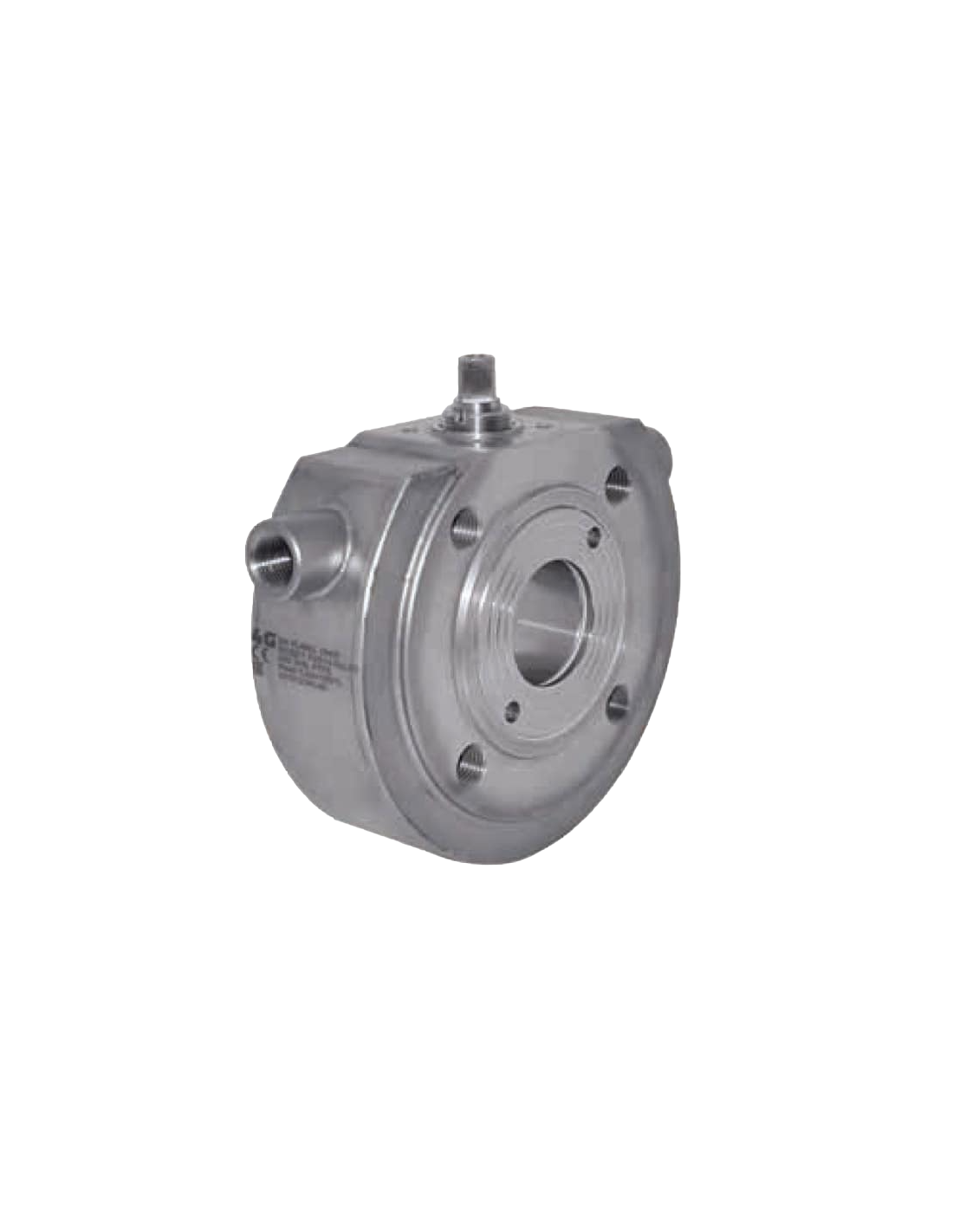

TWO-way ball valve, FLAT BODY from bar machined / TWO-way ball valve, Flat Body with HEATING JACKET from bar machined

Drive: ISO 5211 flange for actuator

Connection: threaded holes for UNI EN 1092-1

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from DN15 to DN200
  • from DN15 to DN100

Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

* MOUNTING KIT NEEDED Art. 747540

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
