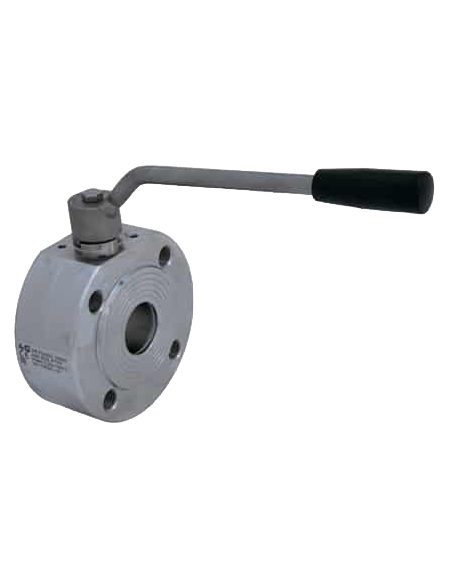

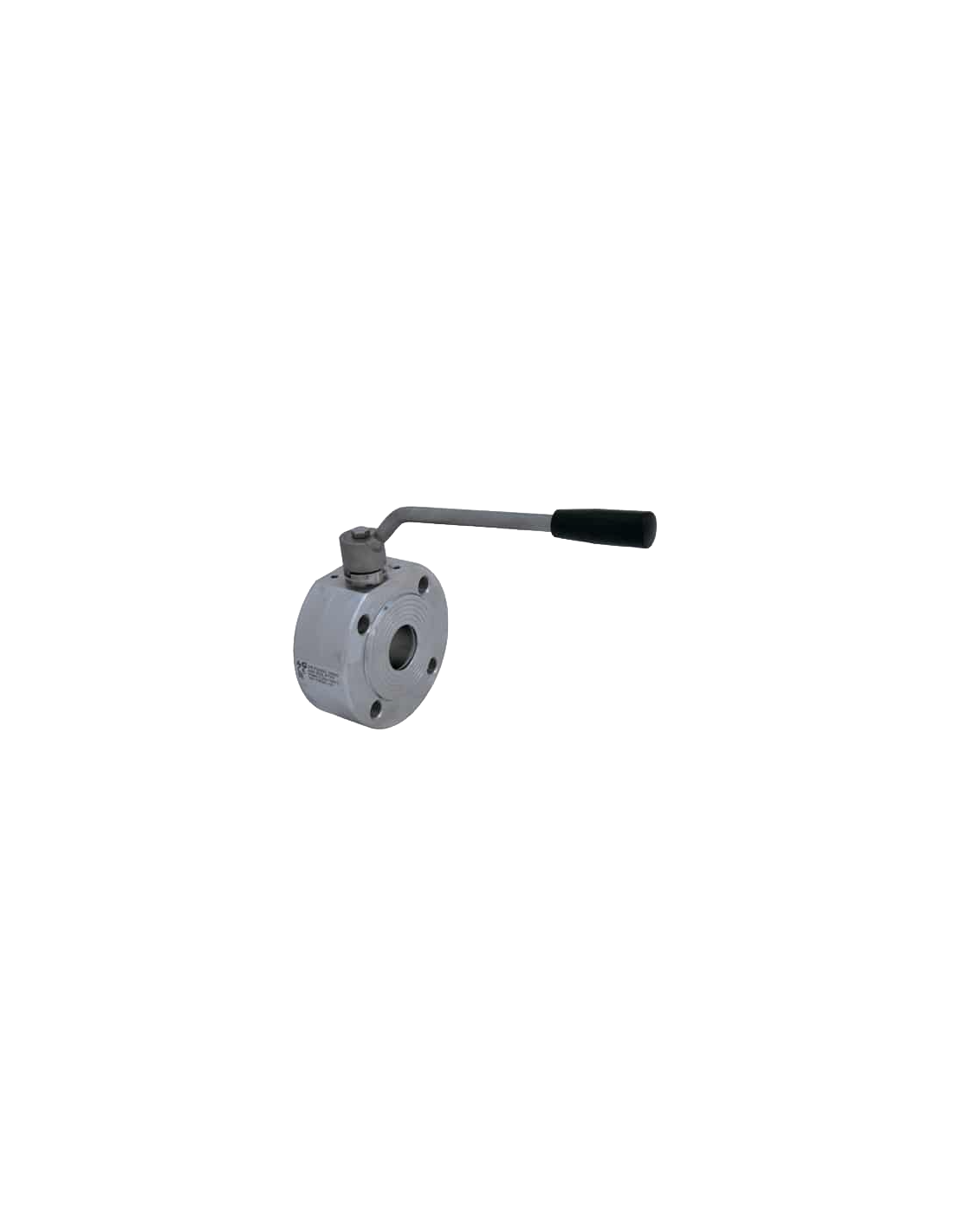

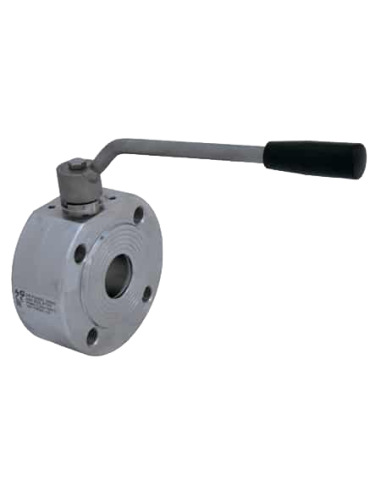

The Ball Valve STANDARD SEALS CLASS 150 - 400155 by 4G Ghidini is a two-way ball valve featuring a flat body with a heating jacket, crafted from bar machined materials. It is operated using an inox lever and connects via threaded holes compliant with UNI EN 1092-1 standards. The valve offers full flow and is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel. Available in sizes ranging from DN15 to DN100, it is equipped with modified virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +170°C. Optional features include an antistatic device with ATEX certification, M.O.C.A. compliance with CE 1935/2004, and alternative seal materials such as PTFE with glass, carbographite, inox, or UHMW polyethylene, each offering different temperature resistances.
Standard (Options)
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • 150 lbs

Datasheet and documents

Description

TWO-way ball valve, FLAT BODY with HEATING JACKET from bar machined

Drive: Inox lever

Connection: Threaded holes for UNI EN 1092-1

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN15 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
