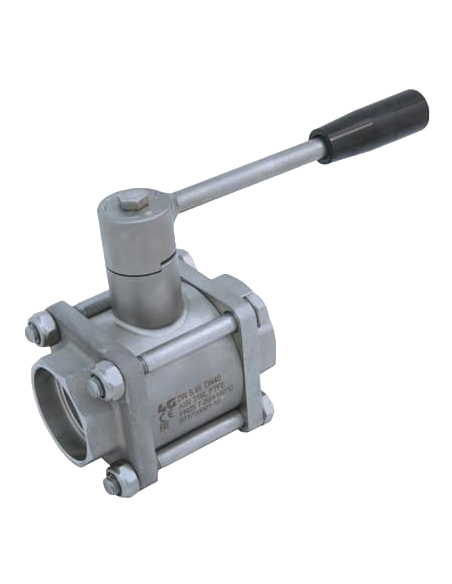

The Ball Valve STANDARD SEALS - SOCKET WELDING - 500140 by 4G Ghidini is a robust two-way, three-piece ball valve designed for efficient fluid control. It features a durable Inox lever for operation and socket-welding connections for secure installation. The valve offers full flow capacity and is constructed from high-quality Aisi 316L (1.4404) stainless steel, ensuring excellent corrosion resistance. Available in sizes ranging from DN8 to DN100, it is equipped with virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +160°C. The valve's exterior is sandblasted for a refined finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for enhanced temperature resistance, such as PTFE with glass, carbographite, or inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • Socket Weld
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces

Drive: Inox lever

Connection: Socket-welding

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN8 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Sandblasted (NOT CASTED, FROM BAR)

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
