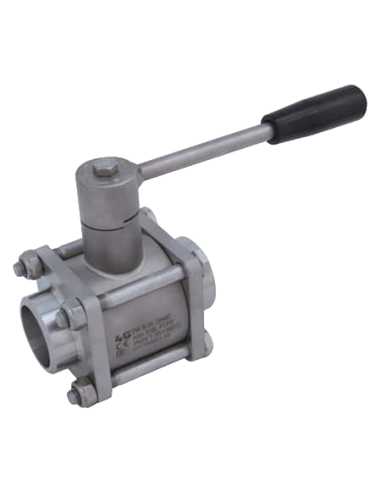

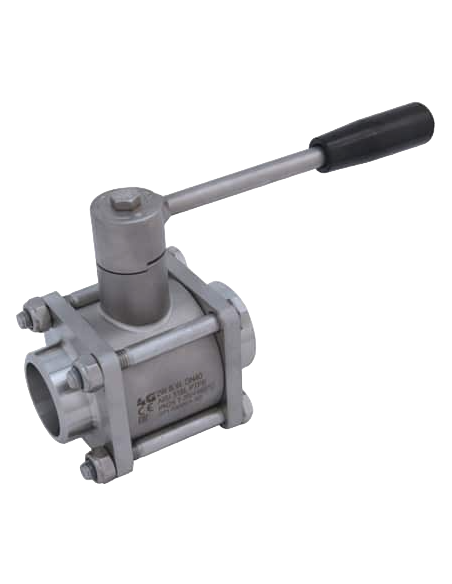

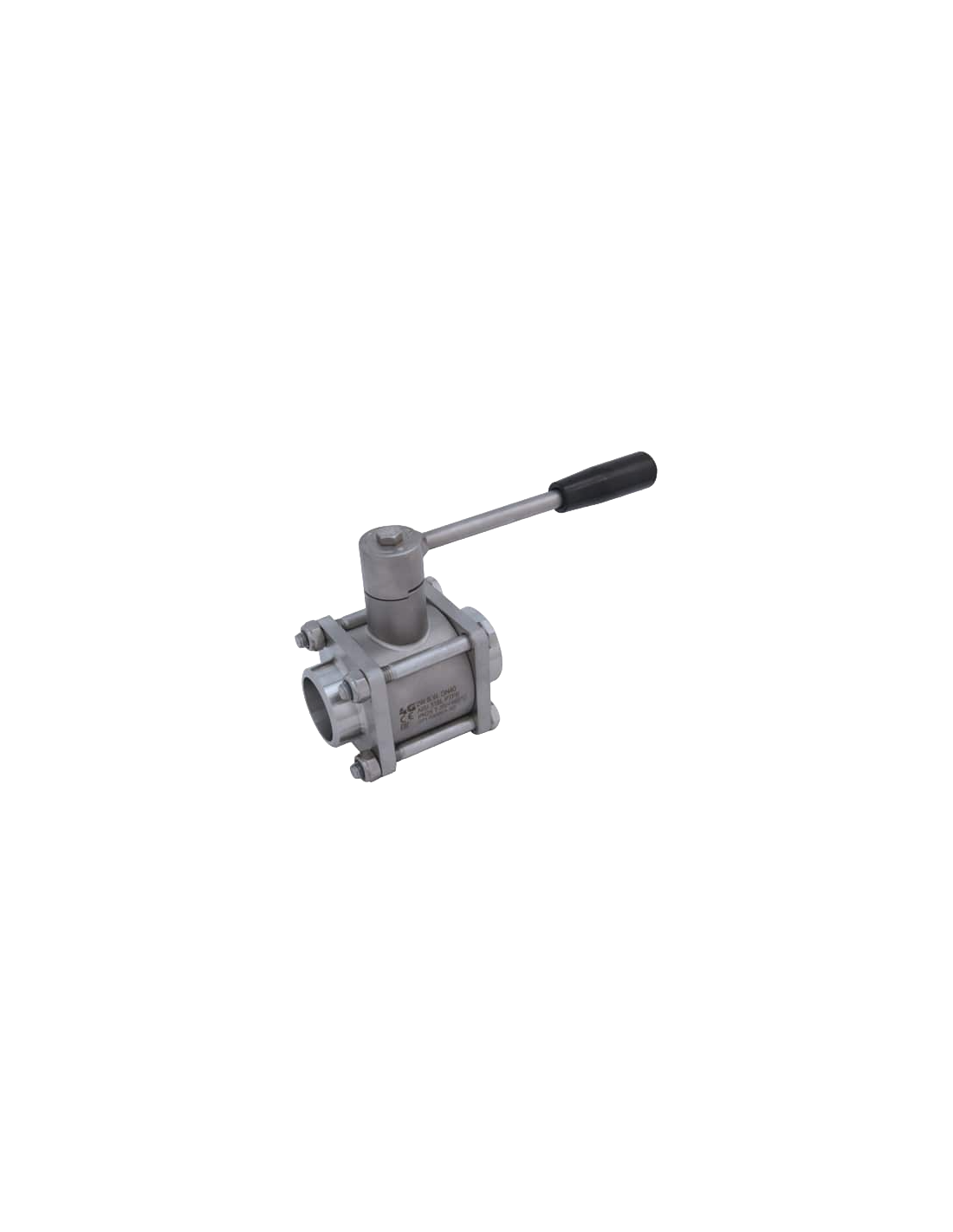

The Ball Valve STANDARD SEALS - SCH80 BUTT WELDING - 500142 by 4G Ghidini is a robust two-way, three-piece ball valve designed for efficient flow control. It features an inox lever for drive and is connected via butt-welding. The valve is constructed from durable Aisi 316L (1.4404) stainless steel, ensuring longevity and resistance to corrosion. It offers full flow capabilities and is available in sizes ranging from DN8 to DN100. The standard seals are made from virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve's outer finish is sandblasted for a refined appearance. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges and applications, such as PTFE with glass, carbographite, inox, and UHMW polyethylene. The valve also meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • Butt Weld
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces

Drive: Inox lever

Connection: Butt-welding

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN8 to DN100

Seals: virgin P.T.F.E.

Operating temperature: -20°C +170°C

Outer finish: Sandblasted

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
