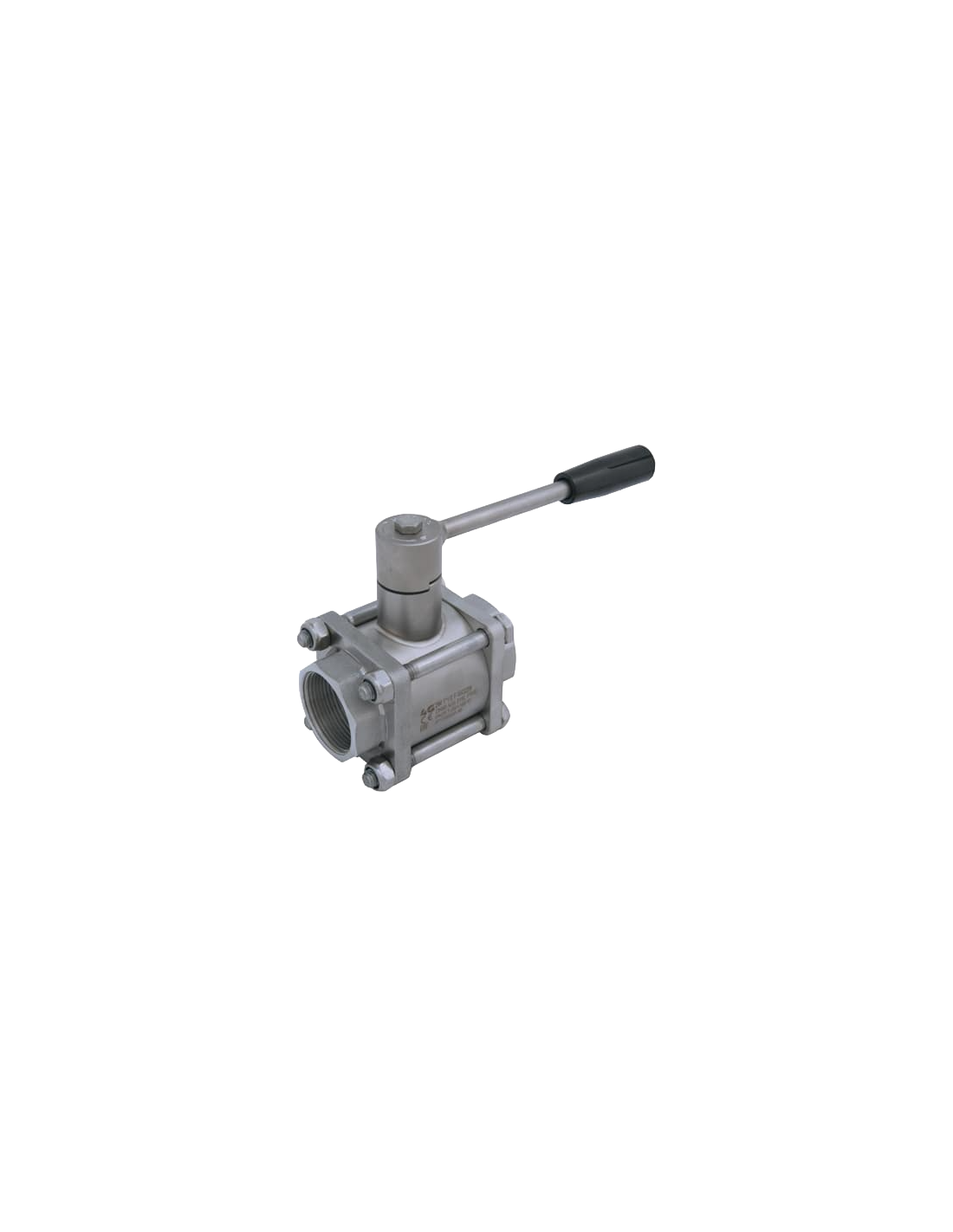

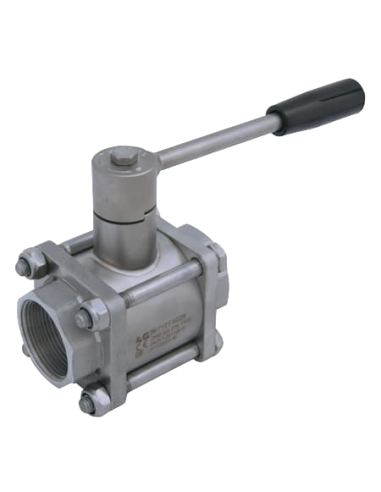

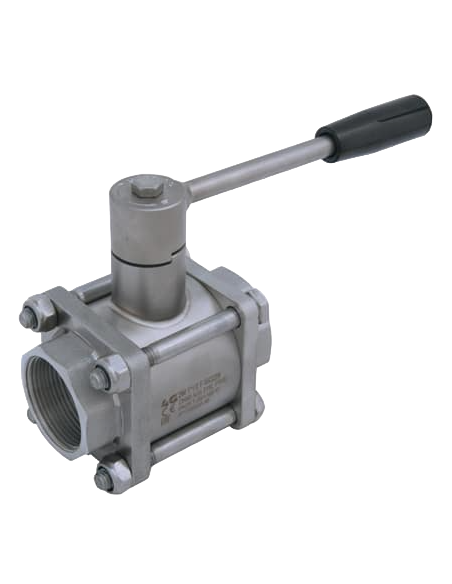

The Ball Valve STANDARD SEALS - NPT F/F - 500104 by 4G Ghidini is a robust two-way ball valve designed with a three-piece construction. It features an inox lever for operation and NPT female/female threaded connections, ensuring a full flow. Constructed from durable Aisi 316L (1.4404) stainless steel, it is available in sizes ranging from 1/4” to 4”. The valve is equipped with virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +160°C. Its outer surface is sandblasted for a refined finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature requirements, such as PTFE with glass, carbographite, inox, and UHMW polyethylene. The valve also meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces

Drive: Inox lever

Connection: NPT female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Sandblasted

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
