The Ball Valve STANDARD SEALS THREADED HOLES FOR UNI EN 1092-1 - 400150 by 4G Ghidini is a versatile two-way ball valve featuring a flat body design, available with or without a heating jacket. It is crafted from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, ensuring durability and corrosion resistance. The valve is equipped with an inox lever for reliable operation and features threaded holes compatible with UNI EN 1092-1 standards for secure connections. It offers full flow capabilities and is available in sizes ranging from DN15 to DN200. The valve operates efficiently within a temperature range of -20°C to +170°C, with optional seals available for extended temperature ranges. Seals can be made from modified virgin P.T.F.E., PTFE with glass, carbographite, or inox, and UHMW polyethylene. Additional features include an optional antistatic device compliant with ATEX standards and M.O.C.A. CE 1935/2004 certification for safety and performance in various industrial applications.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

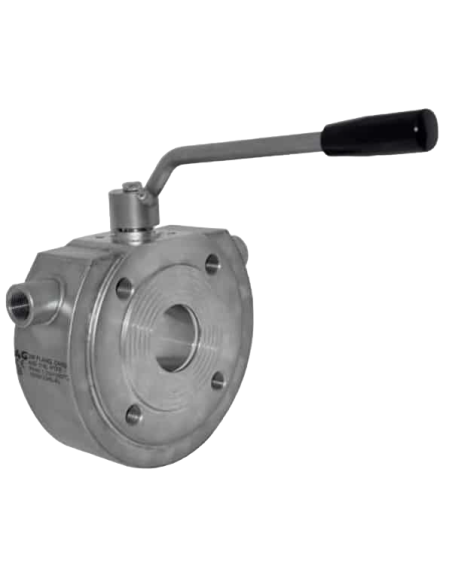

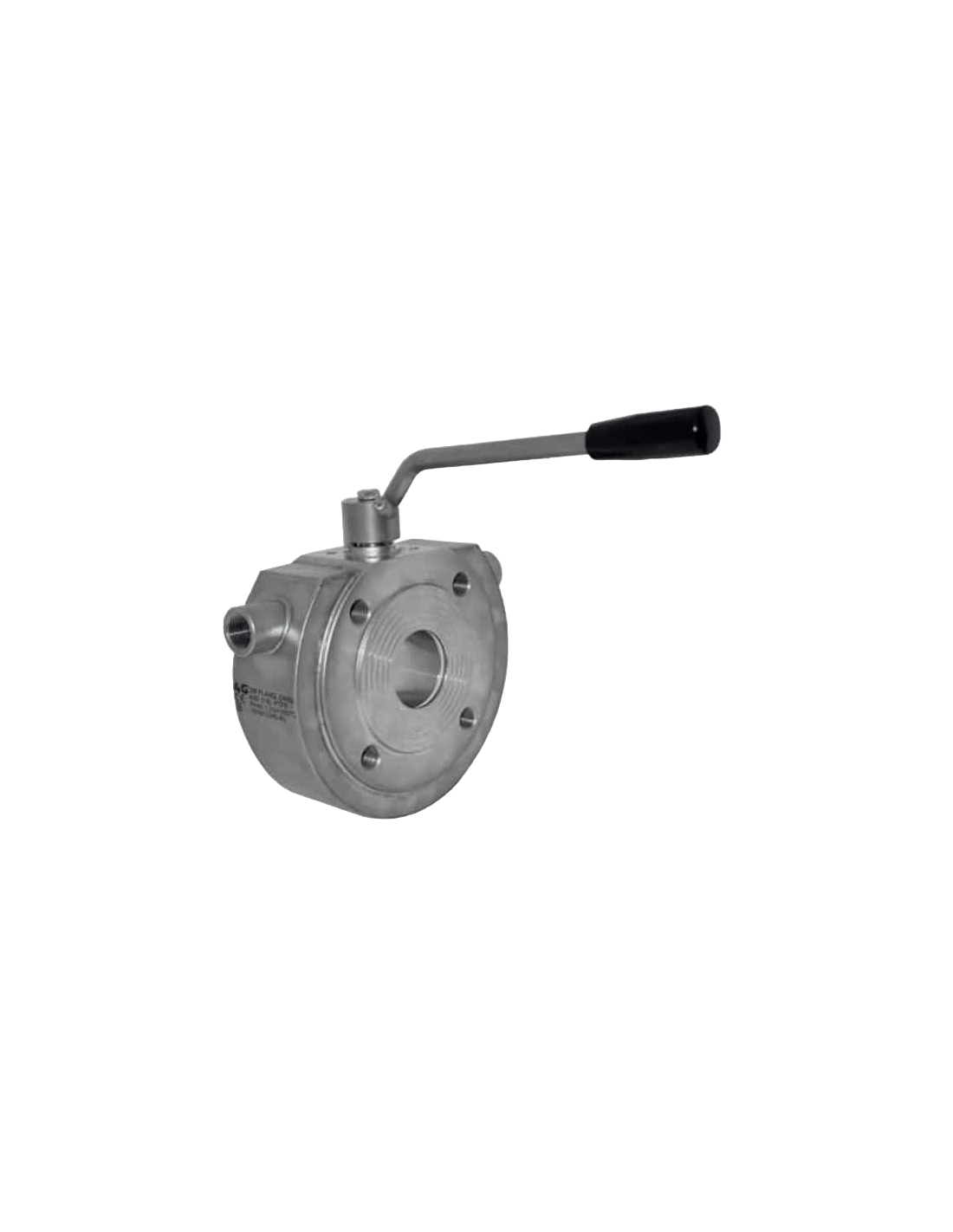

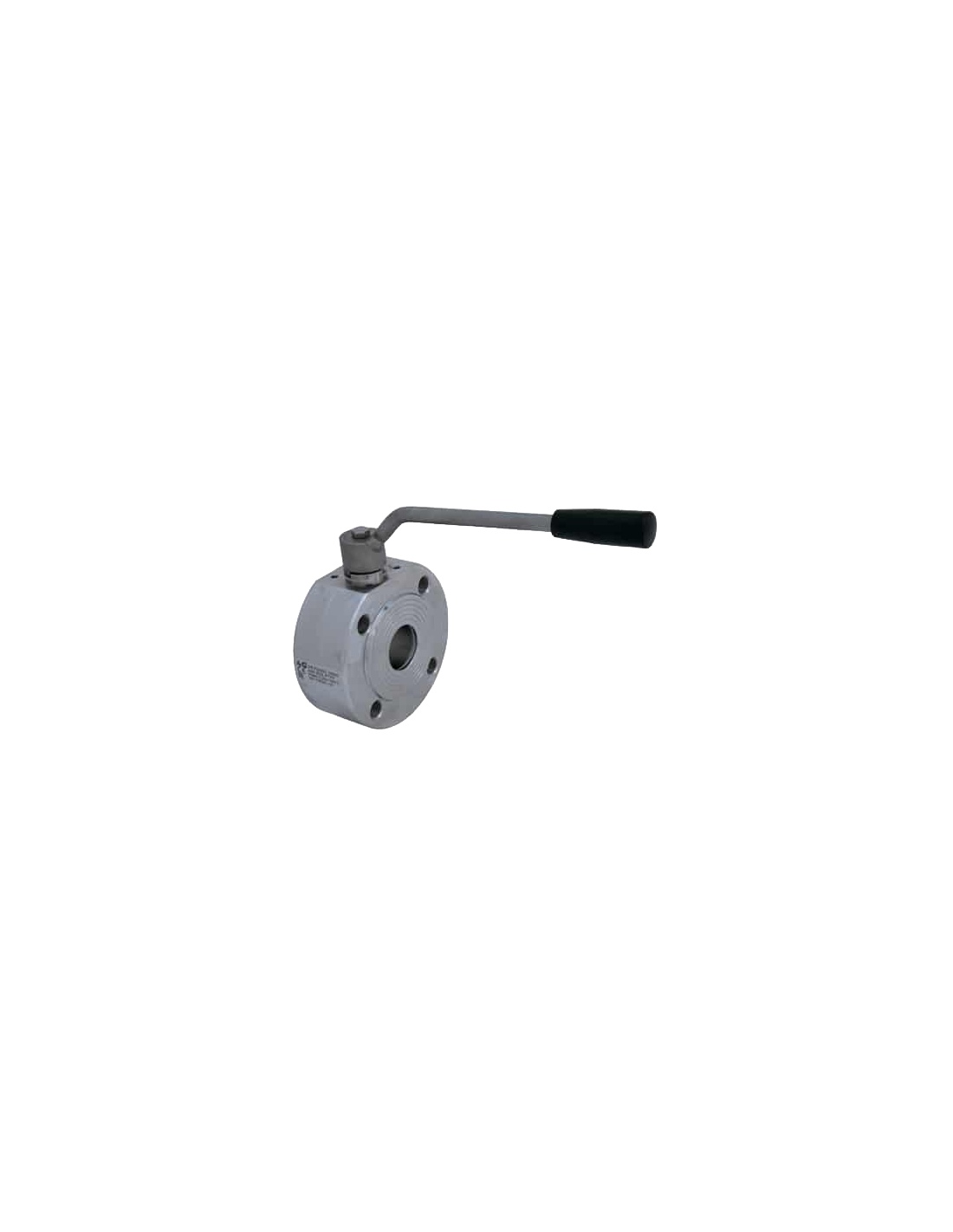

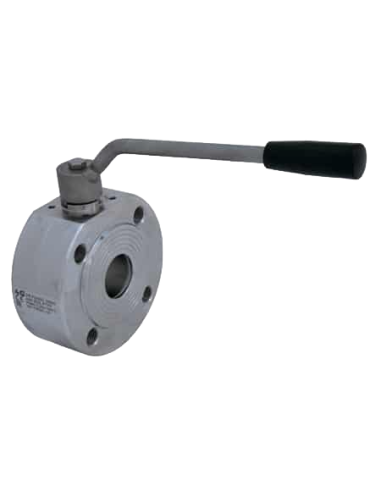

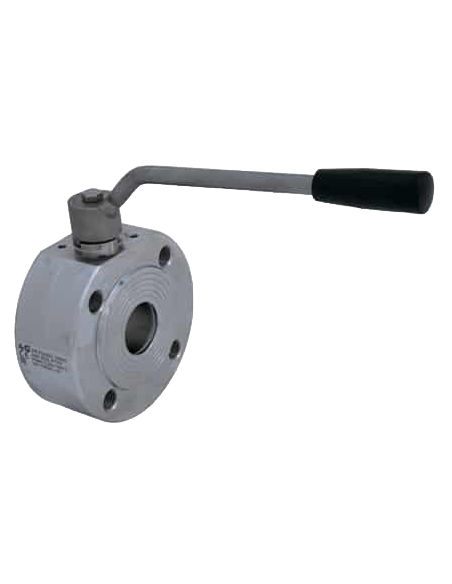

TWO-way ball valve, FLAT BODY, from bar machined / TWO-way ball valve, FLAT BODY with HEATING JACKET from bar machined

Drive: Inox lever

Connection: threaded holes for UNI EN 1092-1

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from DN15 to DN200
  • from DN15 to DN100

Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
