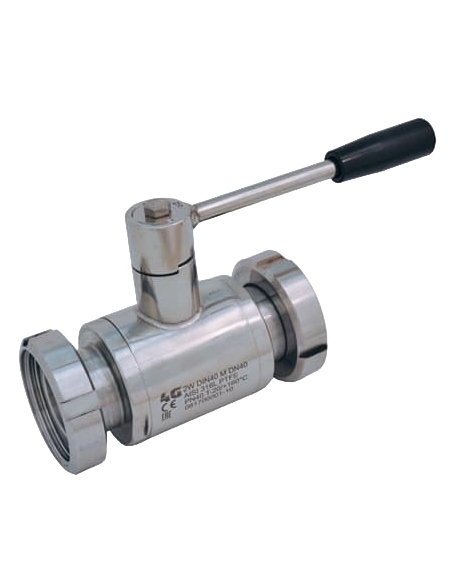

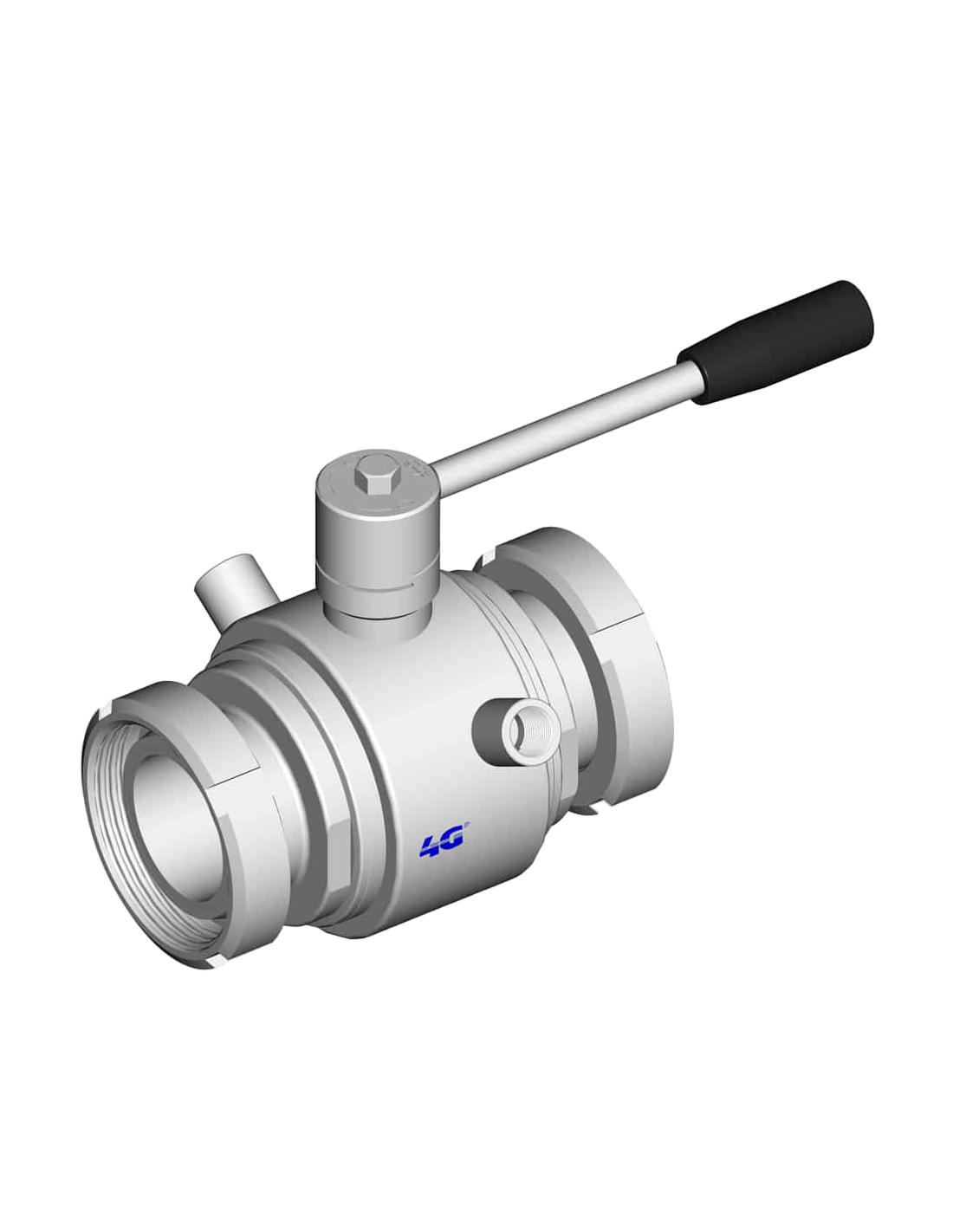

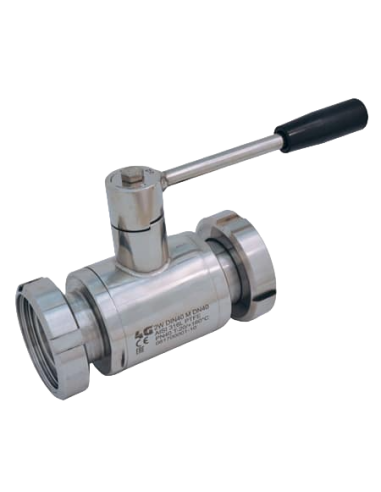

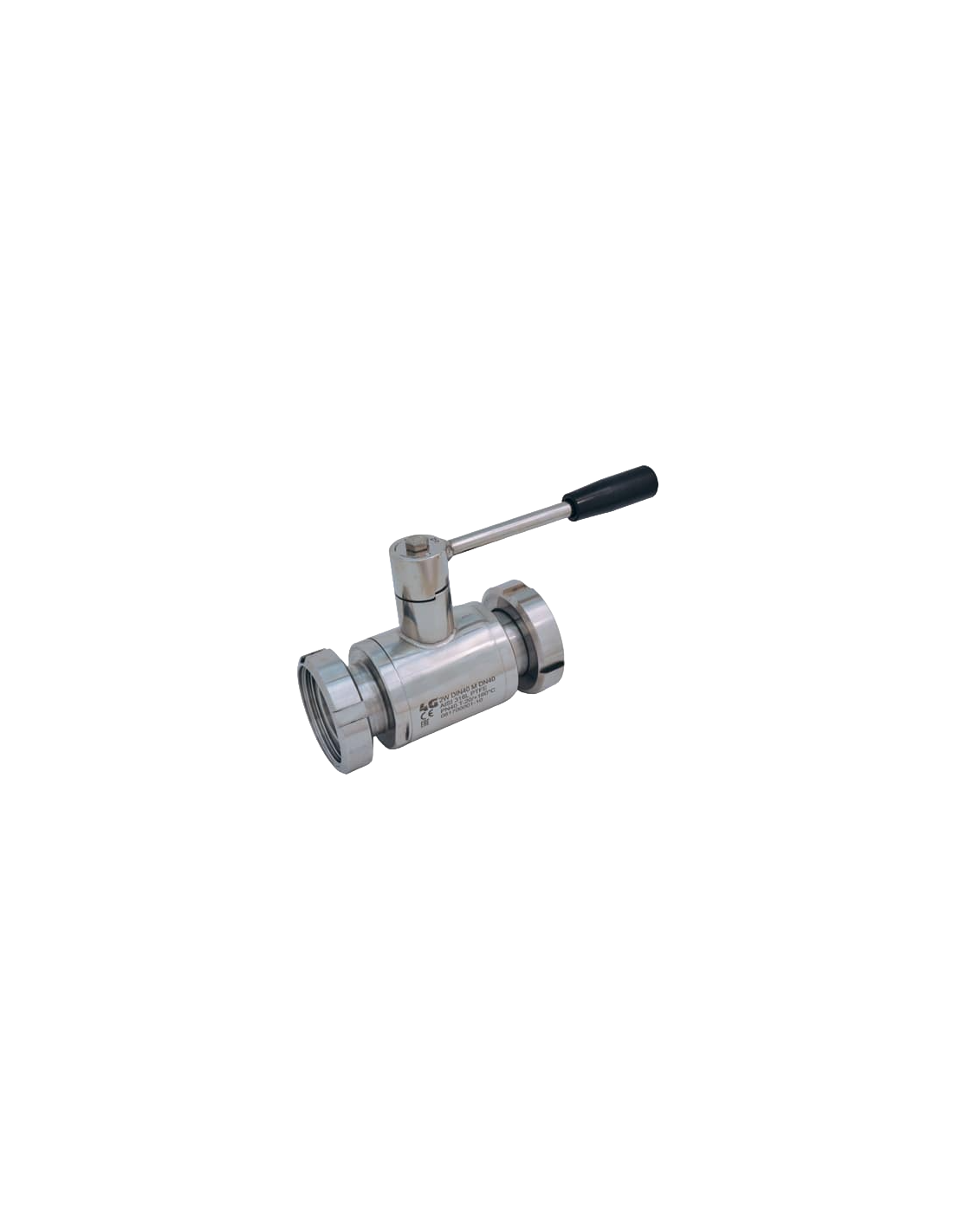

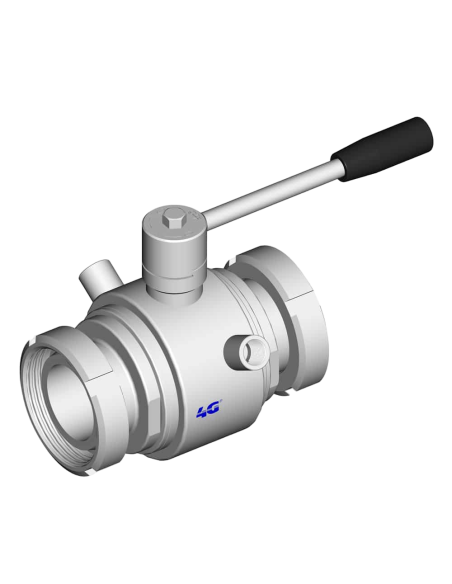

The Ball Valve INTEGRAL SEALS - DIN 11851 M/M - 130127 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an inox lever for operation and utilizes a DIN 11851 male/male connection. The valve supports full flow and is constructed from high-quality Aisi 316L (1.4404) stainless steel, ensuring durability and resistance to corrosion. Available in sizes ranging from DN10 to DN100, it is equipped with virgin P.T.F.E. seals for reliable sealing performance. The valve operates effectively within a temperature range of -20°C to +160°C and boasts a polished outer finish for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass, extending the temperature range to -20°C to +170°C. Additionally, it meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Connection: DIN 11851 male/male

Flow: Full

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN25 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
