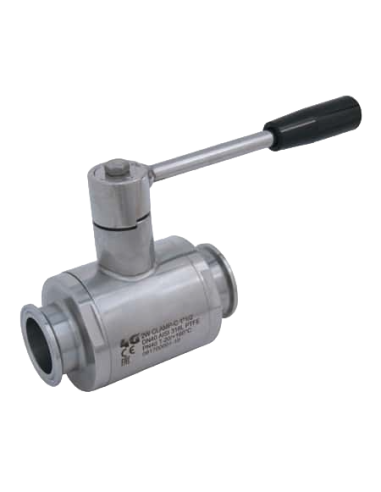

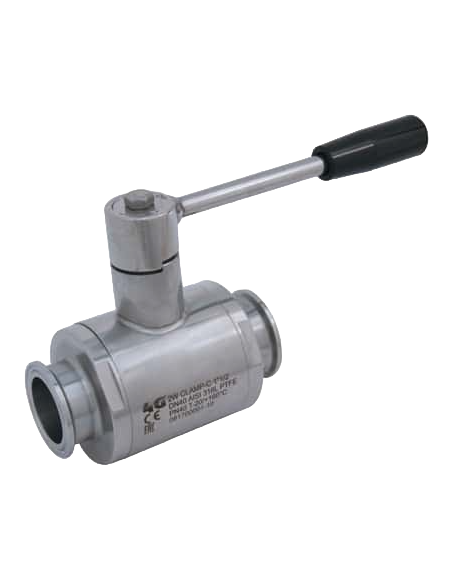

The Ball Valve - 130130 | 4G Ghidini is a two-way "Integral Seal" ball valve designed for efficient fluid control. It features an inox lever for operation and offers versatile connection options compliant with various standards, including DIN 32676 and ASTM A270. The valve supports both full and reduced flow and is constructed from durable Aisi 316L (1.4404) stainless steel. Available in sizes ranging from 1/2” to 4” and DN10 to DN100, it is equipped with virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +160°C. The valve boasts a polished outer finish and offers optional features such as an antistatic device compliant with ATEX standards and seals made of PTFE with glass for enhanced temperature resistance up to +170°C.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
