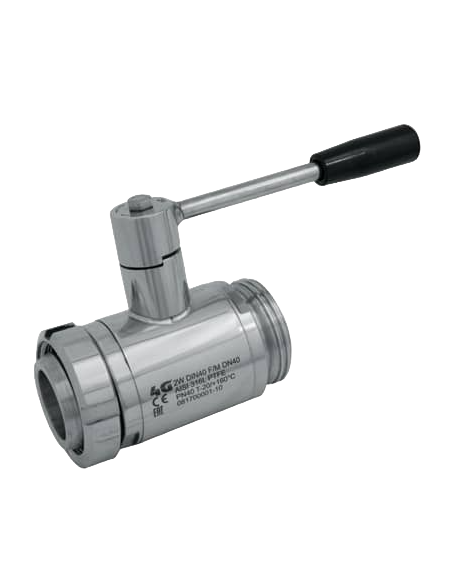

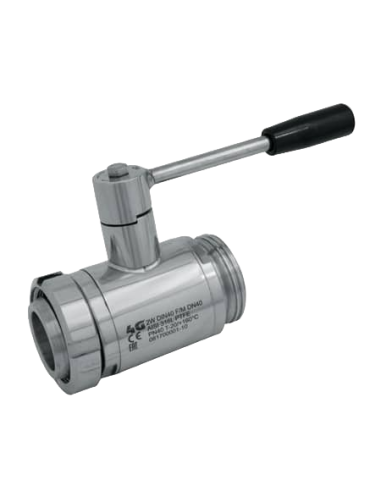

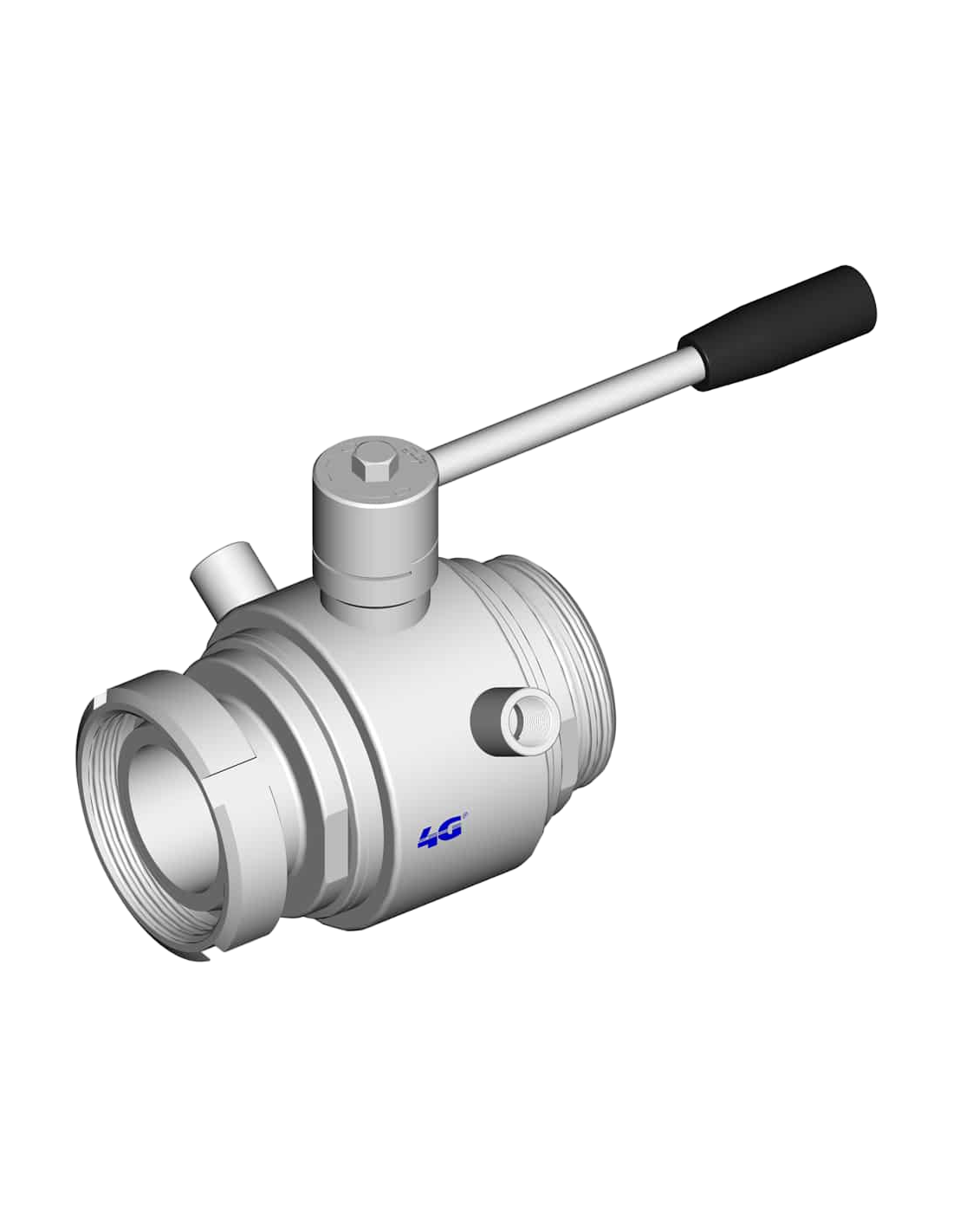

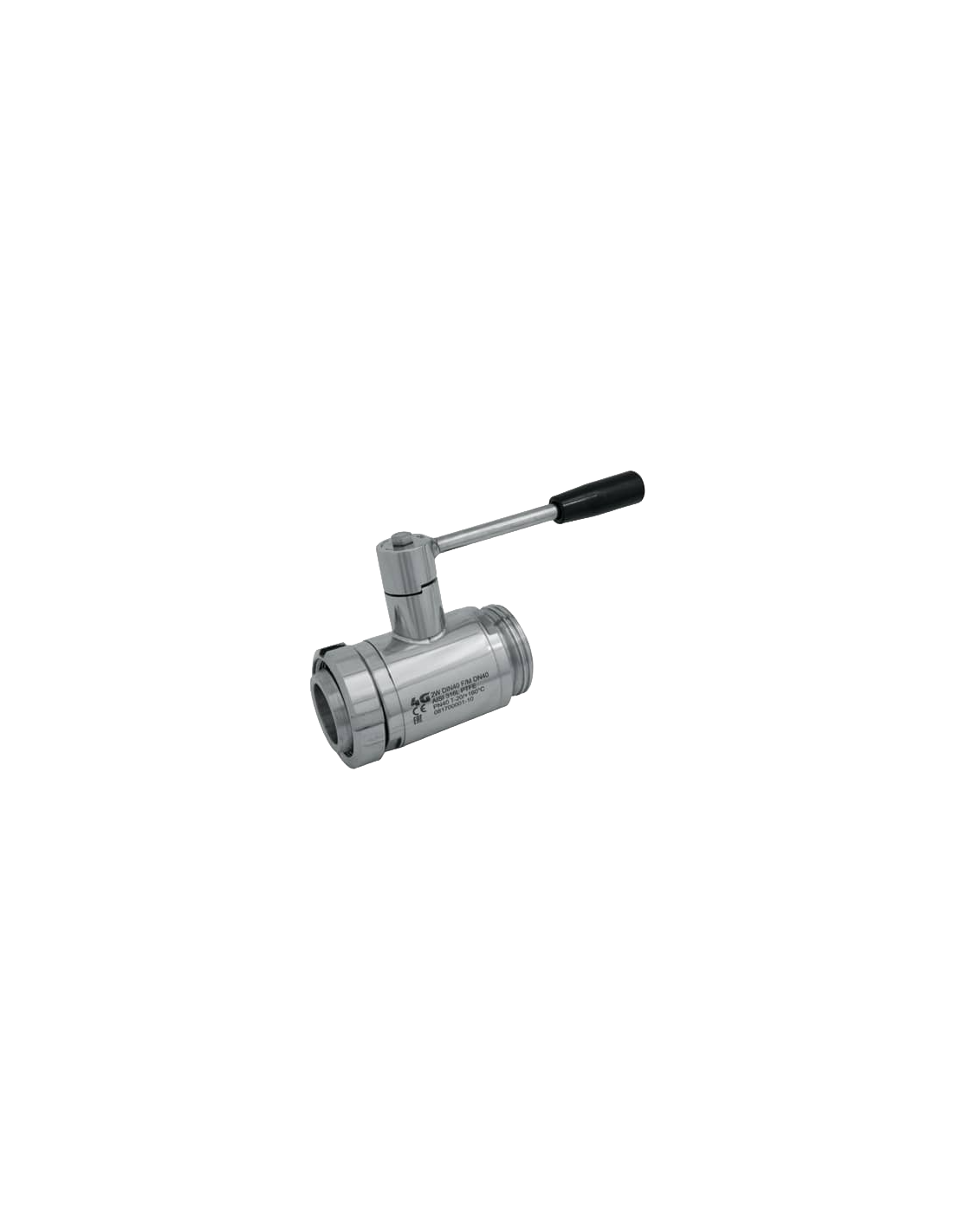

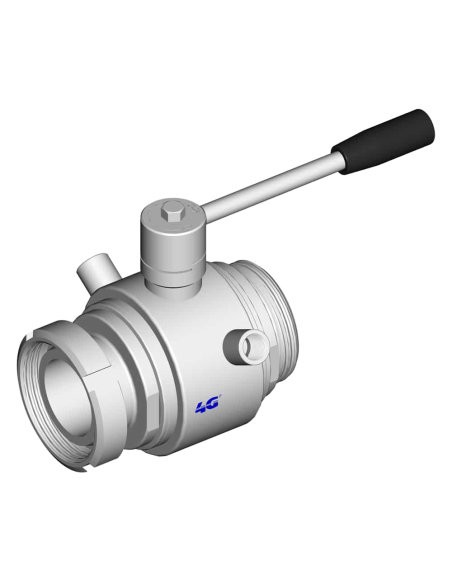

The Ball Valve INTEGRAL SEALS - DIN 11851 F/M - 130126 by 4G Ghidini is a two-way ball valve designed for efficient fluid control. It features an inox lever for operation and connects via DIN 11851 female/male fittings. The valve supports full flow and is constructed from high-quality Aisi 316L (1.4404) stainless steel, ensuring durability and resistance to corrosion. It is available in sizes ranging from DN10 to DN100. The valve is equipped with virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +160°C. The outer finish is polished for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass, extending the temperature range to -20°C to +170°C. The valve also meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Connection: DIN 11851 female/male

Flow: Full

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN25 to DN100

Seals: virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
