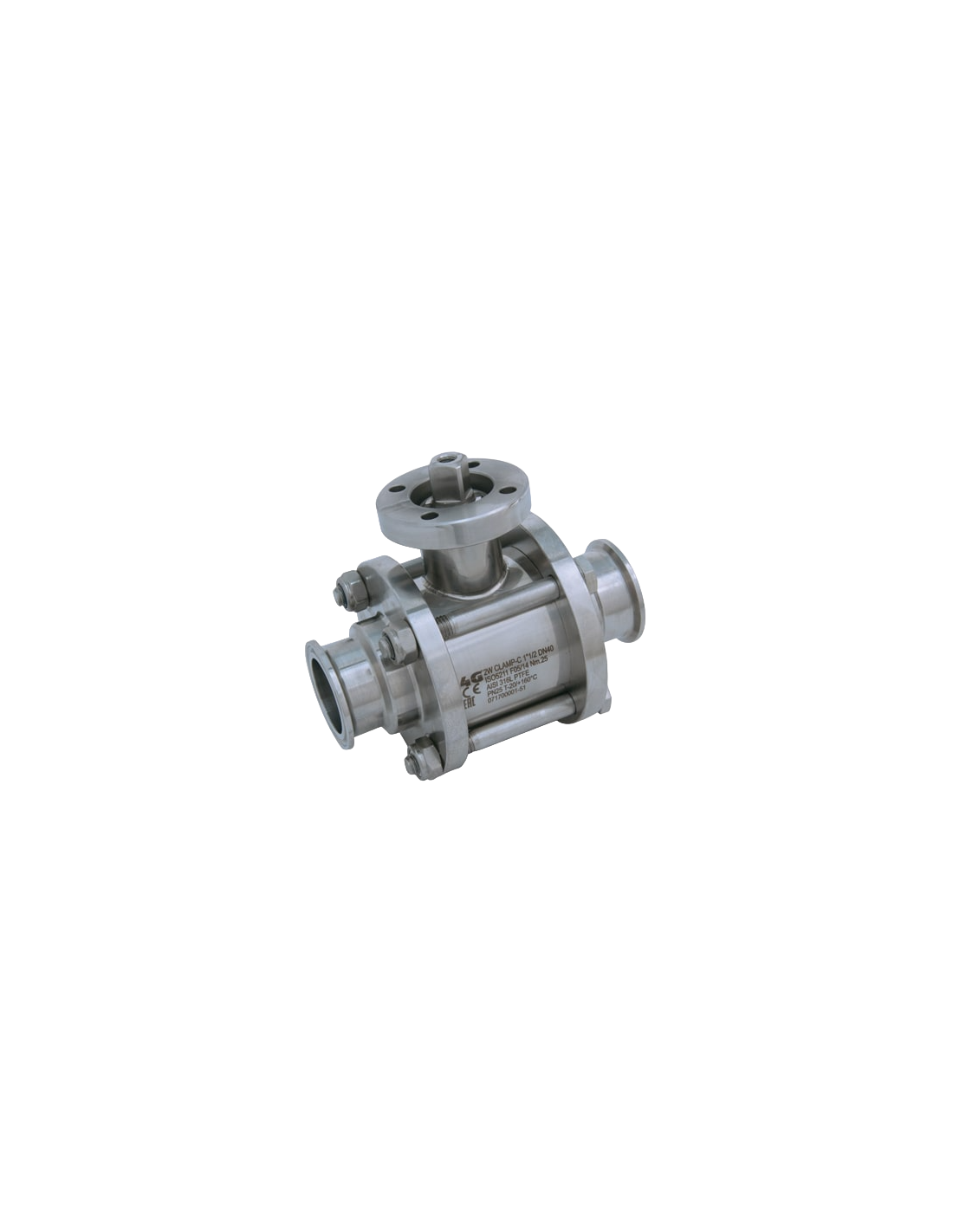

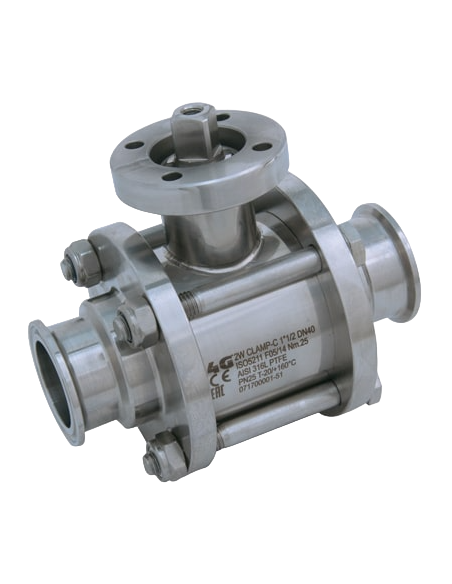

The Ball Valve FOR BS PIPE - 513030 by 4G Ghidini is a versatile two-way, three-piece ball valve designed for use with BS/OD tubes according to ASTM A270 standards. It features a drive compatible with ISO 5211 and DIN 3337 flanges for actuator mounting. The valve connects via a CLAMP according to DIN 32676 TAB.4 REIHE C standards and offers both full and reduced flow options. Constructed from durable AISI 316L (1.4404) stainless steel, it is available in sizes ranging from 1/2″ to 4″. The valve is equipped with virgin P.T.F.E. seals and operates within a temperature range of -20°C to +160°C. It boasts a polished outer finish for enhanced aesthetics and hygiene. Optional features include an antistatic device compliant with ATEX standards, M.O.C.A. CE 1935/2004 certification, and alternative seal materials such as PTFE with glass, carbographite, inox, or UHMW polyethylene, catering to various temperature requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: CLAMP normative DIN 32676 TAB.4 REIHE C

For TUBE according to normative BS/OD (ASTM A270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure: from 1/2″ to 4″

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
