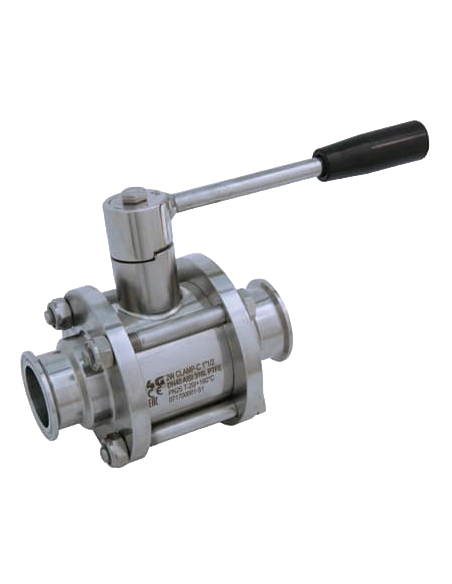

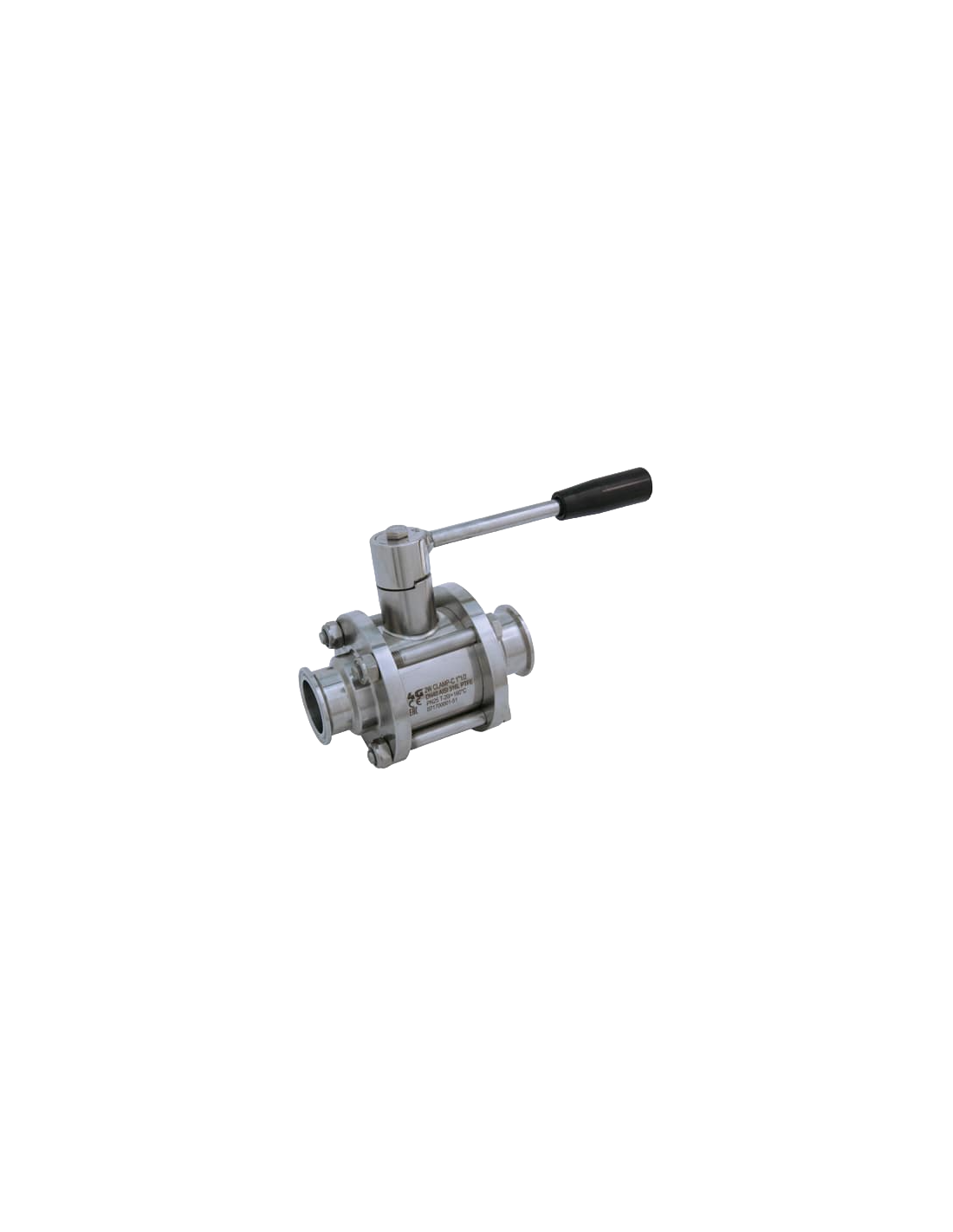

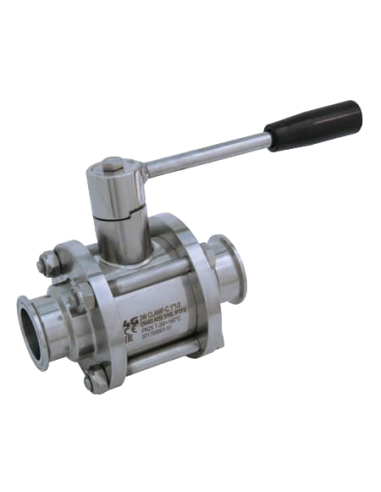

The Ball Valve FOR BS PIPE - 510130 by 4G Ghidini is a versatile two-way ball valve designed with a three-piece construction. It features an inox lever for operation and connects via a CLAMP according to DIN 32676 TAB.4 REIHE C standards. This valve is suitable for tubes conforming to BS/OD (ASTM A270) norms and offers both full and reduced flow options. Constructed from Aisi 316L (1.4404) stainless steel, it is available in sizes ranging from 1/2″ to 4″. The valve is equipped with virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +160°C. It boasts a polished outer finish for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces

Drive: Inox lever

Connection: CLAMP normative DIN 32676 TAB.4 REIHE C

For TUBE according to normative BS/OD (ASTM A270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure: from 1/2″ to 4″

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
