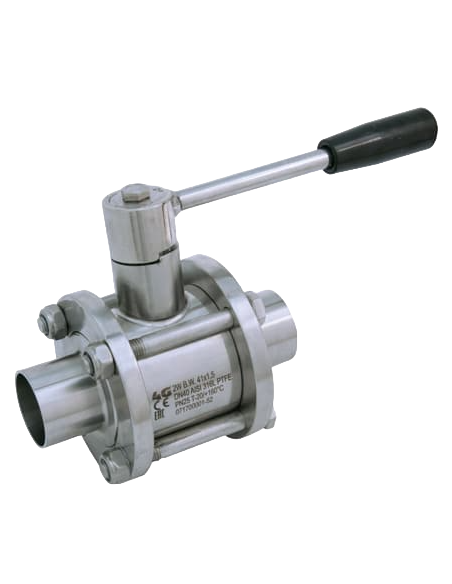

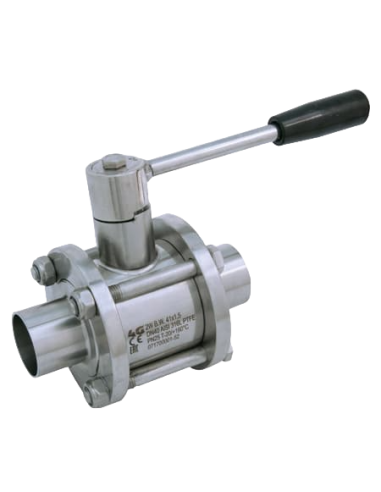

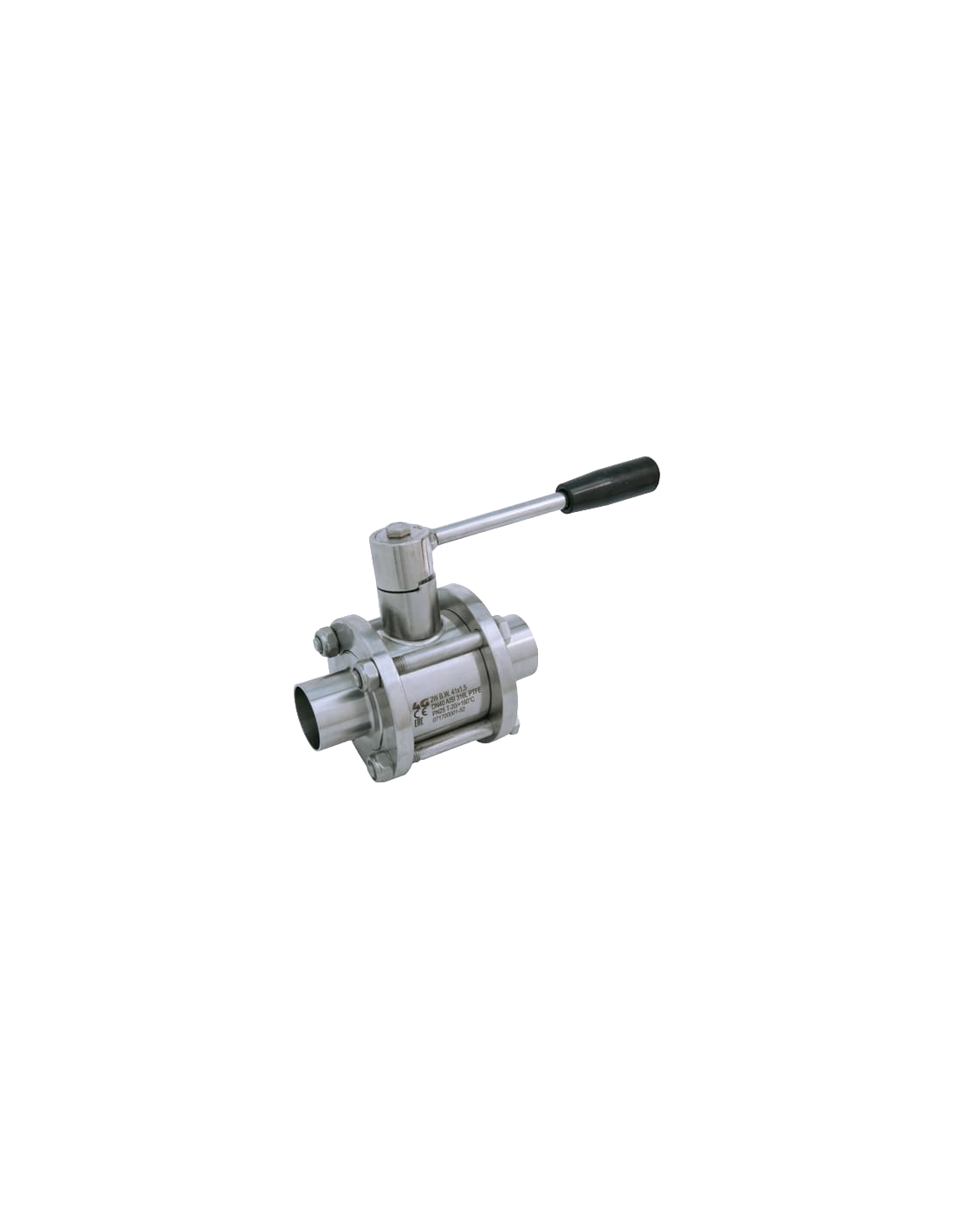

The Ball Valve STANDARD SEALS BUTT-WELDING by 4G Ghidini is a robust two-way valve designed for efficient flow control. It features a three-piece construction with revolving round sleeves and is operated via an inox lever. The valve supports butt-welding connections compliant with BS-OD (ASTM A-270), DIN 11850, and ISO 1127 standards, ensuring versatile installation options. Constructed from durable Aisi 316L (1.4404) stainless steel, it offers full flow capabilities and is available in sizes ranging from DN10 to DN100. The valve is equipped with virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +160°C, and boasts a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for enhanced temperature resistance.
Standard (Options)
  • DIN
Connection (Options)
  • Butt Weld
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces, revolving round sleeves

Drive: Inox lever

Connection:

  • Butt-welding in according to BS-OD (ASTM A-270)
  • Butt-welding in according to DIN 11850
  • Butt-welding in according to ISO 1127

Flow: Full

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN15 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
