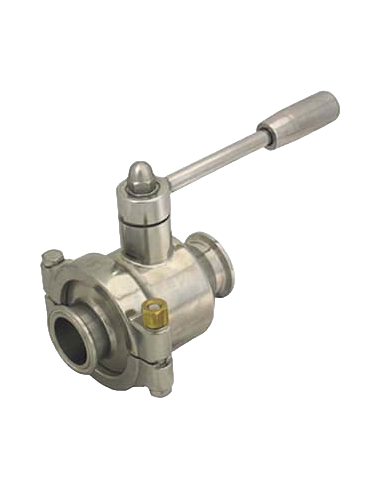

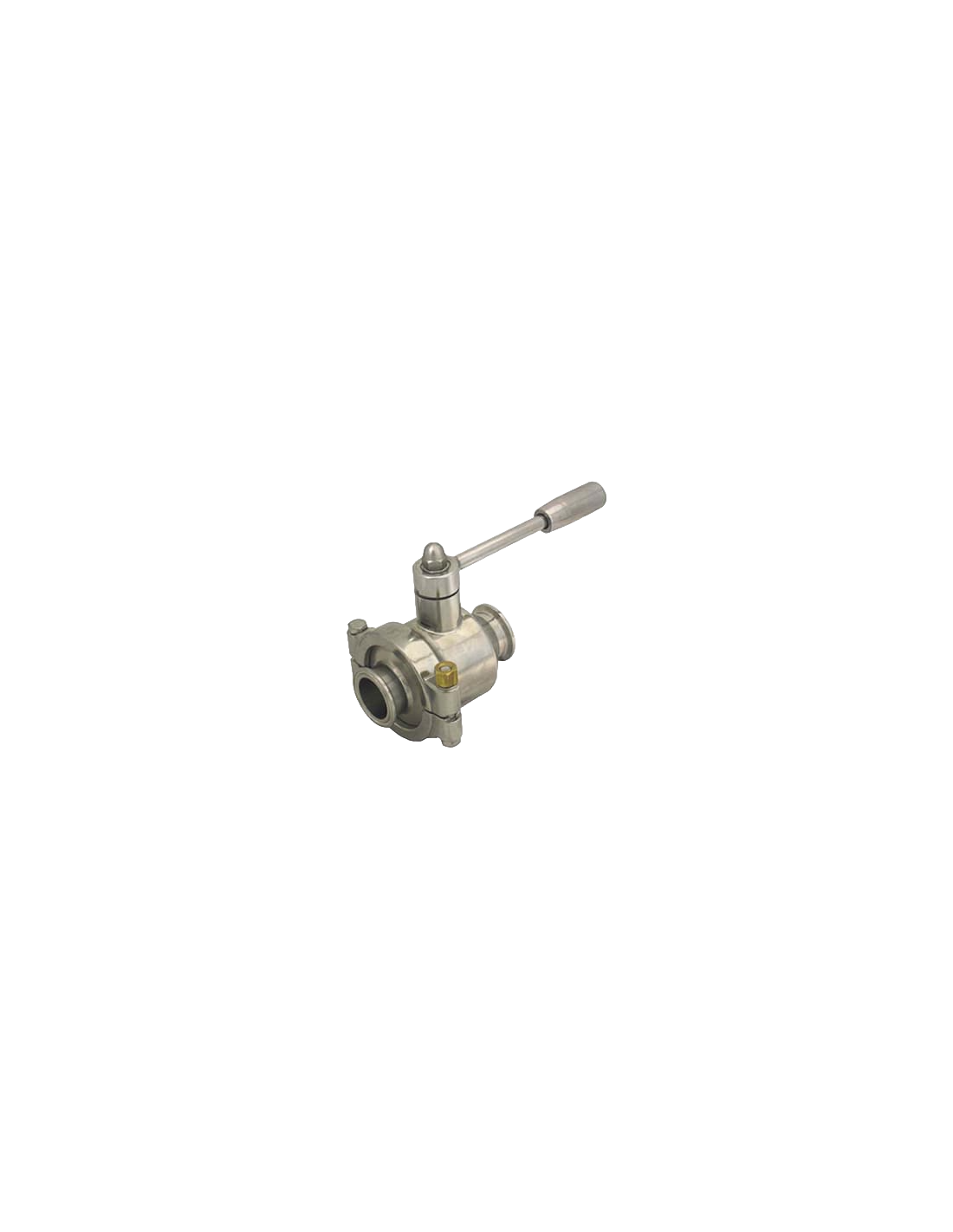

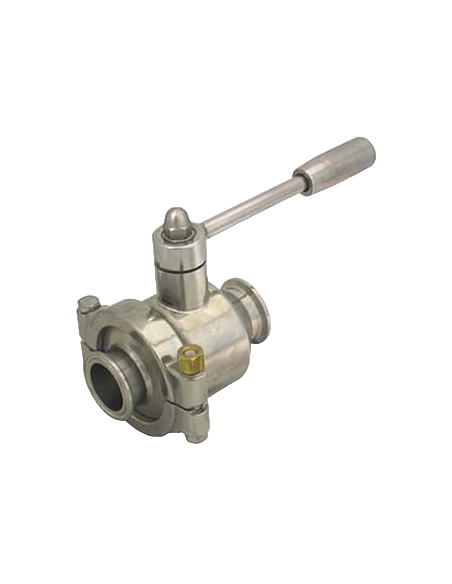

The Ball Valve FOR BS PIPE - 120230 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an inox lever drive and connects via a CLAMP according to DIN 32676 TAB.4 REIHE C standards. This valve is compatible with BS/OD (ASTM A270) tubes and offers full flow capacity. Constructed from durable Aisi 316L (1.4404) stainless steel, it is available in sizes ranging from 1” to 2”1/2. The valve is equipped with modified virgin P.T.F.E. seals and operates within a temperature range of -20°C to +170°C. Its outer finish is polished for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection: CLAMP normative DIN 32676 TAB.4 REIHE C

According to normative BS/OD (ASTM A270) for TUBE

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1” to 2”1/2

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
