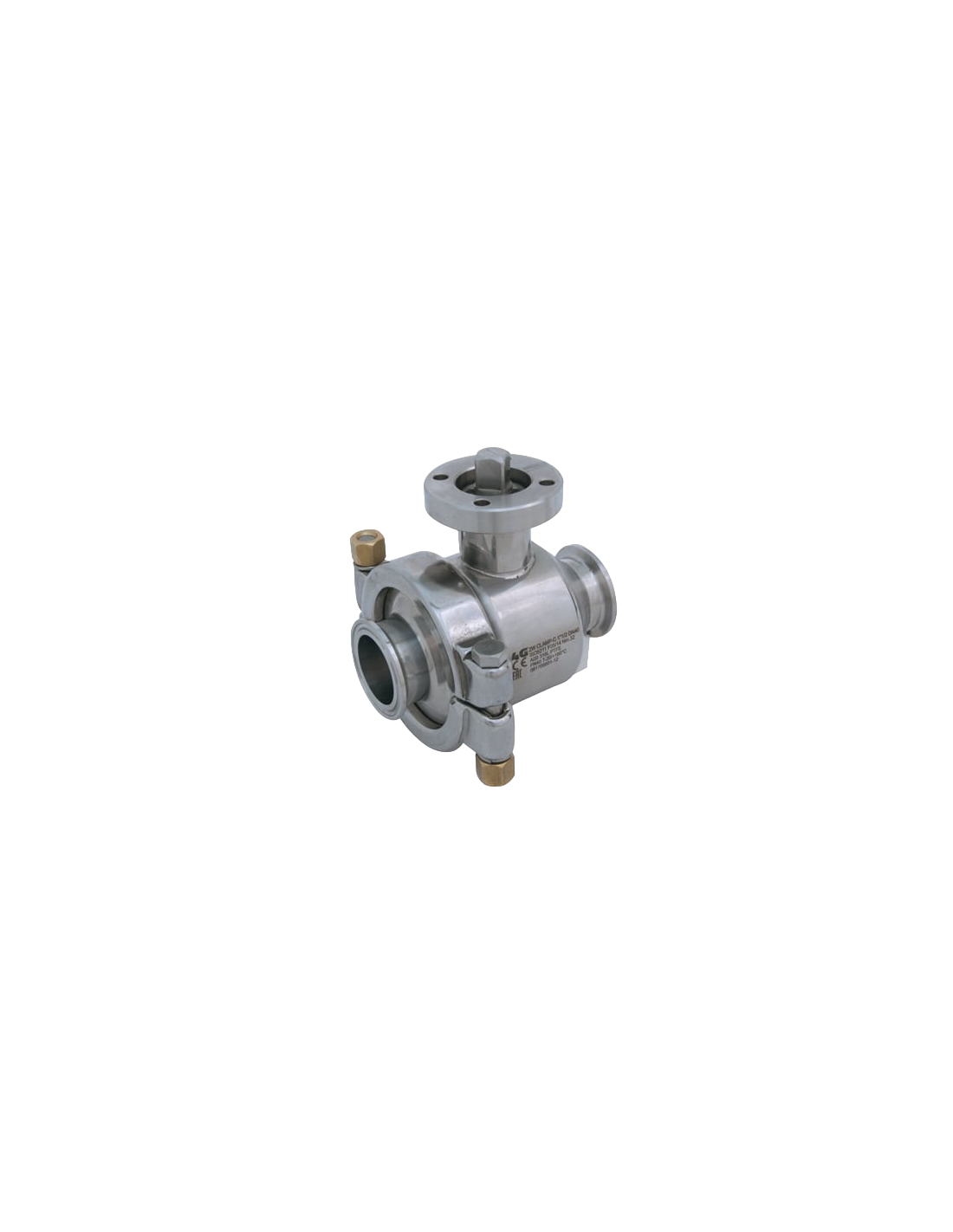

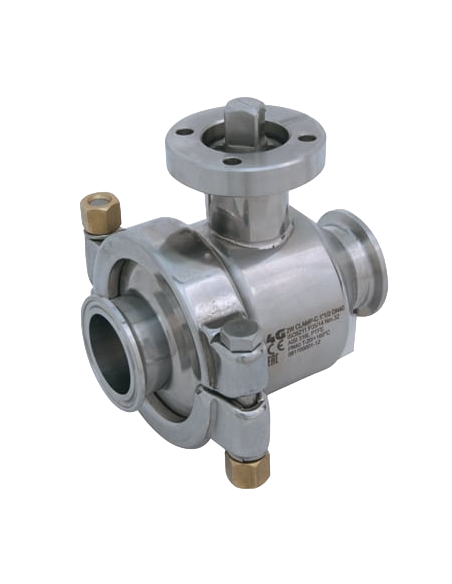

The Ball Valve FOR BS PIPE - 123030 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features a drive with an ISO 5211 – DIN 3337 flange for actuator compatibility and a CLAMP connection according to DIN 32676 TAB.4 REIHE C standards. The valve is constructed from Aisi 316L (1.4404) stainless steel, ensuring durability and resistance to corrosion. It accommodates pipe sizes from 1” to 2”1/2 and operates within a temperature range of -20°C to +170°C. The valve includes modified virgin P.T.F.E. seals and comes with screws for actuator mounting. The outer finish is polished for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: CLAMP normative DIN 32676 TAB.4 REIHE C

According to normative BS/OD (ASTM A270) for TUBE

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1” to 2”1/2

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
