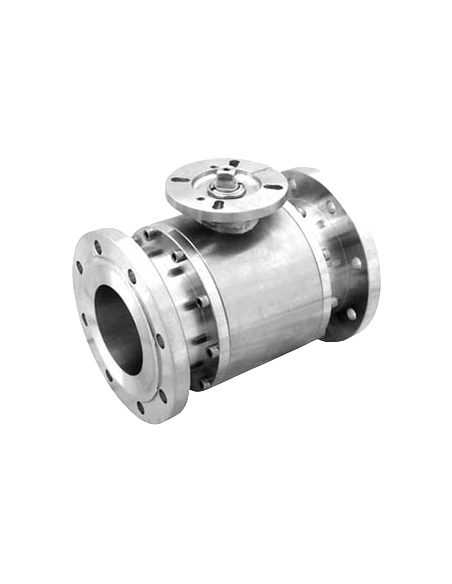

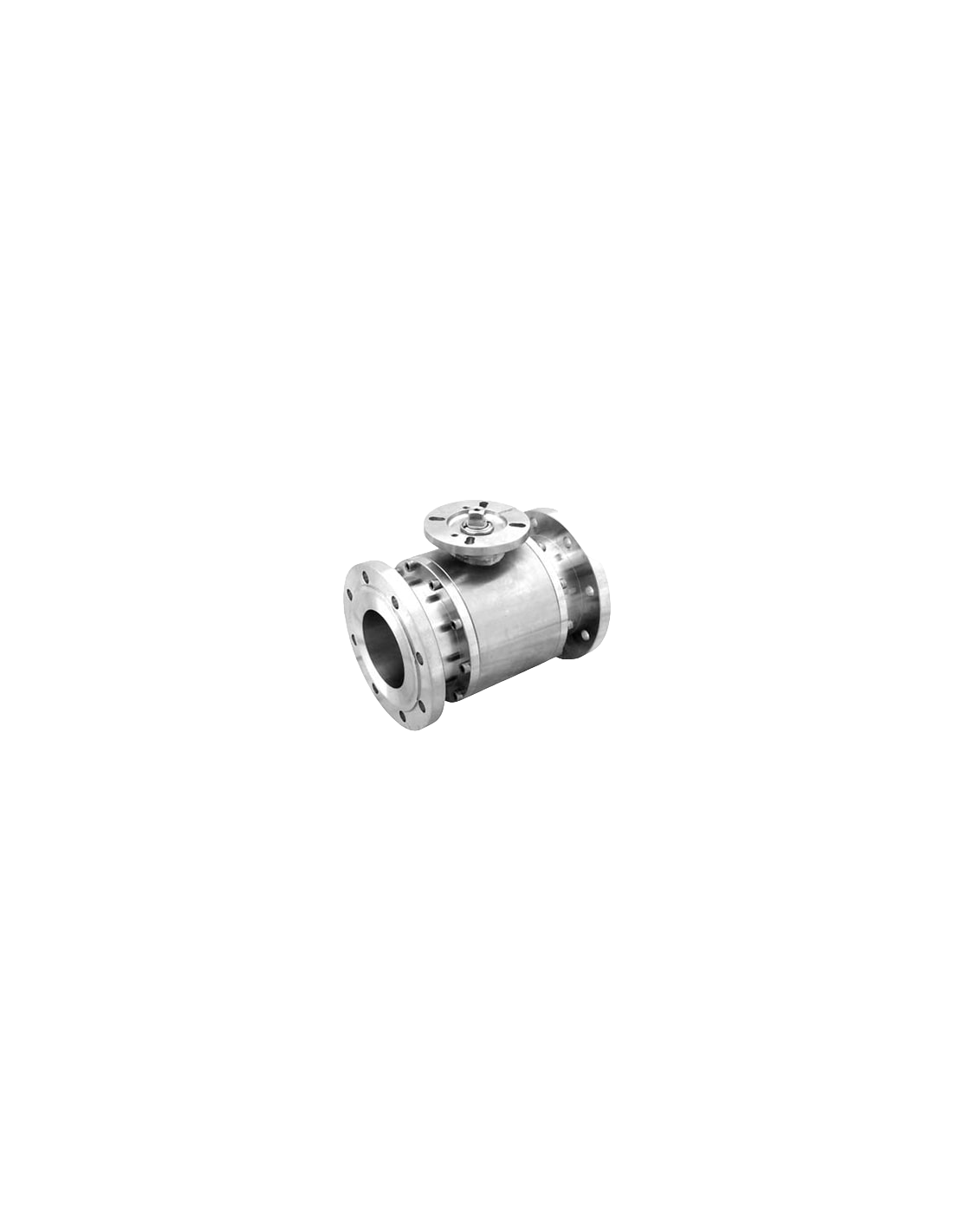

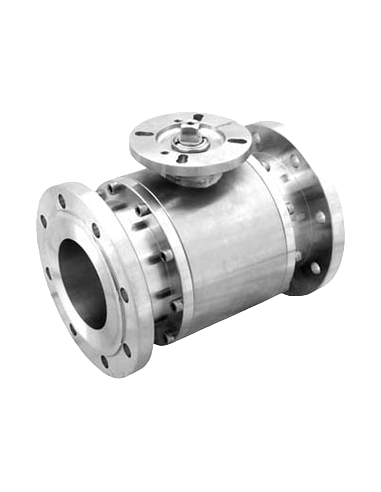

The Ball Valve DN 125 from 4G Ghidini is a two-way valve designed for efficient flow control. It features a full flow design and is constructed from high-quality Aisi 316L (1.4404) stainless steel, ensuring durability and resistance to corrosion. The valve is equipped with standard seals made from virgin P.T.F.E., suitable for operating temperatures ranging from -20°C to +160°C. It connects via flanges conforming to UNI EN 1092-1 standards, supporting PN 10-40 pressure ratings. The valve includes an ISO 5211 flange for actuator mounting, with screws provided for easy installation. It also incorporates an antistatic device compliant with ATEX standards, classified as II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db, making it suitable for use in potentially explosive environments. The outer finish is turned for a smooth appearance. Additionally, M.O.C.A. certification according to CE 1935/2004 is available upon request.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 flange for actuator

Connection: Flanges UNI EN 1092-1 PN 10-40

Flow: Full

Material: Aisi 316L (1.4404)

Measure: DN125

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Turned

Screws for mounting actuator included

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

On request:

M.O.C.A. CE 1935/2004
