Ball Valve - 19001 | Ibor Valves

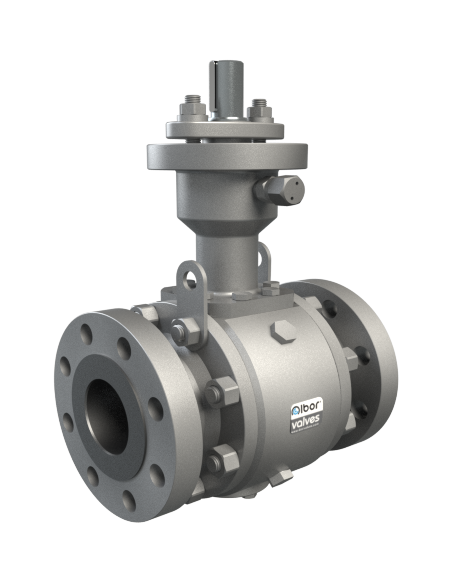

The Ball Valve - 19001 by Ibor Valves is a versatile and robust valve designed for various industrial applications. It features a sophisticated seat design with options for a double piston effect both downstream and upstream (DIB I) or a double piston effect downstream with a single piston effect upstream (DIB II). The valve includes a secondary soft seat for enhanced sealing capabilities. The stem of the valve is equipped with a sealing injector and offers options for thermic extension, either on the stem or bonnet, ensuring adaptability to different operational environments. It is designed to meet fugitive emissions standards and includes a locking device for added security. Additional features include an overlay on the seat area or all wetted parts for increased durability, and an optional heating jacket for temperature-sensitive applications. The valve offers multiple connection types, including flanged ends (ASME B16.5 / GOST 12815-80 / EN 1092.1), socket weld ends (ASME B16.11), butt weld ends (ASME B16.25), and threaded ends (NPT: ASME B1.20.1, BSPP or BSPT: BS21), providing flexibility for integration into various piping systems. Integral nipples are also available for certain connection types.
