Ball Valve - 19000 | Ibor Valves

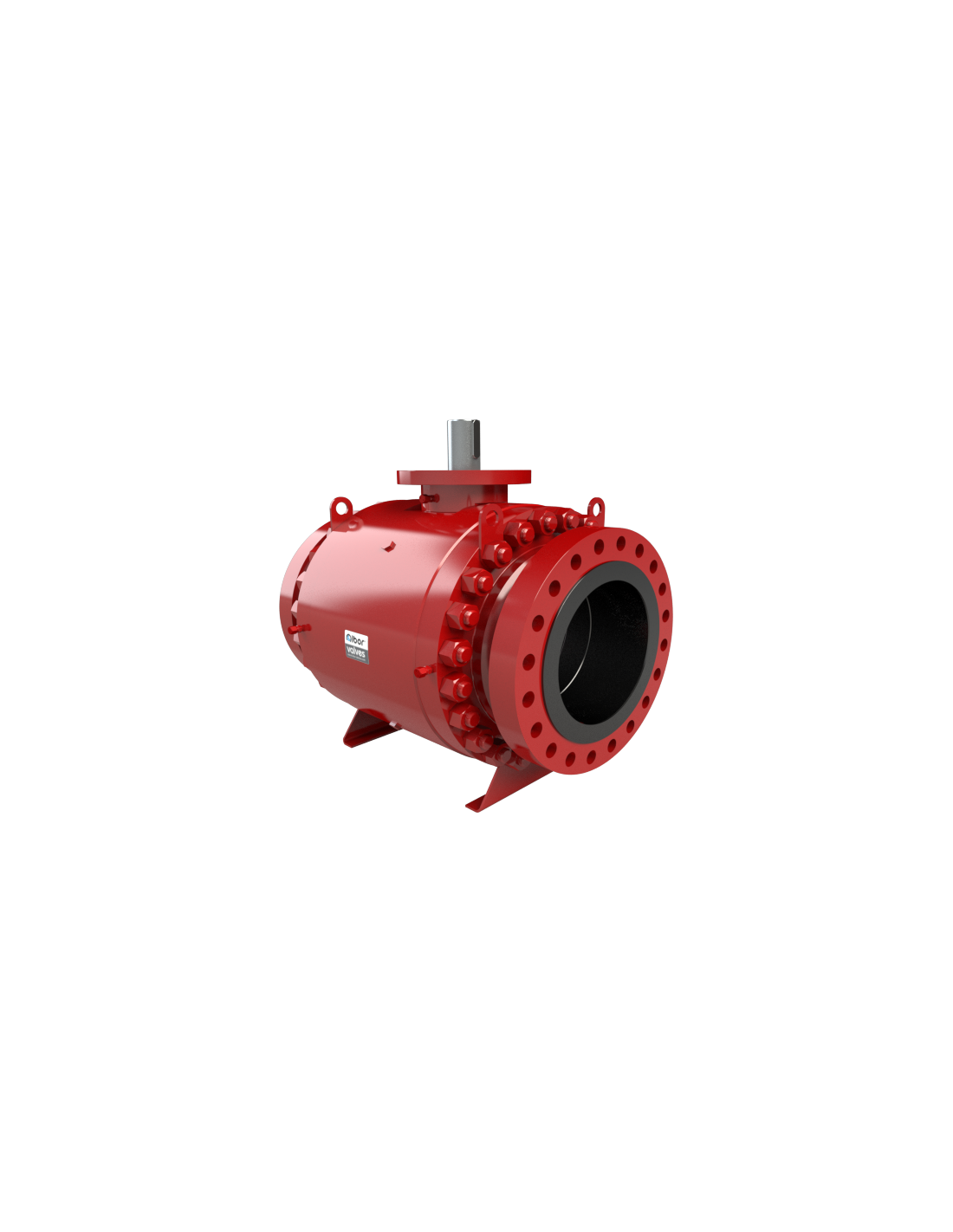

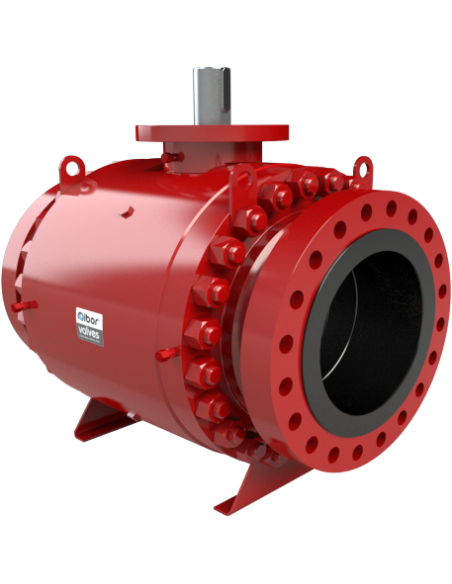

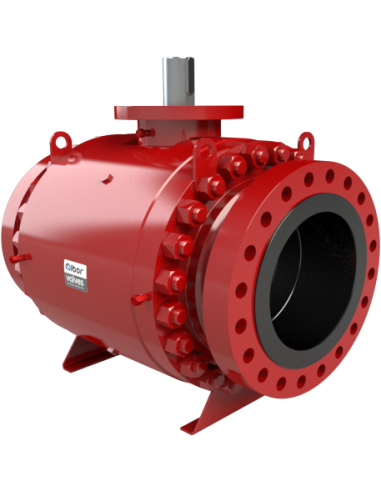

The Ball Valve - 19000 by Ibor Valves is a versatile and robust valve designed for various industrial applications. It features a sophisticated seat design with options for double piston effect both downstream and upstream (DIB I) or a combination of double piston effect downstream and single piston effect upstream (DIB II). The valve includes a seat sealing injector for enhanced sealing capabilities. The stem of the valve is equipped with a sealing injector and can be extended with a stem or bonnet extension. A locking device is also included for added security. Additional features include an overlay on the seat area or all wetted parts for increased durability, and the option for a heating or cooling jacket to suit specific process requirements. The valve offers multiple connection types, including Flanged End (ASME B16.5 / GOST 12815-80 / EN 1092.1), Socket Weld End (ASME B16.11), Butt Weld End (ASME B16.25), and Threaded Ends (NPT: ASME B1.20.1, BSPP or BSPT: BS21), providing flexibility for integration into various piping systems. Integral nipples are available for certain connection types.
