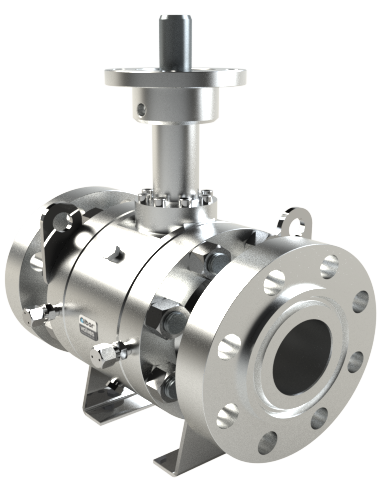

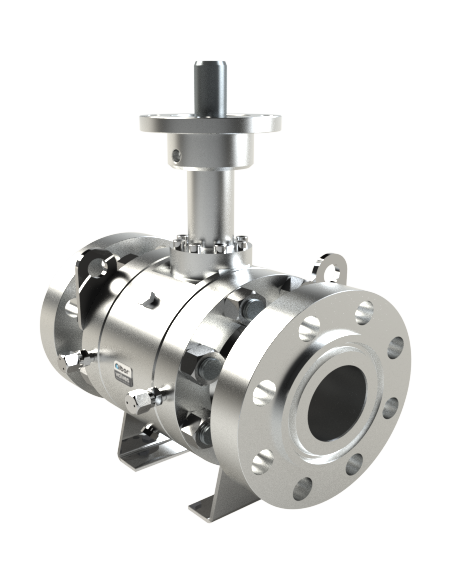

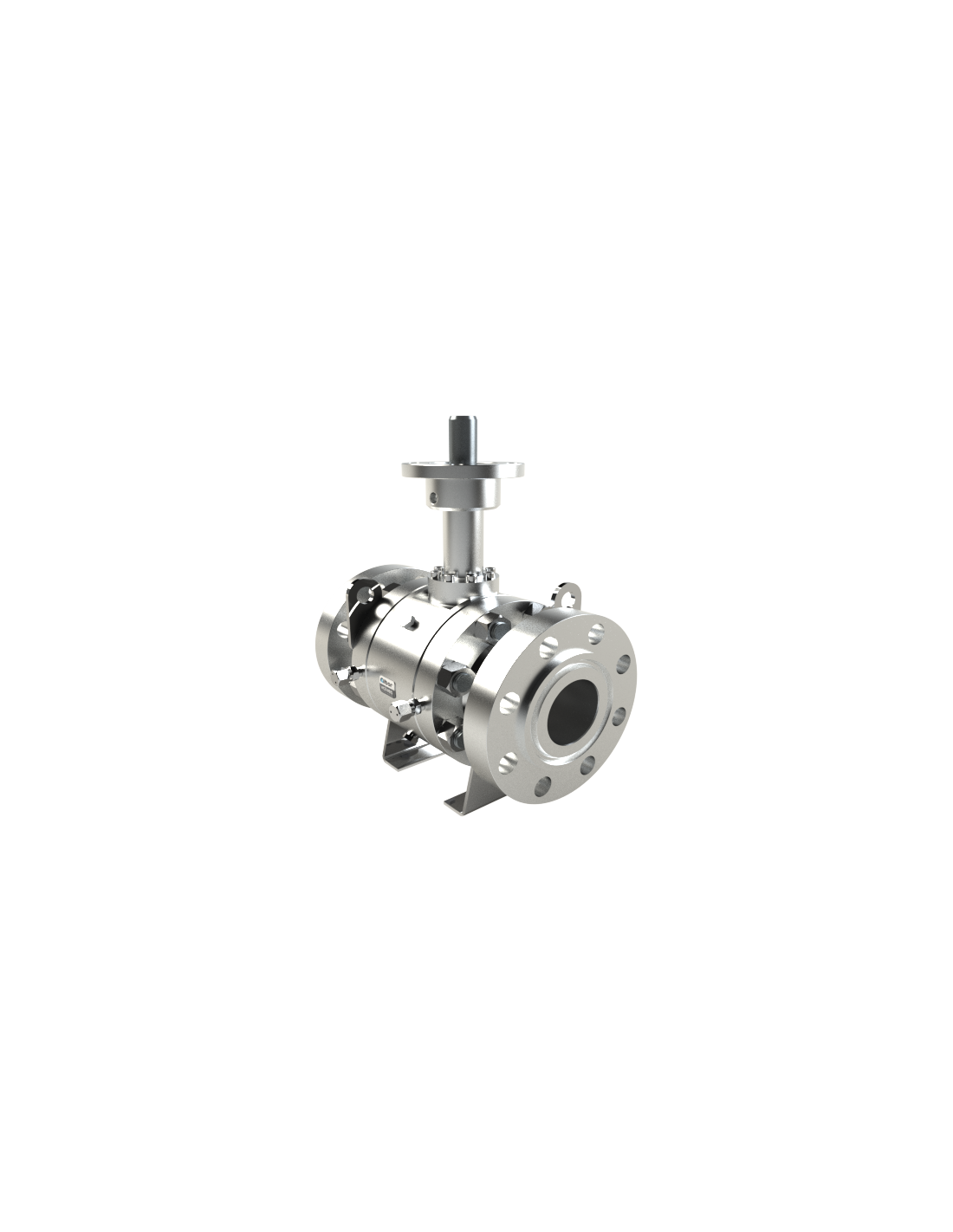

The Ball Valve - 19002 by Ibor Valves is designed with advanced seat and stem features to ensure reliable performance and safety. It offers a double piston effect both downstream and upstream (DIB I) or a combination of double piston effect downstream and single piston effect upstream (DIB II) for enhanced sealing capabilities. The valve includes a seat sealing injector and a stem sealing injector, with options for stem or bonnet extension. It is designed to minimize fugitive emissions and includes a locking device for secure operation. The valve supports various connection types, including flanged ends compliant with ASME B16.5, GOST 12815-80, and EN 1092.1 standards, socket weld ends per ASME B16.11, butt weld ends according to ASME B16.25, and threaded ends following ASME B1.20.1 and BS21 standards for BSPP or BSPT threads. Integral nipples are available for certain configurations, providing flexibility for different installation requirements.

Description

Seat design

  • Double piston effect downstream & upstream – DIB I
  • Double piston effect downstream & single piston effect upstream – DIB II
  • Seat sealing injector

Stem

  • Stem sealing injector
  • Stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / BS 6364

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
