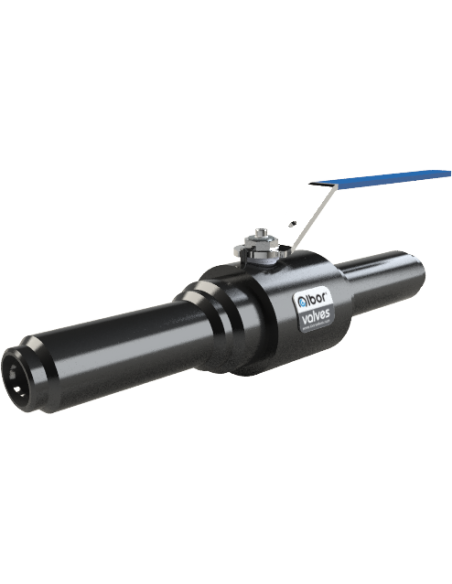

The Ball Valve - 13000 by Ibor Valves is designed with a focus on durability and functionality. It features a self-relieving seat for cavity relief and offers metal-to-metal seats for enhanced sealing. The valve includes a locking device on the stem for secure operation. Additional features include a drain plug and an overlay on the seat area or all wetted parts for increased protection. The valve supports various connection types, including Socket Weld End (ASME B16.11), Butt Weld End (ASME B16.25), Threaded NPT End (ASME B1.20.1), and Threaded BSPP or BSPT (BS21), with integral nipples available for each.

Description

Seat design

  • Self-relieving seat (cavity relief)
  • Metal to metal seats

Stem

  • Locking device

Others

  • Drain plug
  • Overlay on seat area or on all wetted parts

Connections

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: ISO 17292

Face to Face: Manufacture

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
