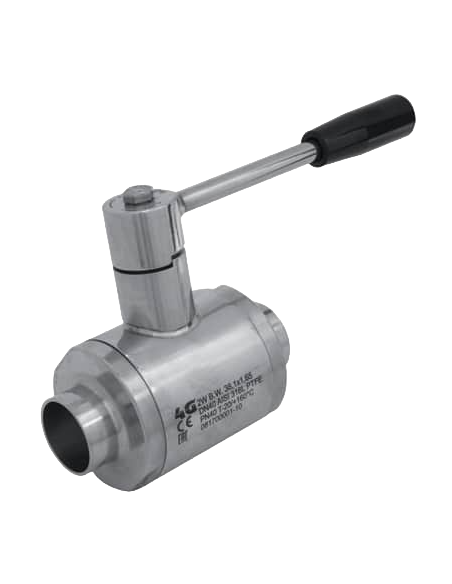

The Ball Valve INTEGRAL SEALS BUTT-WELDING by 4G Ghidini is a two-way valve designed for efficient flow control. It features an inox lever drive and is compatible with butt-welding connections according to BS-OD (ASTM A-270), DIN 11850, and ISO 1127 standards. The valve offers full flow and is constructed from durable Aisi 316L (1.4404) stainless steel, with sizes ranging from DN10 to DN100. It is equipped with virgin P.T.F.E. seals and operates within a temperature range of -20°C to +160°C. The outer finish is polished for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass, suitable for temperatures up to +170°C. The valve also meets M.O.C.A. CE 1935/2004 regulations.
Standard (Options)
  • DIN
Connection (Options)
  • Butt Weld
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Connection:

  • Butt-welding in according to BS-OD (ASTM A-270)
  • Butt-welding in according to DIN 11850
  • Butt-welding in according to ISO 1127

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN10 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
