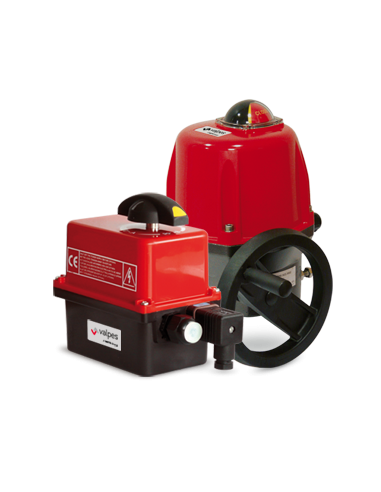

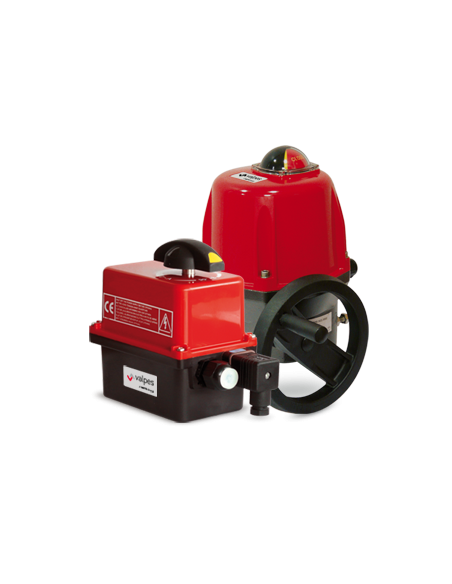

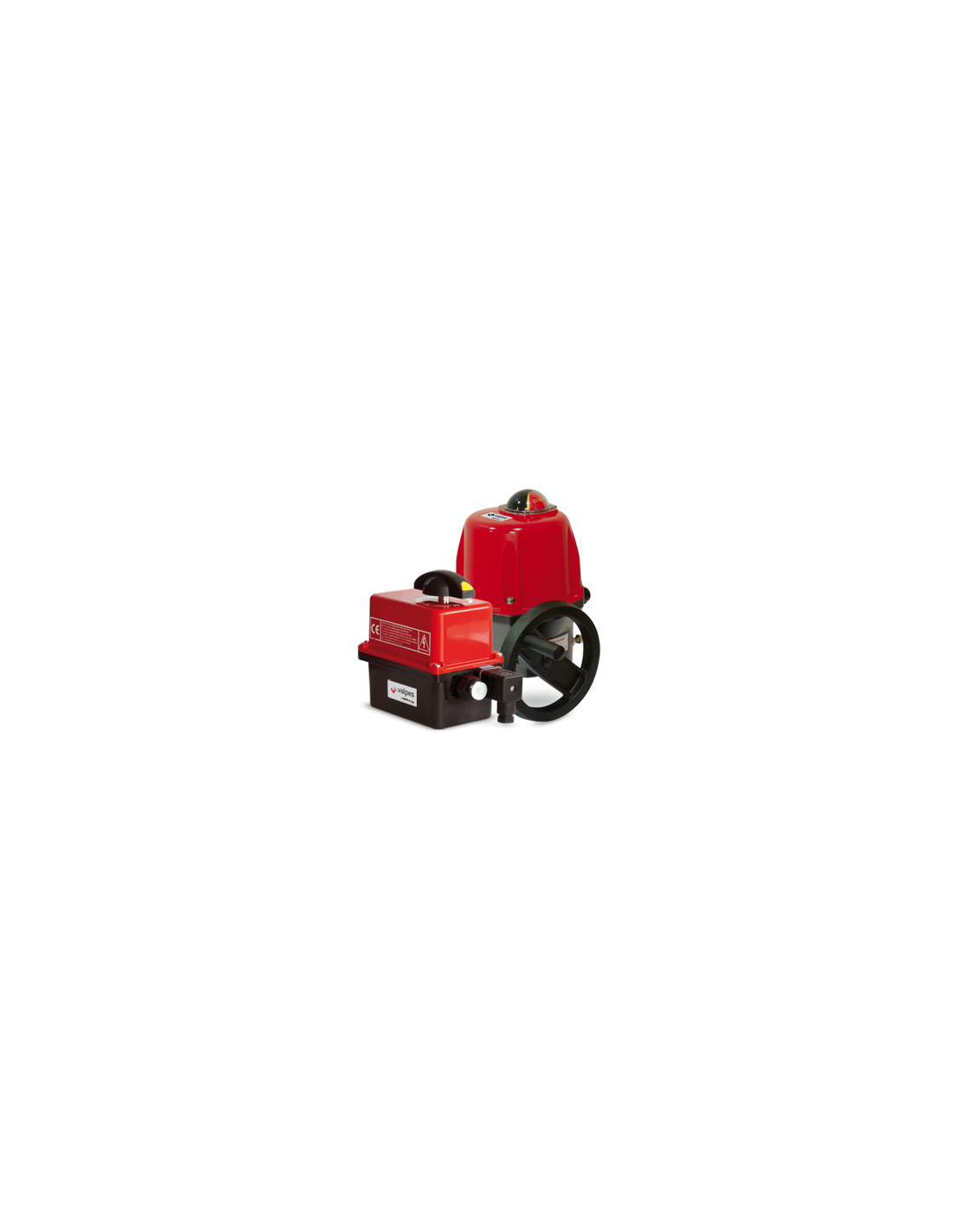

The Valpes Electric Actuator with Positioner offers a versatile and advanced positioning solution for controlling valves with precision. Ranging from 20 to 2400 Nm, these actuators support proportional control via 0-10V or 4-20mA signals, making them ideal for applications such as dosing, modulating, flow control, and mixing. Compatible with various series including ER PLUS, VR/VS, and ATEX-certified models, these actuators feature a robust design with an IP66 to IP68 enclosure, integrated anticondensation heater, and multivoltage capability. Key benefits include reversible operation, feedback signals, Bluetooth connectivity, and MODBUS-RTU® fieldbus options. With a temperature range of -20°C to +70°C and features like an electronic torque limiter and manual override, these actuators ensure reliable performance in demanding environments.

Datasheet and documents

Description

DESCRIPTION

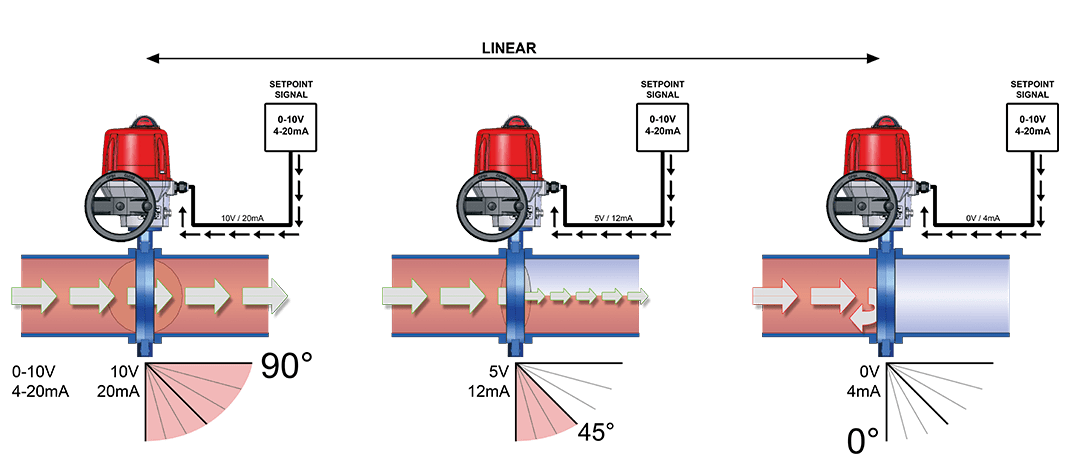

Actuators from 20 to 2400 Nm with advanced positioning solution, allowing the proportional control of the valve with a 0-10V or 4-20mA setpoint signal. Specifically designed applications like dosing, modulating, flow control, filling up (increases the accuracy in the last stage), mixing...

COMPATIBLE SERIES

  • ER PLUS
  • VR/VS
  • VRX/VSX - ATEX
  • LT- low temperatures
  • DV/DVX – DNV-GL and ATEX
  • VT PLUS
  • MT - multiturn

FEATURES

  • Duty rating S4 50% (IEC34 standard)
  • Temperature: -20°C to +70°C
  • Integrated anticondensation heater
  • Torque limiter monitored by software
  • Manual override by hand wheel or outgoing shaft
  • 4 adjustable limit switches 5A
  • Multivoltage actuators
  • Enclosure from IP66 up to IP68 10 meters during 72 hours

CUSTOMER BENEFITS

  • Reversible (example: 20-4 mA)
  • Feedback signal 4-20 mA or 0-10 V
  • Training mode
  • Bluetooth® connected with AXMART® control (P8 option)
  • MODBUS-RTU® fieldbus (P8 option)
  • Electronic torque limiter
  • Rotation up to 180° or 270° (on request)
  • Preset in factory
