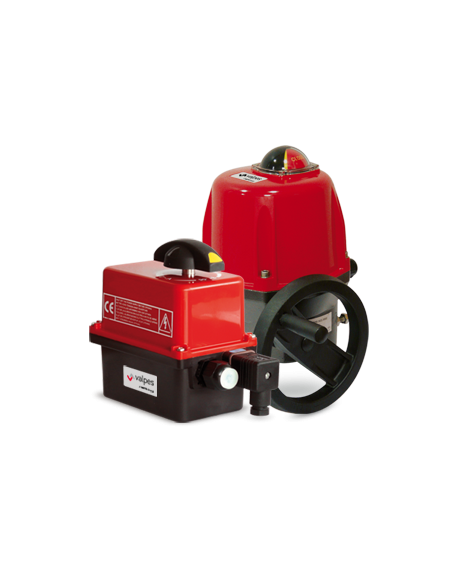

The Valpes Electric Actuator with emergency function offers a torque range from 10 to 2400 Nm, ensuring a return to the initial position during power failures. It features AXMART® Bluetooth® functionality on GS6 models for enhanced control and monitoring. Compatible with various series like ER PLUS, VR/VS, and more, it operates efficiently within temperatures of -10°C to +40°C. Key features include an integrated anticondensation heater, torque limiter, manual override, and multivoltage capability. The actuator is housed in an enclosure rated up to IP68, ensuring durability. Customer benefits include easy "Fail to close/open" switching, real-time system status updates, and Bluetooth® connectivity for seamless setup and control.

Datasheet and documents

Description

DESCRIPTION

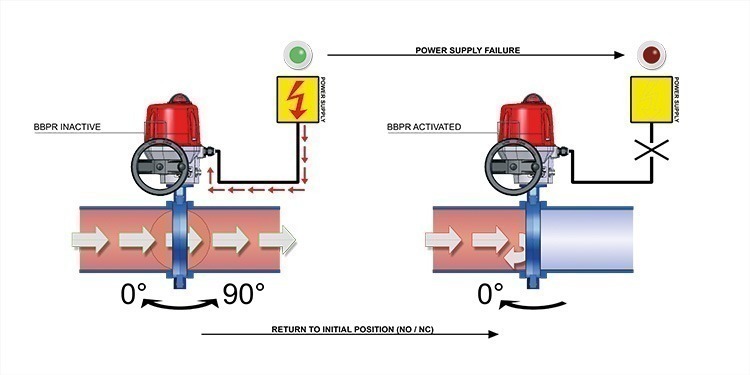

Actuators from 10 to 2400 Nm with emergency function which ensures a return to initial position in case of power failure. This function includes AXMART® Bluetooth®functionality on GS6 models.

COMPATIBLE SERIES

  • ER PLUS
  • VR/VS
  • VRX/VSX - ATEX
  • DV/DVX – DNV-GL and ATEX
  • VT PLUS
  • MT - multiturn

FEATURES

  • Duty rating S4 50% (IEC34 standard)
  • Temperature: -10°C to +40°C
  • On-off control
  • Integrated anticondensation heater
  • Torque limiter monitored by software
  • Failure feedback relay (normal duty, failure)
  • Manual override by hand wheel or outgoing shaft
  • 4 adjustable limit switches 5A
  • Multivoltage actuators
  • Enclosure from IP66 up to IP68 10 meters during 72 hours

CUSTOMER BENEFITS

  • All in one: no additional wiring required
  • "Fail to close" or "Fail to open" easy switch with AXMART v3 application
  • Real-time battery charge and system status information
  • Power shut off after 2mn to avoid battery discharging
  • Quick and easy replacement of the battery

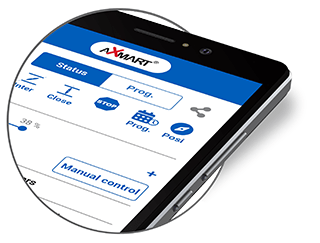

  • Bluetooth® connection for monitoring, programming, control and setup the actuator with AXMART interface.
