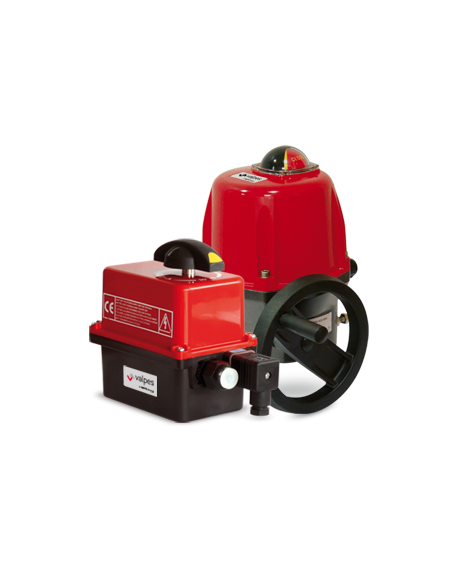

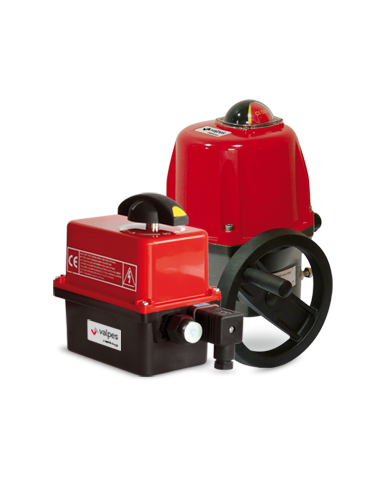

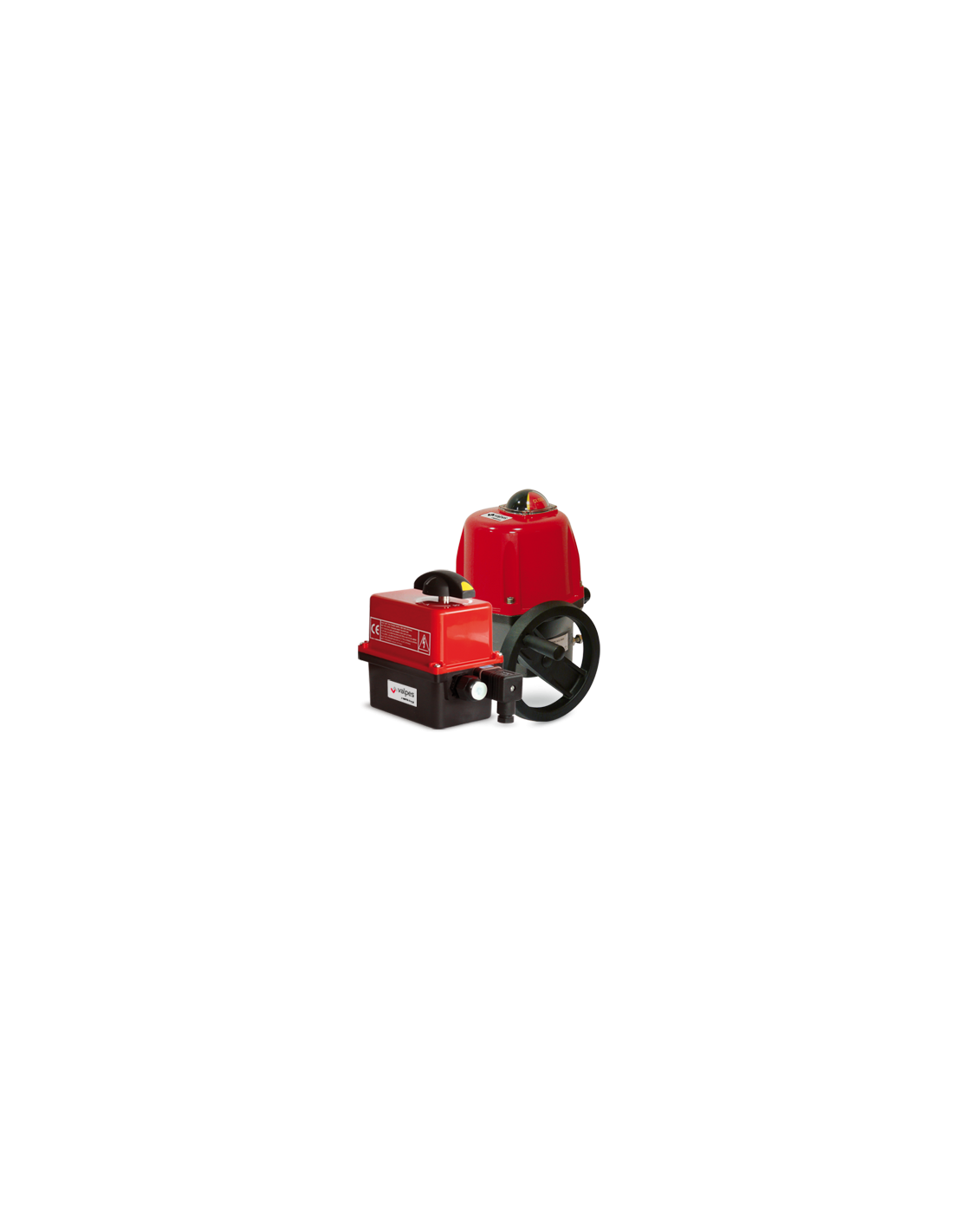

The Valpes Electric Actuator with 3 positions offers precise control for applications requiring an intermediate position between 0° and 90°, 180°, or 270°. With a torque range from 10 to 2400 Nm, it is ideal for 3-way valves or any system needing partial opening/closing. Compatible with various series including ER PLUS, VR/VS, and VT PLUS, it features a duty rating of S4 50%, operates in temperatures from -20°C to +70°C, and includes an integrated anticondensation heater. The actuator supports manual override, multivoltage operation, and boasts an IP66 to IP68 enclosure rating. Customer benefits include 7 limit switches, an electronic torque limiter, and factory presets, ensuring reliable and efficient performance.

Datasheet and documents

Description

DESCRIPTION

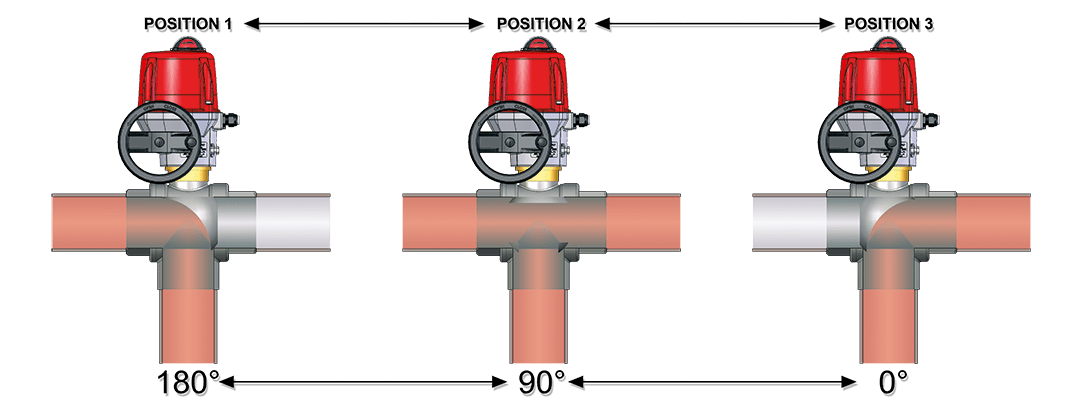

Actuators from 10 to 2400 Nm with an intermediate position between 0° and 90°, 180° or 270°. Can be used 3-way valve or for any application which requires a partial opening/closing before final position.

COMPATIBLE SERIES

  • ER PLUS
  • VR/VS
  • VRX/VSX - ATEX
  • LT- low temperatures
  • DV/DVX – DNV-GL and ATEX
  • VT PLUS

FEATURES

  • Duty rating S4 50% (IEC34 standard)
  • Temperature: -20°C to +70°C
  • Integrated anticondensation heater
  • Manual override by hand wheel or outgoing shaft
  • Multivoltage actuators
  • Enclosure from IP66 up to IP68 10 meters during 72 hours

CUSTOMER BENEFITS

  • 7 limit switches
  • Electronic torque limiter
  • Failure report
  • Rotation up to 270°
  • Preset in factory
