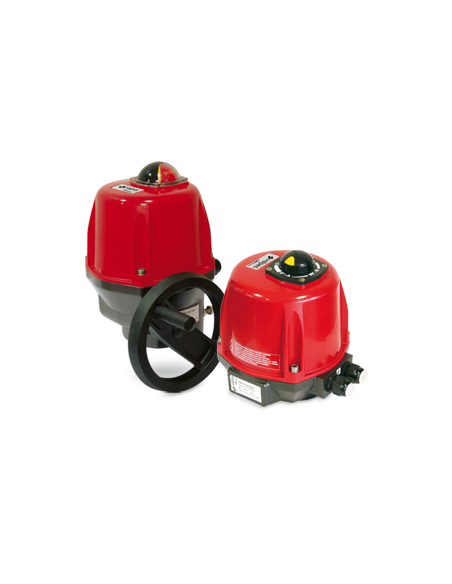

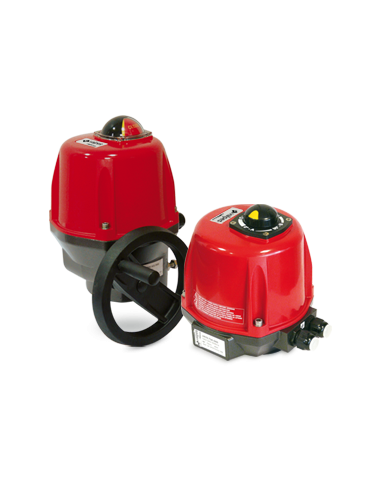

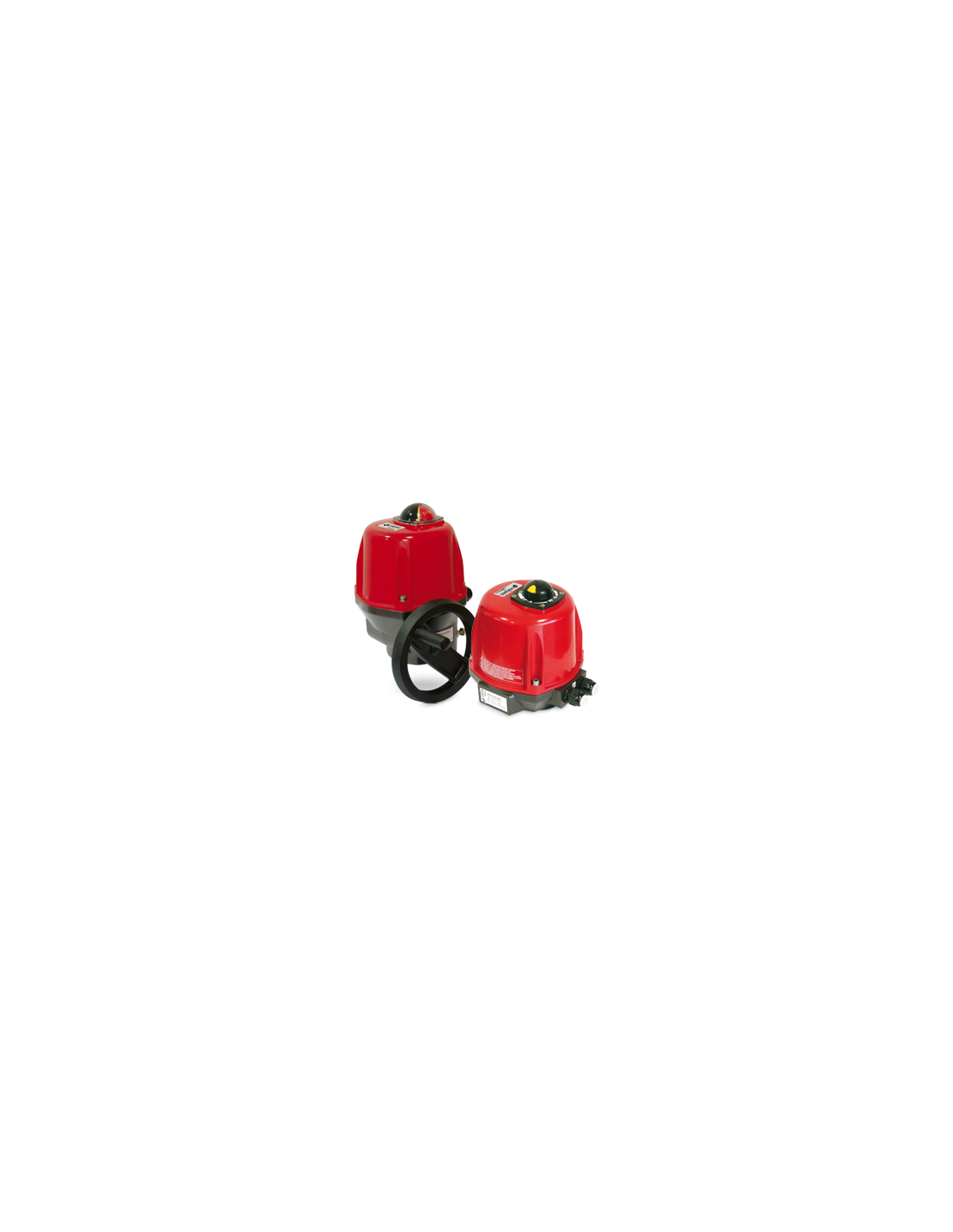

The Valpes Electric Actuator with 3 positions and emergency function is a versatile device designed for precise control and reliability. It offers torque ranges from 25 to 300 Nm and features the BBPR emergency function along with a third position capability. This model includes the AXMART® Bluetooth® option for enhanced connectivity, allowing for easy monitoring, programming, and control. Compatible with various series such as VR/VS, VRX/VSX - ATEX, DV/DVX – DNV-GL and ATEX, and VT PLUS, it is suitable for diverse applications. Key features include a duty rating of S4 50%, a temperature range of -10°C to +40°C, manual override, multivoltage capability, and an anticondensation heater. The actuator is designed for user convenience with real-time battery status updates, quick battery replacement, and preset factory settings. It also includes an electronic torque limiter, failure feedback relay, and adjustable limit switches, ensuring efficient and safe operation.

Description

DESCRIPTION

Actuators from 25 to 300 Nm with combination of BBPR emergency function and a third position. This version includes AXMART® Bluetooth®option.

COMPATIBLE SERIES

  • COMPATIBLE SERIES
  • VR/VS
  • VRX/VSX - ATEX
  • DV/DVX – DNV-GL and ATEX
  • VT PLUS

FEATURES

  • Duty rating S4 50% (IEC34 standard)
  • Temperature: -10°C to +40°C
  • Manual override by hand wheel or outgoing shaft
  • 7 adjustable limit switches 5A
  • Multivoltage actuator:

CUSTOMER BENEFITS

  • All in one: no additional wiring required
  • Real-time battery charge and system status information
  • Power shut off after 2mn to avoid battery discharging
  • Quick and easy replacement of the battery
  • Bluetooth® connection for monitoring, programming, control and setup the actuator with AXMART interface.
  • 2 initial position settings: »normally open» or »normally closed»
  • Anticondensation heater
  • Electronic torque limiter
  • Failure feedback relay
  • Rotation up to 180° or 270° (on request)
  • Preset in factory

couple-25-2400.png    IP68.png        resiste.png        3-positions.png
