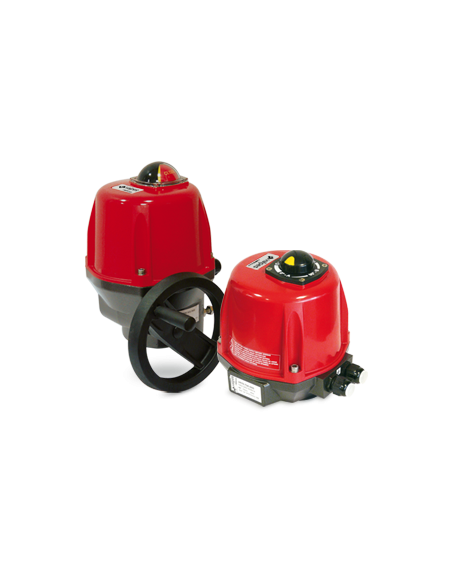

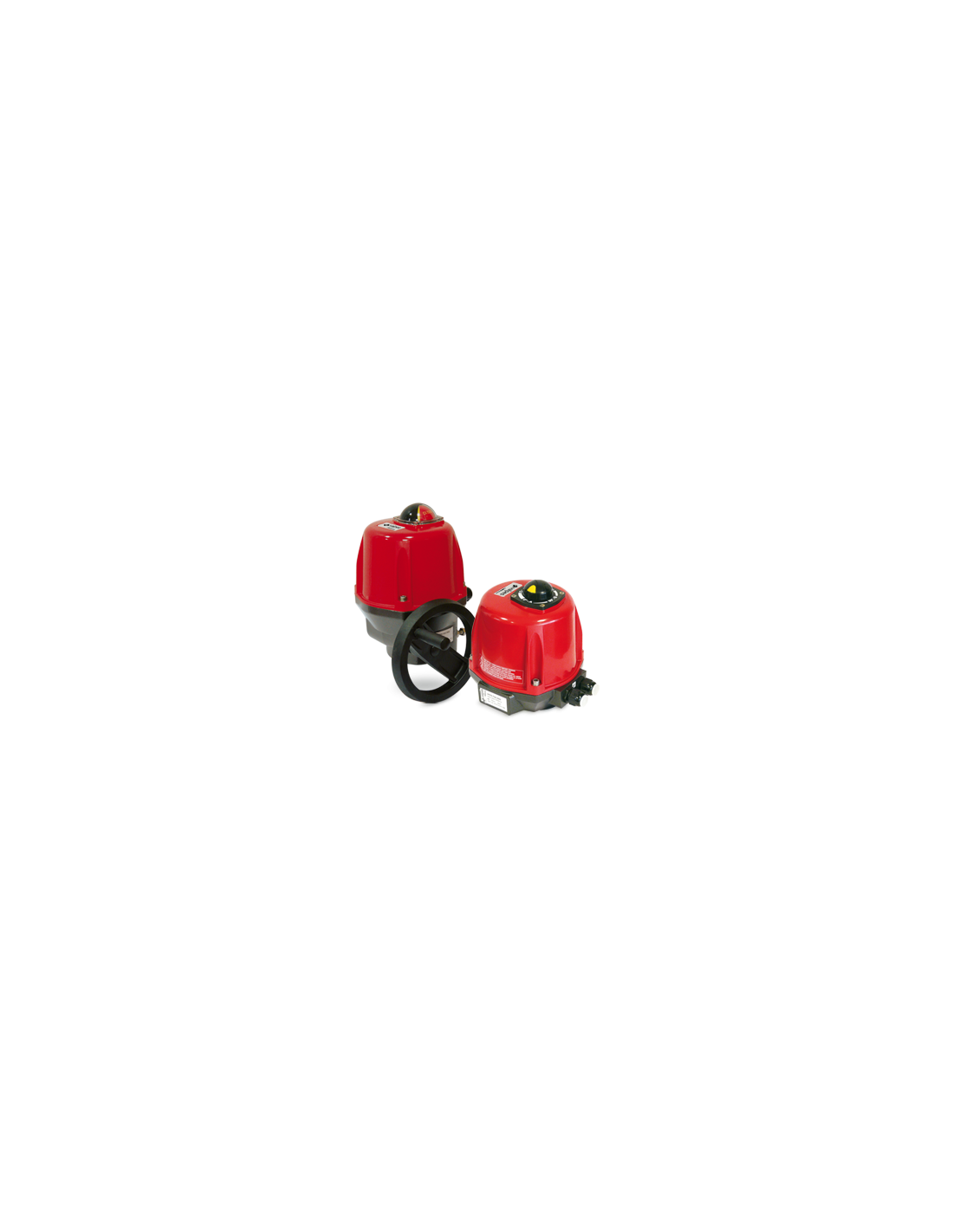

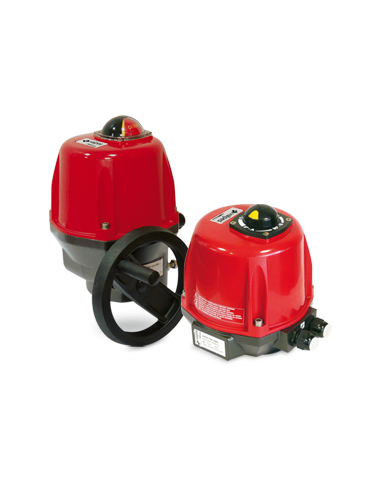

The Valpes Electric Actuator with positioner and emergency function offers a versatile solution for precise control and safety in various applications. With torque capacities ranging from 25 to 2400 Nm, it features the BBPR emergency function and supports analog positioning via 4-20 mA or 0-10 V signals. This model includes the AXMART® Bluetooth® option for easy monitoring and setup. Compatible with several series, including VR/VS and ATEX-certified models, it boasts features like a duty rating of S4 50%, IP68 enclosure, manual override, and multivoltage capability. Customer benefits include real-time system status, quick battery replacement, and Bluetooth® connectivity for enhanced control. The actuator is designed for reliability with features like an anticondensation heater, electronic torque limiter, and failure feedback relay.

Datasheet and documents

Description

DESCRIPTION

Actuators from 25 to 2400 Nm with combination of BBPR emergency function and 4-20 mA or 0-10 V analogic positioning. This version includes AXMART® Bluetooth®option.

COMPATIBLE SERIES

  • VR/VS
  • VRX/VSX - ATEX
  • DV/DVX – DNV-GL and ATEX
  • VT PLUS
  • MT - multiturn

FEATURES

  • Duty rating S4 50% (IEC34 standard)
  • Temperature: -10°C to +40°C
  • Proportional control (4-20 mA or 0-10 V range)
  • Manual override by hand wheel or outgoing shaft
  • 4 adjustable limit switches 5A
  • Multivoltage actuator:
  • Enclosure IP68 up to 10 meters during 72 hours

CUSTOMER BENEFITS

  • All in one: no additional wiring required
  • Real-time battery charge and system status information
  • Power shut off after 2mn to avoid battery discharging
  • Quick and easy replacement of the battery
  • Bluetooth® connection for monitoring, programming, control and setup the actuator with AXMART interface.
  • 2 initial position settings: »normally open» or »normally closed»
  • Setpoint and feedback signal 4-20 mA or 0-10 V
  • Reversible signals (example: 20-4 mA)
  • Anticondensation heater
  • Electronic torque limiter
  • Failure feedback relay
  • Rotation up to 180° or 270° (on request)
  • Preset in factory
