Pressure Excess Valves type S2 | Valfonta

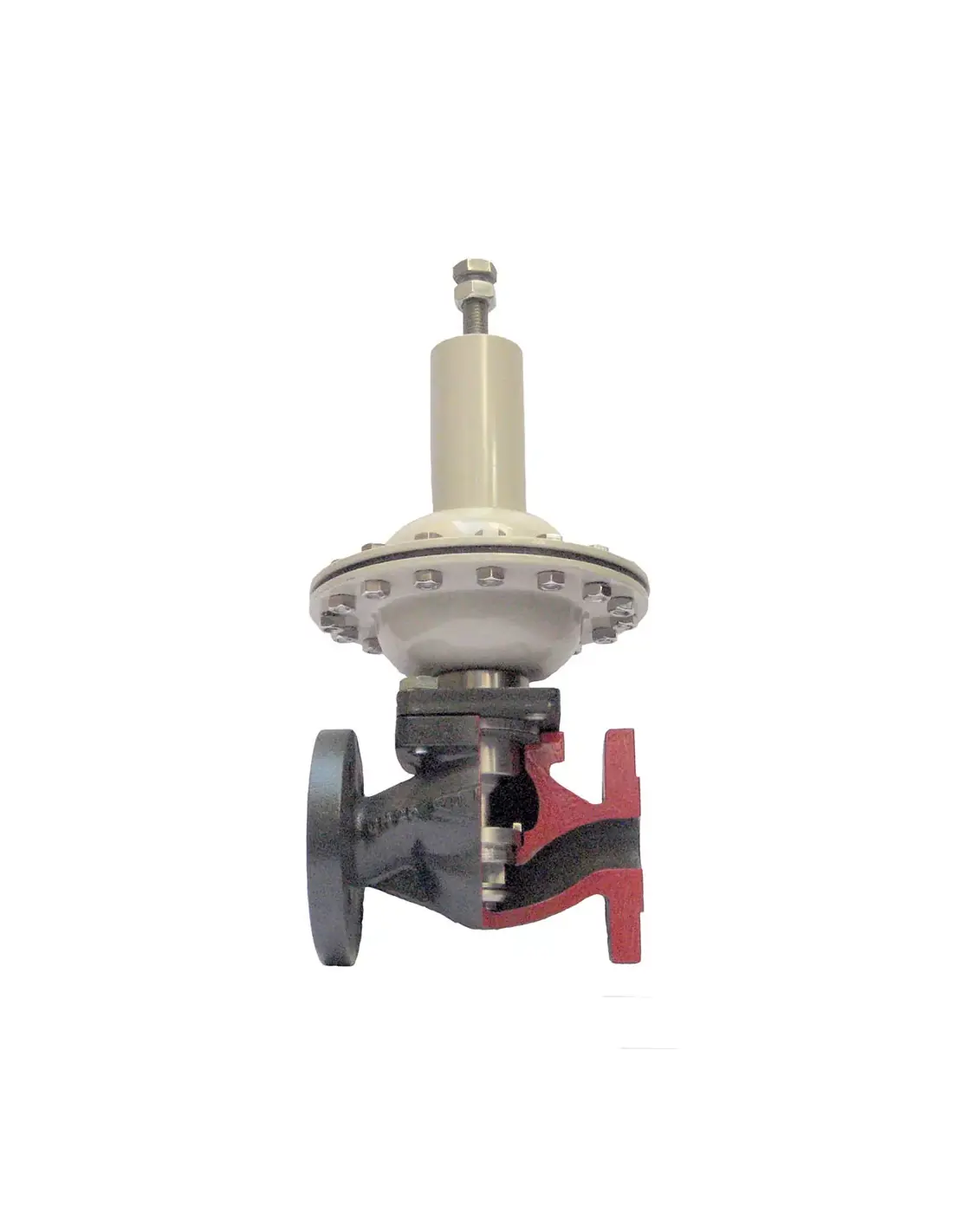

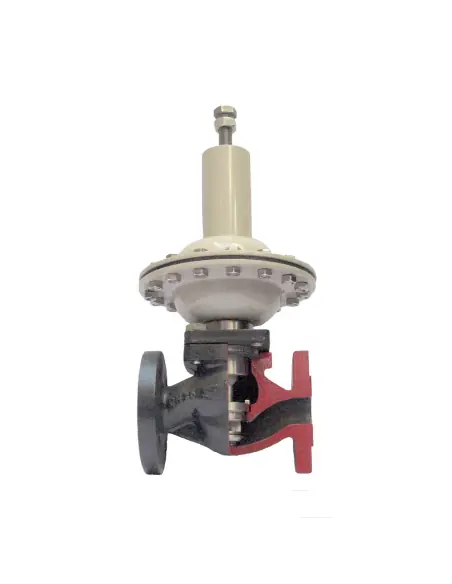

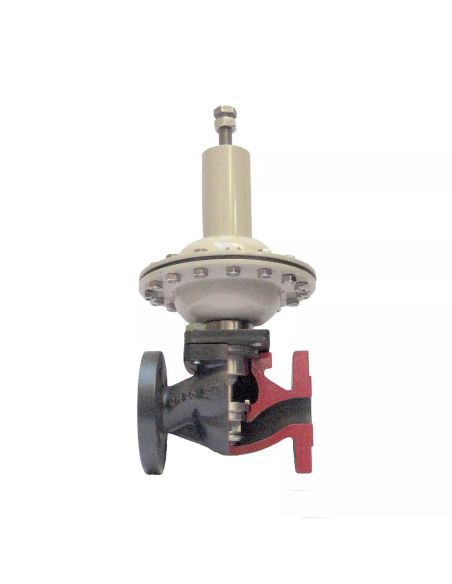

Valfonta S2 – Inlet Pressure Retaining Valve

The Valfonta S2 is a self-acting pressure relief valve, fully balanced, designed to maintain upstream pressure. When the inlet pressure exceeds the set point, the valve opens proportionally. The forces from upstream/downstream pressures are balanced on the plug, distinguishing it from simpler direct-acting versions.

Technical Specifications

  • DN15–DN100
  • Kvs: 3.5 to 115 m³/h
  • PN16, PN25, PN40 / ANSI Class 150–300
  • Connections: EN or ANSI flanges, BSP/NPT upon review
  • Body Materials: GGG40.3, RG10, WCB / 1.0619, 1.4408
  • Trim: Stainless Steel AISI 316L as per technical sheet
  • Max Inlet Pressure: 10 barg, up to 16 barg upon version confirmation
  • Adjustment Range: 0.02–8 barg on page/manual, up to 10 barg in technical leaflet

Fluids and Temperature

The S2 is applicable for steam, compressed air, neutral gases, and liquids. For gases and liquids, the range is -10 to 80°C, while for steam or hot fluids, a condensate pot arrangement is used to protect the diaphragm. Available seals: NBR, EPDM, FKM, PEEK, PTFE, and PTFE+graphite.

Installation

The valve is installed in horizontal piping, with flow according to the body arrow. Upstream filter, inlet gauge, and isolation for maintenance are recommended. An external control line is required for steam and liquids above 125°C, connected to the upstream line approximately 1 m or at least 10×DN away.

Typical Applications

  • Pump and process circuit bypass
  • Pressure maintenance in steam or gas collectors
  • Overpressure relief to secondary line
  • Compressed air, water, steam, and neutral gas lines

Standards and Certifications

Documentation references PED 2014/68/EU, ATEX II 2 GD for suitable zones, and ISO 9001:2015. The S2 is not a safety valve; where equipment protection from overpressure is required, a separate safety device is installed.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • Bronze
  • EN-GJS-400-18-LT (Nodural Iron GGG40.3)
  • 1.0619
  • 1.4408
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40

Datasheet and documents

Description

Pressure excess valve S2: main features


Sizes: DN15 to DN100 (other consult)

Connection: Flanges (EN, ANSI) and Threaded (BSP, NPT)

Fluids: Liquids, gases and steam

Body material: GGG40.3 / WCB / CF3M

Nominal pressure: PN25 – PN40 / CLASS 150 – 300

Inlet pressure max.: 16 barg

Range: 0,02 – 8 barg

Kvs value: Up to 115 m3/h

Certificates

2014/68/UE. - Pressure Equipment Directive Certificate 2014/68/EU. (PDF)

The list of equipment included in the scope of certification of the quality assurance system according to the requirements of module D1 of directive 2014/68 / EU is explained.

ATEX - ATEX certificate of custody of the technical file LOM 14 ATEX. (PDF)

For the equipment manufactured by Valfonta: pressure reducing valves, excess pressure valves, relief valves and pneumatic control valves.

ISO 9001:2015 - System quality certificate according to ISO 9001: 2015 standard (PDF)

Certificate issued by OCA for the design, sale and marketing of globe regulation valves for the control of industrial processes.
