Superior Control and Reliability: Back Pressure Regulator - XLC 420 RP 116 | Mankenberg

Maintain smooth and consistent system pressure with the Back Pressure Regulator - XLC 420 RP 116 | Mankenberg. Crafted for demanding industrial environments, this regulator guarantees precise control and long-lasting durability, making it an essential addition to any process facility. Whether you handle water, gases, or chemicals, it lets you optimize operations with confidence and safety.

Features and Benefits of Back Pressure Regulator - XLC 420 RP 116 | Mankenberg

  • Excellent Pressure Stability: Keep your system at the exact pressure you need, even when demand changes rapidly. This means fewer disruptions, safer operations, and consistent product quality.
  • Corrosion Resistant Build: Manufactured from robust, high-quality materials, the XLC 420 RP 116 stands up against harsh chemicals and aggressive media, ensuring a long working life with minimal maintenance.
  • Easy Installation and Adjustment: Enjoy quick installation and straightforward set-up. The regulator is designed for user-friendly adjustments, so you can fine-tune pressure in moments without specialized tools.
  • Low Maintenance Operation: Forget about frequent checkups or replacements. With its self-contained mechanism, the regulator operates reliably over time, reducing maintenance hours and costs.
  • Wide Range of Applications: Perfect for various industrial uses, from chemical plants and water treatment facilities to energy production and process engineering.

The XLC 420 RP 116 delivers advanced performance in a practical, user-friendly package. Its smart design minimizes leaks and pressure surges, protecting your equipment and preventing unexpected downtime. Visible pressure indicators ensure you stay updated at a glance, while its compact size saves space on tightly packed pipelines.

Engineered by Mankenberg, a trusted name in pressure control, this back pressure regulator gives you peace of mind, knowing your system is secure and properly managed. Choose the Back Pressure Regulator - XLC 420 RP 116 | Mankenberg for enhanced efficiency, safety, and operational excellence in every industrial setting.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Cast Iron
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25

Datasheet and documents

Description

Product features

Standard

  • Body made of spheroidal cast iron GJS 450-10
  • Epoxy coating as per DVGW W270 and KTW recommendation of the German Ministry for Health, thickness min. 250 μm
  • Internal parts, pilot valve and piping made of stainless steel 1.4301
  • Adjustable closing, opening and response speed

Options

  • Body with reduced flow rate
  • Throttle cone
  • Anti cavitation cone
  • Special designs such as differential pressure control valve, flow control valve, float valve, others on request

Technical data

DN
50 - 400
PN
10, 16, 25
p1
0.7 - 7 / 1.5 - 15 / 8 - 24 bar
Kvs
20 - 3235 m3/h
T
70 °C



Advantages

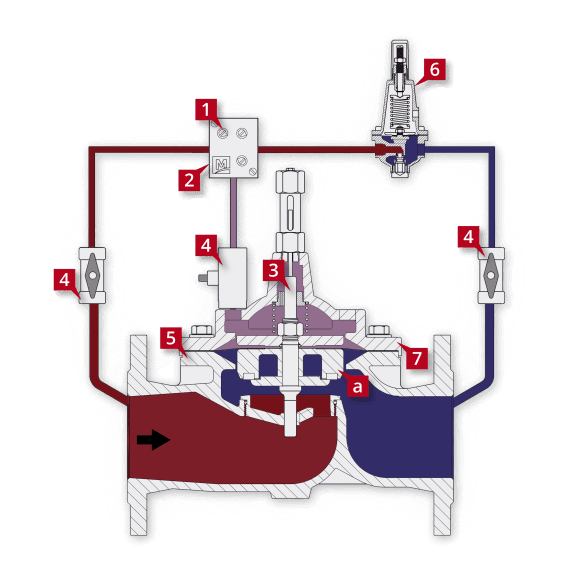

xlc420-rp116-schnitt_1
1

Opening and closing velocities can be set via throttles

Optimal control behaviour

2

Control block with integrated fine filter

Easy to clean

3

Position Indicator

Optical function control

4

„Freezing“ of sense line and control hammer by closing the ball valves

Cleaning / maintenance of control block and pilot valve can be performed during ongoing operation

5

Body made of GIS 450-10 with epoxy coating (min. 250 μm)

Strong corrosion protection acc. to KTW recommendation and DVGW worksheet W270

6

Precise control through pilot valve

Very high control accuracy without external energy

7

Compact design

Minimum space required, easy transport

Options

a

Various seat inserts

Optimal adaptation to various operating conditions

Inlet Pressure

Outlet Pressure

Control Pressure
