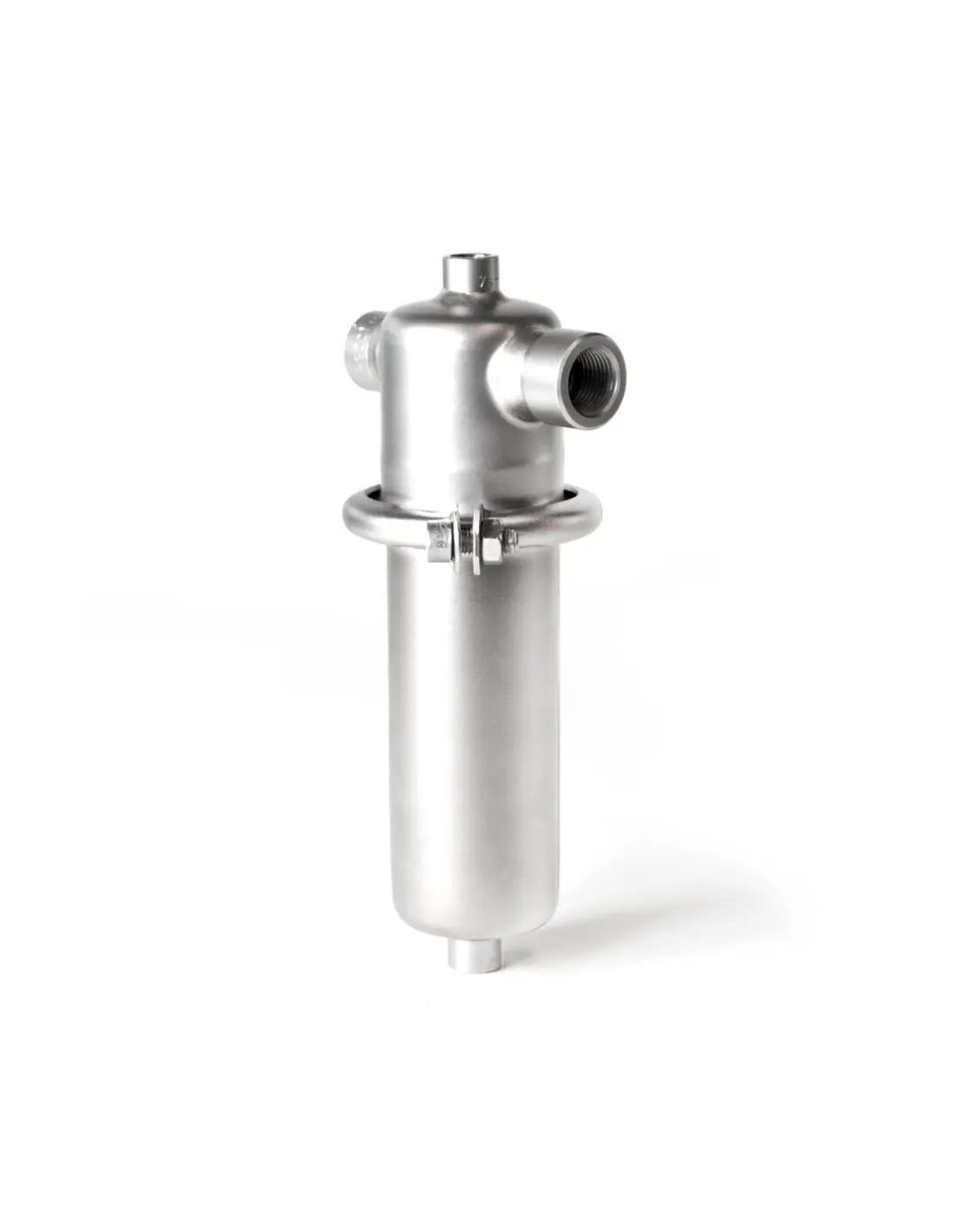

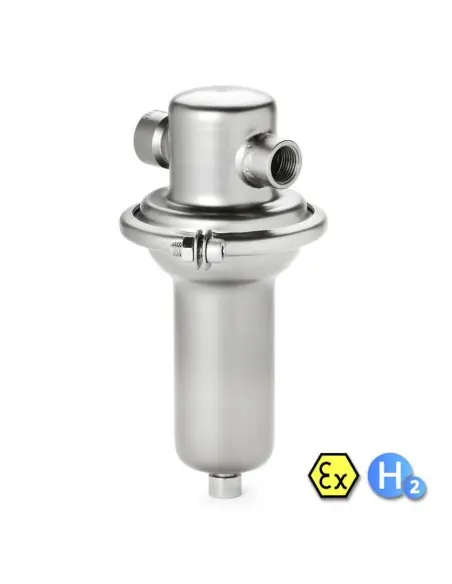

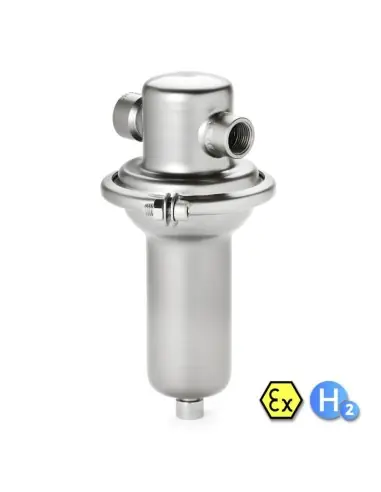

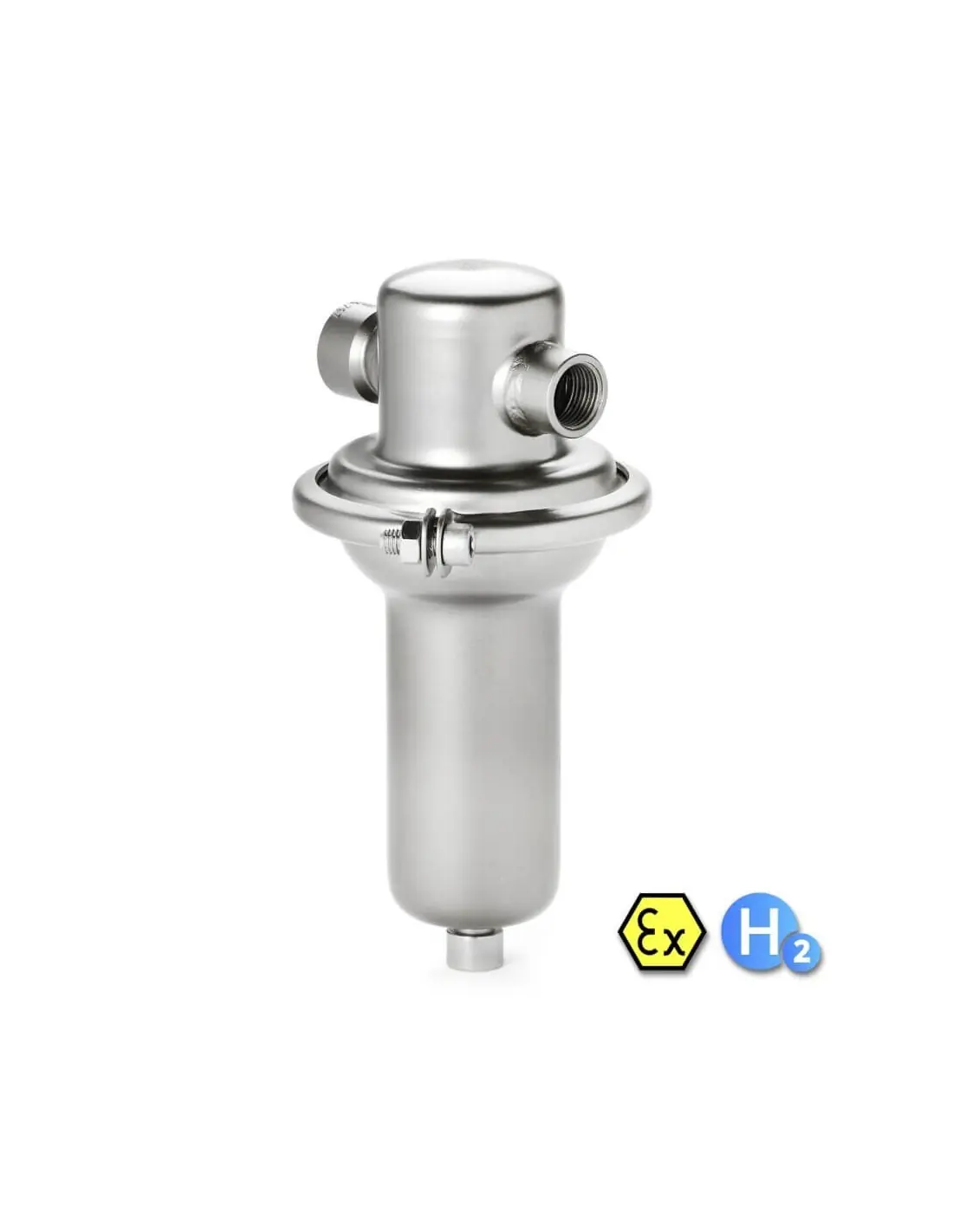

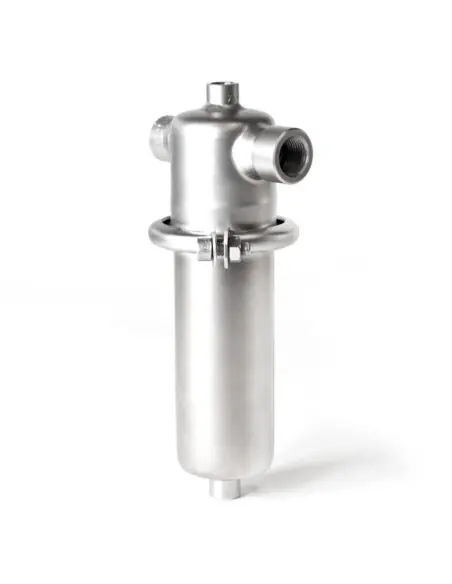

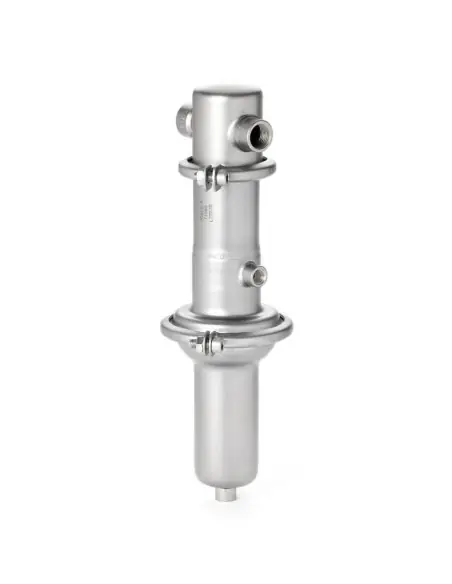

Back Pressure Regulator - UV 3.5/3.5S/3.5Z | Mankenberg

Reliable Performance & Efficiency: Features and Benefits of the Back Pressure Regulator - UV 3.5/3.5S/3.5Z | Mankenberg

Upgrade your industrial processes with the Back Pressure Regulator - UV 3.5/3.5S/3.5Z | Mankenberg, engineered for consistent control and reliable operation. Designed to handle challenging environments, this regulator is your trusted solution for maintaining stable back pressure in pipelines or vessels, ensuring both equipment safety and process efficiency.

  • Consistent Pressure Control: Keep your system running smoothly with precise pressure regulation. The UV 3.5/3.5S/3.5Z ensures your process pressure always stays within the desired range, protecting both sensitive instruments and overall workflow.
  • Durable Stainless Steel Construction: Built with robust materials, this regulator withstands corrosion and harsh industrial conditions. Its long-lasting design minimizes downtime and maximizes productivity.
  • Easy Installation and Maintenance: Compact and straightforward, the UV 3.5/3.5S/3.5Z fits effortlessly into existing systems with minimal fuss. Its smart construction minimizes maintenance, saving precious time for your staff.
  • Versatile Applications: Suitable for gases, liquids, and steam, this regulator adapts to a wide range of industrial processes, delivering reliable performance in any scenario.
  • Safe and Efficient: By stabilizing back pressure, this regulator helps prevent leaks and system overloads. Enjoy peace of mind knowing your equipment is protected and operating efficiently.

The Back Pressure Regulator - UV 3.5/3.5S/3.5Z | Mankenberg stands out with its advanced self-acting mechanism, automatically adjusting to maintain the optimal pressure level. No need for complicated controls or constant supervision—this device works reliably in the background, keeping your operations running seamlessly.

Enjoy trouble-free performance, lower maintenance costs, and improved system safety—all with a compact regulator that delivers impressive results. Choose the Back Pressure Regulator - UV 3.5/3.5S/3.5Z | Mankenberg and experience the difference in your industrial processes.

Datasheet and documents

Description

Product features

Standard

  • Completely made of stainless steel
  • Excellent surface quality
  • Soft sealed
  • Non rising adjusting screw
  • Quick-release body clamp ring
  • Sense line connection (UV 3.5S and UV 3.5Z)

Options

  • ATEX version
  • Pressure gauge connection
  • Leakage line connection and sealed adjusting screw
  • Elastomers as per FDA and USP Class VI

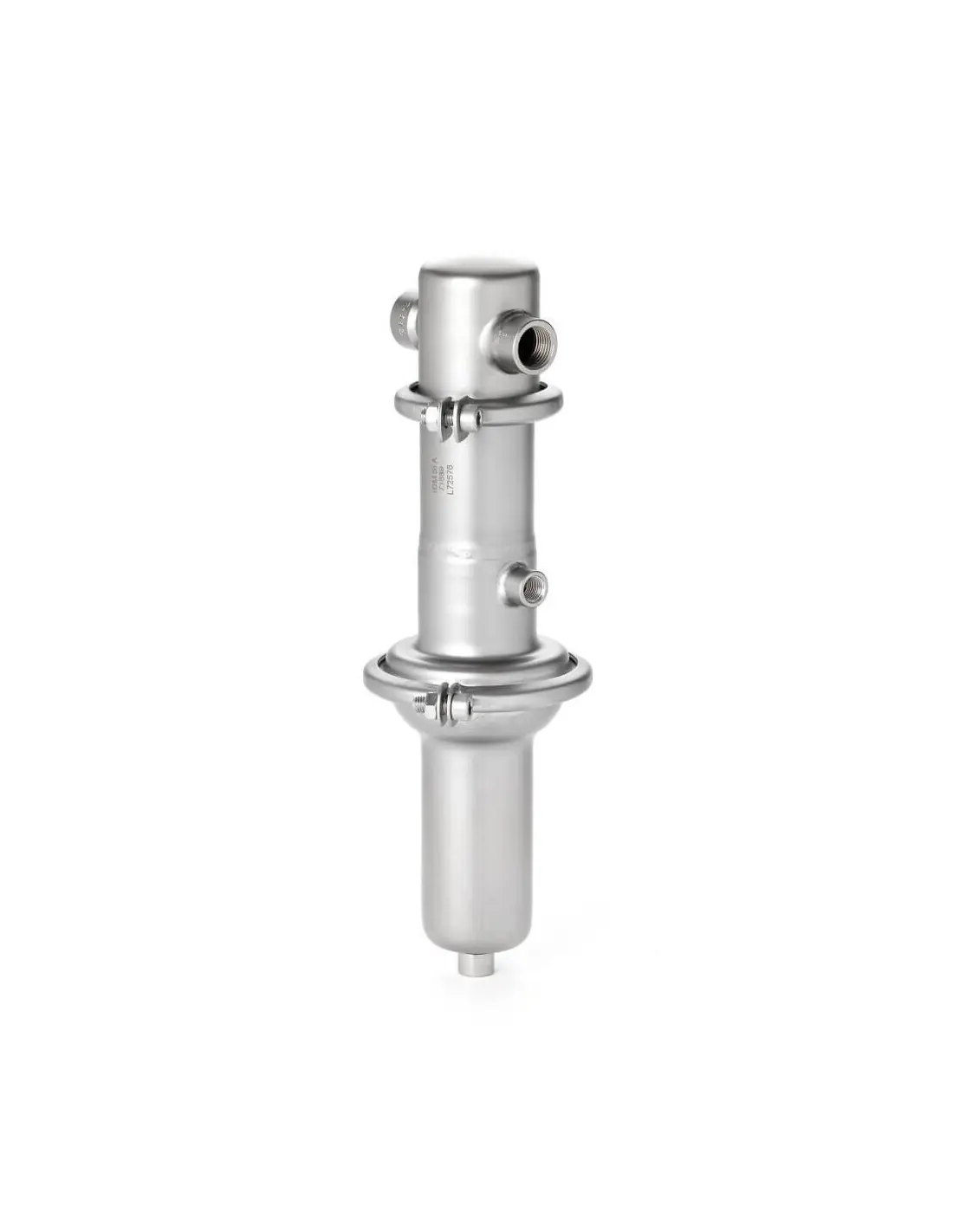

  • Mid section for steam up to 200 °C
  • Electro-pneumatic actuation
  • Aseptic or ANSI flanges, NPT, welding spigots

Technical data

DN
15 - 25
G
1/2
PN
25
p1
0.005 - 20 bar
Kvs
0.2 - 0.9 m3/h
T
200 °C

Advantages

uv3-5-schnitt
1

Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, light and compact

Long operational lifespan, manageable installation, minimum space required

2

Excellent standard surface quality

Easy to clean

3

Mankenberg clamp system

Easy maintenance

4

Many control modules available

Most precise control, also millibar ranges

5

Various connection alternatives: DIN- , ANSI- or JIS flanges, welding ends ...

No adapters or fitting pieces required

6

EASY-CHECK – Non-rising adjusting screw

Function visible from outside, simple and precise setpoint adjustment, unchanged overall height

Options

a

Electro-pneumatic control

b

Leakage line connection and sealed adjusting screw

Leakage line connection and sealed adjusting screw

Inlet Pressure

Outlet Pressure
