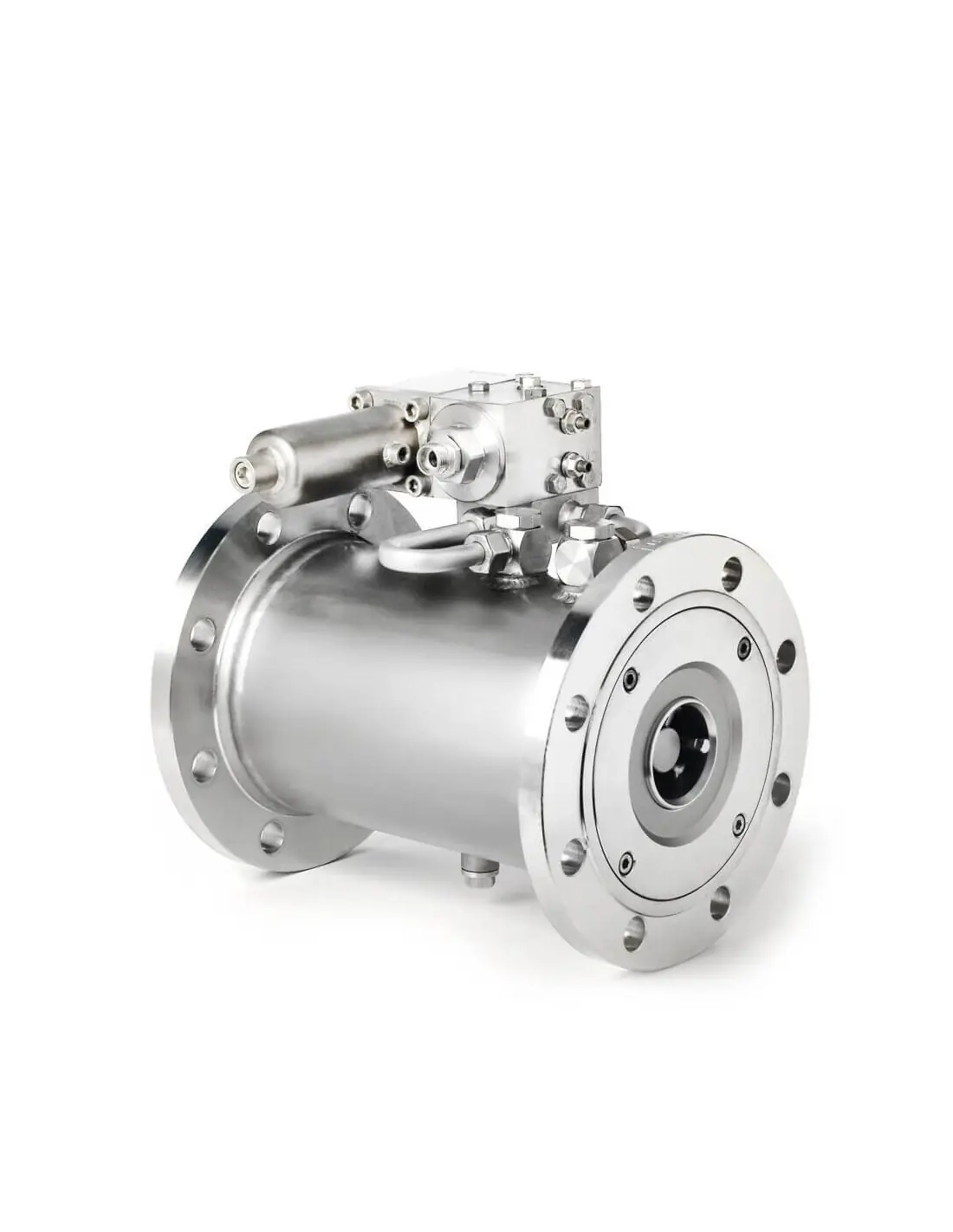

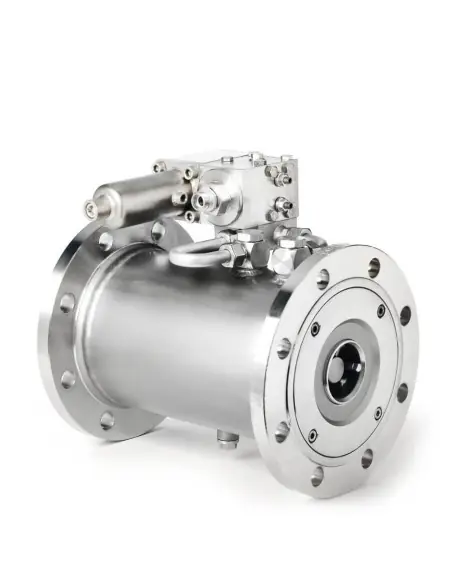

Back Pressure Regulator - RP 824 | Mankenberg

The Back Pressure Regulator RP 824 by Mankenberg is a high-performance device designed to maintain a consistent upstream pressure by releasing excess pressure downstream. It is typically used in industrial applications to ensure stable pressure conditions in pipelines and systems. The RP 824 is known for its robust construction, reliability, and precision in controlling pressure levels, making it suitable for various fluids and gases. Its design allows for easy installation and maintenance, ensuring efficient operation in demanding environments.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Stainless Steel
Pressure Rating (Options)
  • PN 10
  • PN 25

Datasheet and documents

Description

Product features

Standard

  • Body made of steel
  • Pilot valve made of stainless steel
  • Throttle block with integrated strainer and throttle valves made of stainless steel
  • Internal piping made of stainless steel
  • Metallic seal

Options

  • Nominal pressure level up to PN 100
  • Hard-faced valve cone and seat
  • Completely made of stailess steel
  • Special materials such as Duplex, Superduplex, Hastelloy® or titanium
  • ANSI or JIS flanges

Technical data

DN
100 - 800
PN
10 - 25
p1
2 - 20 bar
Kvs
60 - 2100 m3/h
T
130 °C


Advantages

rp814-schnitt_1
1

Precise control through pilot valve

Very high control accuracy without external energy

2

Opening and closing velocities can be set via throttles

Optimal control behaviour

3

Replaceable pilot control

Flexible application

4

Compact design

Minimum space required, easy transport

5

Up to PN 100

Usable for high pressures

Options

a

Available in special materials

Also suitable for extreme requirements

Inlet Pressure

Outlet Pressure

Control Pressure
