Βαλβίδα εξαγωγής αέρα CSA με πρόληψη υδραυλικών πληγμάτων τύπος Saturno AS

Ανακαλύψτε τις κορυφαίες δυνατότητες της Βαλβίδας εξαγωγής αέρα CSA με πρόληψη υδραυλικών πληγμάτων τύπος Saturno AS

Η Βαλβίδα εξαγωγής αέρα CSA με πρόληψη υδραυλικών πληγμάτων τύπος Saturno AS μεταμορφώνει τη διαχείριση των υδραυλικών σας συστημάτων! Πρόκειται για έναν σύγχρονο μηχανισμό που έχει σχεδιαστεί ειδικά για αγωγούς νερού και στοχεύει στην αποτελεσματική απομάκρυνση του αέρα, ενώ ταυτόχρονα προστατεύει το δίκτυο από τα επικίνδυνα υδραυλικά πλήγματα.

Κύρια Χαρακτηριστικά & Πλεονεκτήματα της Βαλβίδας εξαγωγής αέρα CSA με πρόληψη υδραυλικών πληγμάτων τύπος Saturno AS

  • Αποτελεσματική απομάκρυνση αέρα: Εξασφαλίζει αδιάκοπη ροή νερού, προλαμβάνοντας τα μπλοκαρίσματα και τις πιέσεις που προκαλεί ο παγιδευμένος αέρας.
  • Προστασία από υδραυλικά πλήγματα: Με προηγμένο σύστημα πρόληψης, μειώνει τον κίνδυνο ζημιών στους σωλήνες που προκαλούνται από απότομες αυξομειώσεις της πίεσης.
  • Αυξημένη διάρκεια ζωής εξοπλισμού: Συμβάλλει στη διατήρηση άριστης λειτουργίας και μακροζωίας του υδραυλικού σας δικτύου χωρίς επιπλέον φθορές.
  • Απλή εγκατάσταση: Ο εργονομικός σχεδιασμός επιτρέπει εύκολη τοποθέτηση ακόμη και από άτομα με περιορισμένη εμπειρία.
  • Αξιόπιστη λειτουργία: Κατασκευασμένη από ανθεκτικά υλικά, αντέχει σε υψηλές πιέσεις και διαρκεί στην πάροδο του χρόνου, χωρίς ανάγκη τακτικής συντήρησης.
  • Εξοικονόμηση νερού και ενέργειας: Βελτιώνει τη διαχείριση του νερού, περιορίζοντας τις απώλειες και τις βλάβες που προκαλούν τα πλήγματα και τα αέρια.

Η Βαλβίδα εξαγωγής αέρα CSA με πρόληψη υδραυλικών πληγμάτων τύπος Saturno AS είναι ο ιδανικός βοηθός για όσους επιθυμούν ένα ασφαλές και αποδοτικό σύστημα παροχής νερού. Αναβαθμίστε το δίκτυό σας με τη βαλβίδα που συνδυάζει αξιοπιστία, τεχνογνωσία και πραγματικά οφέλη στην καθημερινότητά σας. Επιλέξτε την για σιγουριά και προστασία τώρα και στο μέλλον!

Τυποποίηση (Επιλογές)
  • DIN
Σύνδεση (Επιλογές)
  • Φλαντζωτή
Υλικό Κατασκευής (Επιλογές)
  • Ductile Cast Iron
Ονομαστική Πίεση (Επιλογές)
  • PN 10
  • PN 16

Τεχνικά Φυλλάδια / Οδηγίες Χρήσης / Λοιπά

Περιγραφή

Anti-shock water combination air valve for underground installations

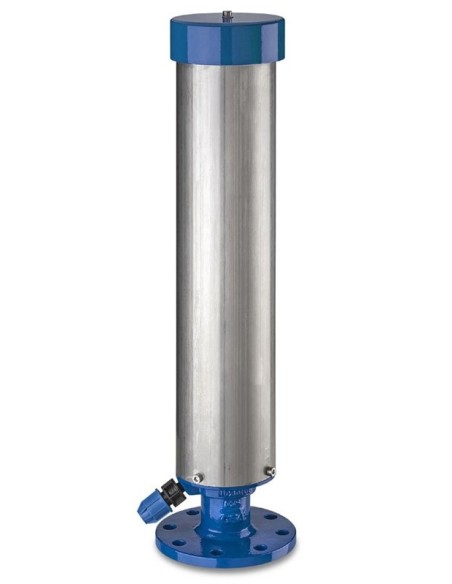

The CSA Mod. Saturno AS is a complete assembly including the CSA anti-water hammer single chamber double function air valve and the main stand pipe along with built in shut-off system to contain it and make it suitable for buried underground installation, without the need of any chambers and sectioning devices therefore reducing installation costs. Saturno AS releases air pockets from pressurized pipelines, admits large volume of air in the event of pipe draining/burst, to prevent vacuum and negative pressure conditions, and allows the controlled air discharge to avoid water hammer events. Maintenance can be carried out from the top even when the system is under pressure, thanks to the built in isolating device, and a drain on the bottom of the pipe will prevent accumulation of water during operation.

Product features

• Air valve body in ductile cast iron GJS 450-10.

• Stand pipe in stainless steel.

• Base in ductile cast iron GJS 450- 10.

• Air release system in stainless steel.

• Floats in solid PP.

• Seat in stainless steel.

• Painting with fluidized bed technology RAL 5005.

Connections

• Flanges size from DN 50 to DN 80 mm.

• Flanges standard EN 1092/2.

Standard

• Design and testing according to EN 1074.

Working conditions

• Pressure range: 10-16 bar; higher with external sectioning device.

• Minimum working pressure: 0.2 bar.

• Treated water maximum 60°C, higher temperature on request.

Πιστοποιητικά

Quality e certifications

Quality in its entirety is now an essential requirement for all businesses that aim at gaining and maintaining their position in today's market.

For this reason we have always had the objective of guaranteeing a product managing cycle which, developing a synergy between the various sectors of the company ensures:

  • Quick and precise information.
  • Evaluation of data received and immediate responses.
  • Rigorous control of incoming and outgoing products.

The production cycle, targets a constant improvement of our products, aims at complete customer satisfaction ensures predetermined margins of tolerance establishing production standards so as to guarantee that the semi-finished products reach the next production stage with the required specifications.

All our valves are made of ductile cast iron GJS 450-10 and in absolute compliance with Italian and European standards and are designed to work at a pressure of 25-40 bars. The work is carried out only by means of numerically controlled lathes, mills, horizontal machining units and subsequently examined step-by-step following strict procedures. Internal components of our valves are largely made of stainless steel or other high resistant materials for the maximum prevention of cavitation effects and corrosion.

Painting, pre-treated by sand-blasting grade SA 2,5, is carried out inside a fluidized bed containing epoxy powder, which guarantees maximum surface protection.

All our products are tested under water pressure and certified.

Company policy

CSA deals with the design and production of material for pressure systems for aqueduct, sewage and industrial use and the marketing of all types of valves and solutions for the regulation of pressure systems in the aqueduct, sewerage and industrial sectors.

Mission

Its corporate mission is to be recognized as a structured and leading company for the production of pressure systems for aqueduct, sewage and industrial use.

Our target market consists of around 65% of foreign customers and the remaining 35% of customers in the Italian territory.

The Quality Management System of CSA s.r.l. must guarantee:

  • customer satisfaction through the creation of products according to the required standards and specifications
  • continuous improvement of the effectiveness / efficiency of all the company processes.

For this reason the management of the company together with all the company resources is committed to the continuous improvement of the performance of the company and therefore aimed at managerial, technical and professional growth.

The principles and methodologies of Quality have therefore been an inspiring model in the management and management of the activities of the company, which is constantly engaged in the analysis of the Customer's expectations, to guarantee your maximum satisfaction.

The Quality System is implemented through processes that take place within the company with the collaboration of individual functions and all employees.

Our strengths are:

  1. Technical development of new products suitable for particular applications also at the request of the customer, in addition to a range of standard products on the price list. The development is carried out by our internal Technical Department with attention aimed at complying with sector regulations and national standards;
  2. Assistance to the customer in all phases of order acquisition, order fulfilment and post delivery assistance thanks to commercial and operational personnel able to intervene to solve problems;
  3. Product quality: we guarantee the quality of our products thanks to a careful control of raw materials and selection of qualified suppliers and to the verification of 100% of the products;
  4. Training and periodic training of our staff;
  5. Periodic preventive maintenance of the equipment and calibration of the measuring instruments.

Company Strategies

The company sets the following business strategies for achieving its objectives:

  • Establish contracts with new retailers worldwide to increase the number of customers also in terms of turnover;
  • Development of post-sales assistance service both by telephone and through on-site assistance;
  • Strengthening contacts with the customer through commercial contacts and direct meetings;
  • Careful selection of suppliers through checks on the same and control of the material in acceptance;
  • Warehouse management and production planning in order to meet customer delivery times;
  • Development of new products and obtaining approvals for the marketing of products suitable for contact with water intended for human consumption.

ISO certificates

QNET_9001 Certification    ISO_9001 Certification

Since 1998 all procedures, without exclusion, are certified according to the regulation ISO 9001:2008 by RINA, Registro Italiano Navale.

Standards applied

Quality management

UNI EN ISO 9000:2005

Quality management system - Fundamentals and vocabulary

UNI EN ISO 9001:2015

Quality management system - Requirements

General standards

UNI EN 1563:2012

Founding - Spheroidal graphite cast irons.

UNI EN 545:2010

Ductile iron pipes, fittings, accessories and their joints for water pipelines - Requirements and test methods

UNI 8574-6:1984

Painted products. Test methods. Surface adherence.

UNI EN ISO 2178:1998

Non-magnetic coatings on magnetic substrates - Measurement of coating thickness - Magnetic method

UNI EN 1092-2:1999

Flanges and their joints - Circular flanges for pipes, valves, fittings and accessories, PN designated - Part 2: Cast iron flanges



Valves

UNI EN 558:2012

Industrial valves - Face-to-face and centre-to-face dimensions of metal valves for use in flanged pipe systems - PN and Class designated valves

UNI EN 1074 -1:2001

Valves for water supply - Fitness for purpose requirements and appropriate verification tests - Part 1: General requirements

UNI EN 12266-1:2012

Industrial valves - Testing of metallic valves - Part 1: Pressure tests, test procedures and acceptance criteria - Mandatory requirements



Air valves

UNI EN 1074-4:2002

Valves for water supply - Fitness for purpose requirements and appropriate verification tests - Part 4: Air valves



Control valves

UNI EN 1074-5:2002

Valves for water supply - Fitness for purpose requirements and appropriate verification tests - Part 5: Control valves
