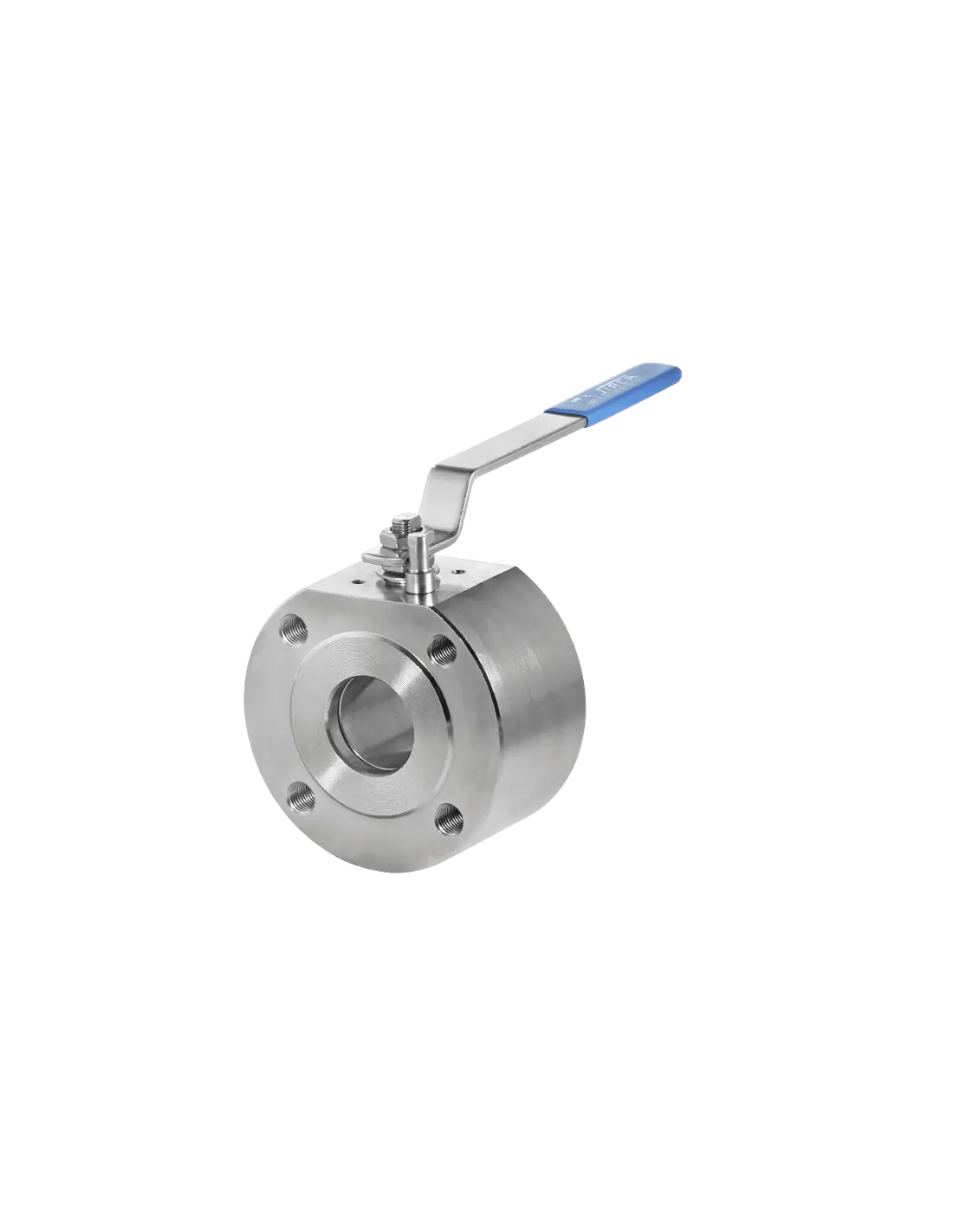

Flanged ball valves S10 series.
Size range: 1/2” ÷ 8” (DN15 ÷ DN200) full bore
Type: Wafer
Design: ASME B16.34, EN 12516-2, ISO 14313
Face to face dimension: EN 558 series 100
Top flange: ISO 5211
Max working pressure: 40 bar – bidirectional
Flange drilling: PN6, PN10, PN16, PN25, PN 40, ANSI class 150, class 300
Operating temperature: -20 °C ÷ +200 °C (-4 °F ÷ +392 °F)
Standard materials: Body: Carbon Steel, Stainless Steel Ball: AISI 304, CF8M Stem: AISI 304, AISI 316 Seat: PTFE+fiber glass, PTFE+carbographite
Leakage class: Rate “A” – No leakage – according to EN 12266-1
Applications: Air, gas, liquids free from impurities for industrial environments, plants, waters treatment, other applications with compatible materials to working conditions
Certifications: 2014/68/UE PED,2014/34/UE ATEX, Fire Safe API 607, ISO 10497, API 6FA SIL – IEC 61508, IEC 61511, GOST-R, CU TR 10 – CU TR 32

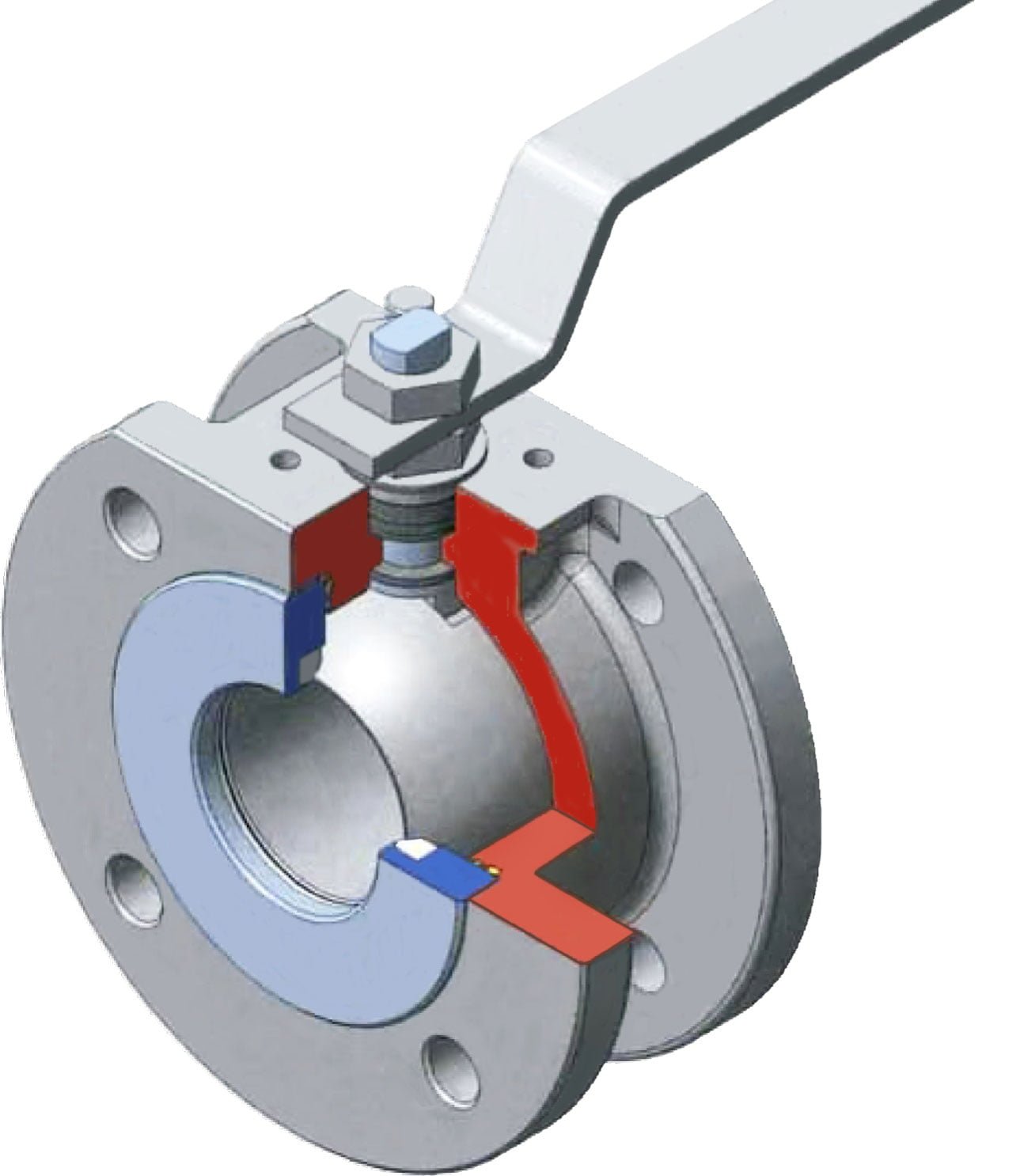

Construction
The stem is anti blow-out and it has an antistatic device.
Body The one-piece valve body obtained from precision casting (inox) or from cutout (carb. steel) has a little face to face (flat body) that allows the easy installation of the valve.
Stem packing adjustable with Chevron rings in P.T.F.E. + carbographite.
The ball has a plus diameter that reduces the pressure drop.
The seat consists of two rings in P.T.F.E. mounted inside the internal slots of the valve to guarantee the perfect tightening.
The threaded metal ring where is inserted the main and the secondary seat, is screwed on the body
Main features
Full bore ball valve - Anti blow out stem - Anti-static device - Stem packing with - hevron rings - Working pressure 40 bar max - Rotary angle 90° - PN10-PN16-PN25-PN40 flanges according to UNI EN1092-1 - The valve can be mounted in both direction’s flow - Top flange in accordance with DIN-ISO 5211 - Construction according to EN12516.2 and ASMEB16.34 - Hand lever, pneumatic or electric actuator.
| Size range | 1/2” ÷ 8” (DN15 ÷ DN200) full bore |
| Type | Wafer |
| Design | ASME B16.34, EN 12516-2, ISO 14313 |
| Face to face dimension | EN 558 series 100 |
| Top flange | ISO 5211 |
| Max working pressure | 40 bar bidirectional |
| Flange drilling | PN6, PN10, PN16, PN25, PN 40, |
| ANSI class 150, class 300 | |
| Operating temperature | -20 ?C ? +200 ?C (-4 ?F ? +392 ?F) |
| Standard materials | Body: Carbon Steel, Stainless Steel |
| Ball: AISI 304, CF8M | |
| Stem: AISI 304, AISI 316 | |
| Seat: PTFE+fiber glass, PTFE+carbographite | |
| Leakage class | Rate “A” - No leakage - according to EN 12266-1 |
| Applications | Air, gas, liquids free from impurities for industrial environments, plants, waters treatment, other applications with compatible materials to working conditions |
| Certifications | 2014/68/UE PED,2014/34/UE ATEX, |
| Fire Safe API 607, ISO 10497, | |
| API 6FA SIL - IEC 61508, IEC 61511, | |
| GOST-R, CU TR 10 – CU TR 32 |
Materials

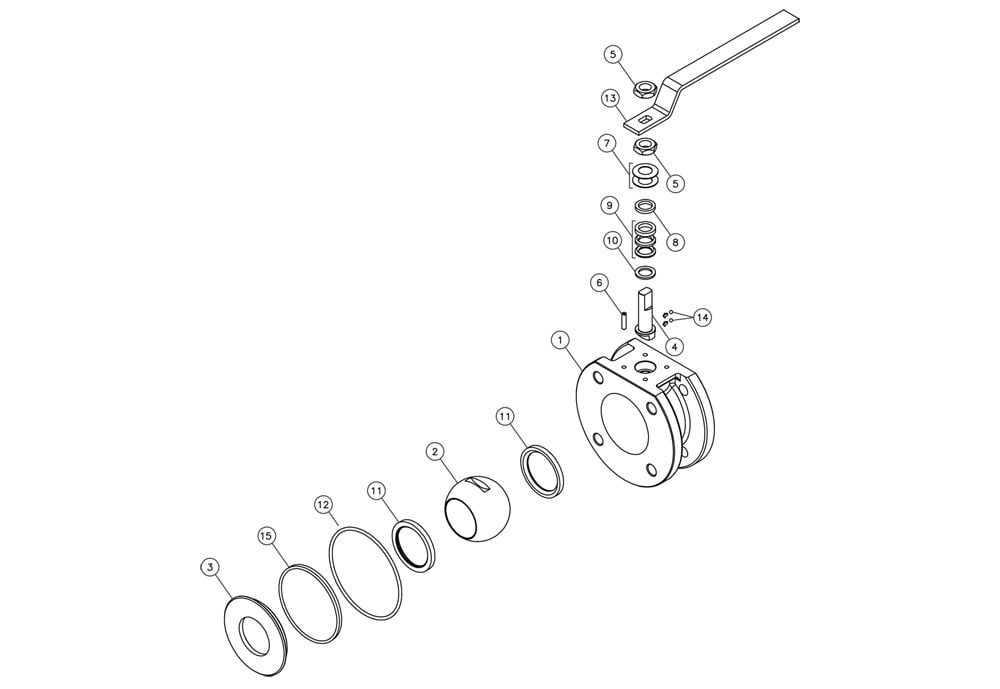

COMPONENTI - components | ||||
|---|---|---|---|---|
| Item | DESCRIZIONE / Description | ACCIAIO CARBONIO/ Carbon steel | ACCIAIO INOX / Stainless steel | Q.ty |
| 1 | CORPO / body | Acc. Carbonio / Carb. Steel ASTM A105 (EN 1.4060) | Acc. Inox / St. steel ASTM A351 CF8M (EN 1.4408) | 1 |
| 2 | SFERA / Ball | Acc. Inox AISI 304 / Stainless steel AISI 304 | Acc. Inox / St. steel ASTM A351 CF8M (EN 1.4408) | 1 |
| 3 | GHIERA - FLANGIA / Threaded ring - Flange | Acc. Carbonio / Carb. Steel ASTM A105 (EN 1.4060) | Acc. Inox / St. steel ASTM A182 F316 (EN 1.4408) | 1 |
| 4 | STELO / Stem | Acc. Inox AISI 304 / Stainless steel AISI 304 | Acc. Inox / St. steel ASTM A182 F316 (EN 1.4408) | 1 |
| 5 | DADO / Nut | Acc. Inox A2 / Stainless steel A2 | Acc. Inox A2 / Stainless steel A2 | 2 |
| 6 | FERMO / Stop pin | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Inox AISI 303 / Stainless steel AISI 303 | 1 |
| 7 | MOLLE A TAZZA / Belleville springs | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Carbonio kanigenato / E.N.P. Carbon steel | 2 |
| 8 | PREMISTOPPA / Stuffing box | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Inox AISI 303 / Stainless steel AISI 303 | 1 |
| 9 | PACCO PREMISTOPPA / Gland packing | P.T.F.E. +25% Carbographite | P.T.F.E. +25% Carbographite | 1 |
| 10 | ANELLO DI TENUTA STELO / Stem seal ring | P.T.F.E. +25% Carbographite | P.T.F.E. +25% Carbographite | 1 |
| 11 | SEDE / Seat | P.T.F.E. +15% fibre vetro / P.T.F.E. +15% fiber glass | P.T.F.E. +15% fibre vetro / P.T.F.E. +15% fiber glass | 2 |
| 12 | O-RING / O-ring | NBR | VITON | 1 |
| 13 | LEVA MANUALE / Hand lever | Fe 360 B zincato / Fe 360 B zinc plating | Acc. Inox AISI 304 / Stainless steel AISI 304 | 1 |
| 14 | DISPOSITIVO ANTISTATICO / Anti-static device | Acc. Inox AISI 316 / Stainless steel AISI 316 | Acc. Inox AISI 316 / Stainless steel AISI 316 | 2 |
| 15 | GUARNIZIONE / Gasket | PTFE | PTFE | 1 |
COMPONENTI - components | ||||
|---|---|---|---|---|
| Item | DESCRIZIONE / Description | ACCIAIO CARBONIO/ Carbon steel | ACCIAIO INOX / Stainless steel | Q.ty |
| 1 | CORPO / body | Acc. Carbonio / Carb. Steel ASTM A350 LF2 | Acc. Inox / St. steel ASTM A351 CF8M (EN 1.4408) | 1 |
| 2 | SFERA / Ball | Acc. Inox AISI 304 / Stainless steel AISI 304 | Acc. Inox / St. steel ASTM A351 CF8M (EN 1.4408) | 1 |
| 3 | GHIERA - FLANGIA / Threaded ring - Flange | Acc. Carbonio / Carb. Steel ASTM A350 LF2 | Acc. Inox / St. steel ASTM A182 F316 (EN 1.4408) | 1 |
| 4 | STELO / Stem | Acc. Inox AISI 304 / Stainless steel AISI 304 | Acc. Inox / St. steel ASTM A182 F316 (EN 1.4408) | 1 |
| 5 | DADO / Nut | Acc. Inox A2 / Stainless steel A2 | Acc. Inox A2 / Stainless steel A2 | 2 |
| 6 | FERMO / Stop pin | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Inox AISI 303 / Stainless steel AISI 303 | 1 |
| 7 | MOLLE A TAZZA / Belleville springs | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Carbonio kanigenato / E.N.P. Carbon steel | 2 |
| 8 | PREMISTOPPA / Stuffing box | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Inox AISI 303 / Stainless steel AISI 303 | 1 |
| 9* | PACCO PREMISTOPPA / Gland packing | P.T.F.E. +25% Carbographite | P.T.F.E. +25% Carbographite | 1 |
| 10 | ANELLO DI TENUTA STELO / Stem seal ring | Graphoil | Graphoil | 1 |
| 11* | SEDE / Seat | P.T.F.E. +15% fibre vetro / P.T.F.E. +15% fiber glass | P.T.F.E. +15% fibre vetro / P.T.F.E. +15% fiber glass | 2 |
| 12* | O-RING / O-ring | NBR | VITON | 1 |
| 13 | LEVA MANUALE / Hand lever | Fe 360 B zincato / Fe 360 B zinc plating | Acc. Inox AISI 304 / Stainless steel AISI 304 | 1 |
| 14 | DISPOSITIVO ANTISTATICO / Anti-static device | Acc. Inox AISI 316 / Stainless steel AISI 316 | Acc. Inox AISI 316 / Stainless steel AISI 316 | 2 |
| 15* | GUARNIZIONE / Gasket | P.T.F.E. | P.T.F.E. | 1 |
| * Parti di ricambio consigliate / Suggested spare parts | ||||
COMPONENTI - components | ||||
|---|---|---|---|---|
| Item | DESCRIZIONE / Description | ACCIAIO CARBONIO/ Carbon steel | ACCIAIO INOX / Stainless steel | Q.ty |
| 1 | CORPO / body | Acc. Carbonio / Carb. Steel ASTM A105 (EN 1.4060) | Acc. Inox / St. steel ASTM A351 CF8M (EN 1.4408) | 1 |
| 2 | SFERA / Ball | Acc. Inox AISI 304 / Stainless steel AISI 304 | Acc. Inox / St. steel ASTM A351 CF8M (EN 1.4408) | 1 |
| 3 | FLANGIA / Flange | Acc. Carbonio / Carb. Steel ASTM A105 (EN 1.4060) | Acc. Inox / St. steel ASTM A182 F316 (EN 1.4408) | 2 |
| 4 | STELO / Stem | Acc. Inox AISI 304 / Stainless steel AISI 304 | Acc. Inox / St. steel ASTM A182 F316 (EN 1.4408) | 1 |
| 5 | DADO / Nut | Acc. Inox A2 / Stainless steel A2 | Acc. Inox A2 / Stainless steel A2 | 2 |
| 6 | FERMO / Stop pin | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Inox AISI 303 / Stainless steel AISI 303 | 1 |
| 7 | MOLLE A TAZZA / Belleville springs | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Carbonio kanigenato / E.N.P. Carbon steel | 2 |
| 8 | PREMISTOPPA / Stuffing box | Acc. Carbonio kanigenato / E.N.P. Carbon Steel | Acc. Inox AISI 303 / Stainless steel AISI 303 | 1 |
| 9 | PACCO PREMISTOPPA / Gland packing | P.T.F.E. +25% Carbographite | P.T.F.E. +25% Carbographite | 1 |
| 10 | ANELLO DI TENUTA STELO / Stem seal ring | Graphoil | Graphoil | 1 |
| 11 | SEDE / Seat | P.T.F.E. +15% fibre vetro / P.T.F.E. +15% fiber glass | P.T.F.E. +15% fibre vetro / P.T.F.E. +15% fiber glass | 2 |
| 12 | VITE / Screws | Acc. Carb. classe 8.8 / Carbon Steel 8.8 class | Acc. Inox classe A2 / Stainless Steel A2 class | 8 |
| 13 | LEVA MANUALE / Hand lever | Fe 360 B zincato / Fe 360 B zinc plating | Acc. Inox AISI 304 / Stainless steel AISI 304 | 1 |
| 14 | DISPOSITIVO ANTISTATICO / Anti-static device | Acc. Inox AISI 316 / Stainless steel AISI 316 | Acc. Inox AISI 316 / Stainless steel AISI 316 | 2 |
| 15 | GUARNIZIONE / Gasket | VITON | VITON | 2 |
