Technical Specifications
- Material: stainless steel, plastic
- Surface: polished
- Dimensions (H x W x D): 115 x 105 x 100 mm
- Operating pressure: 1 to 5 bar
- Flow rate: at least 60 l/min at 1 bar flow pressure
- Water inlet: ¾“ female
Norms / Approvals
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014
- GOST-R, Certificate-No. 0615463 0615463
Product description

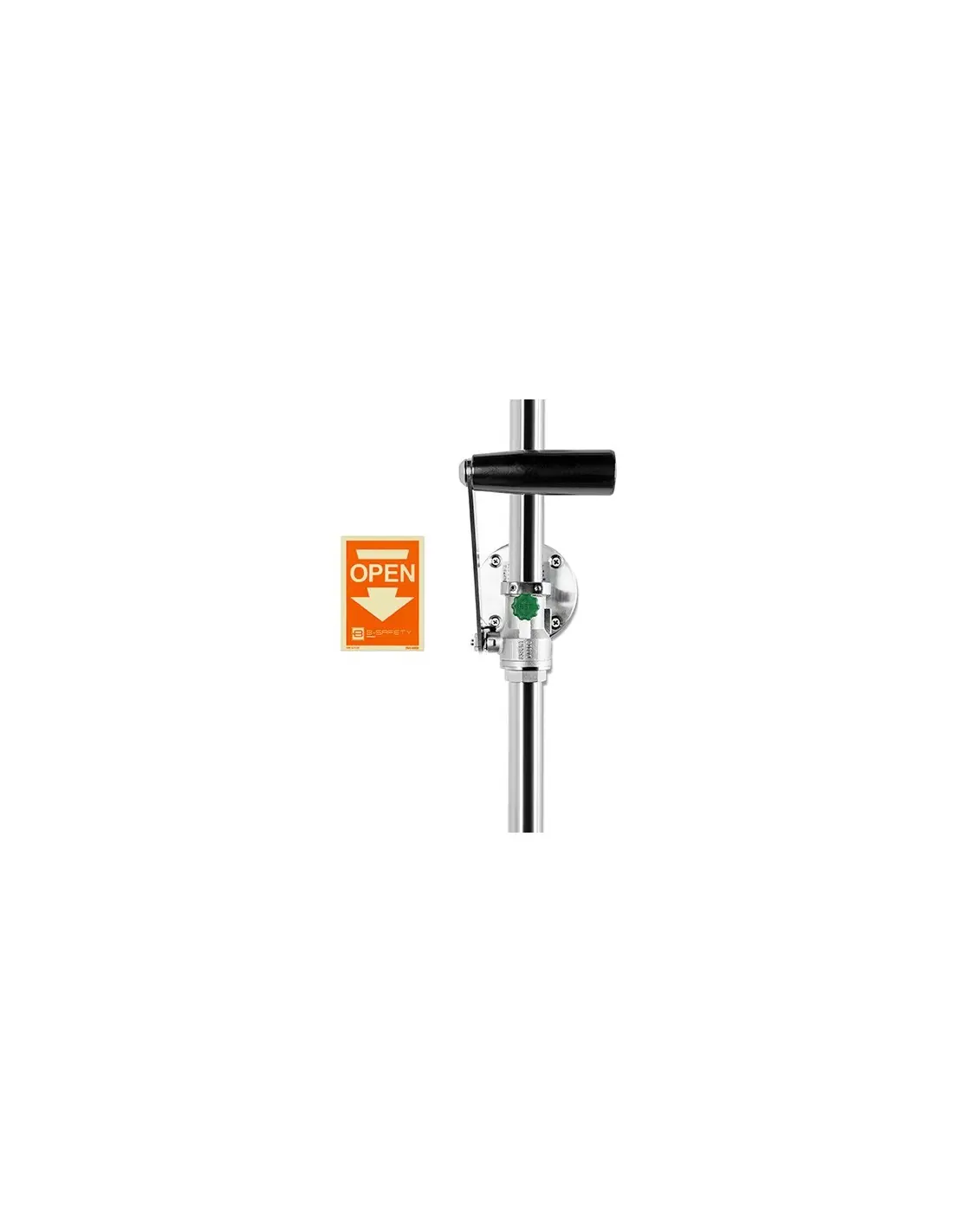

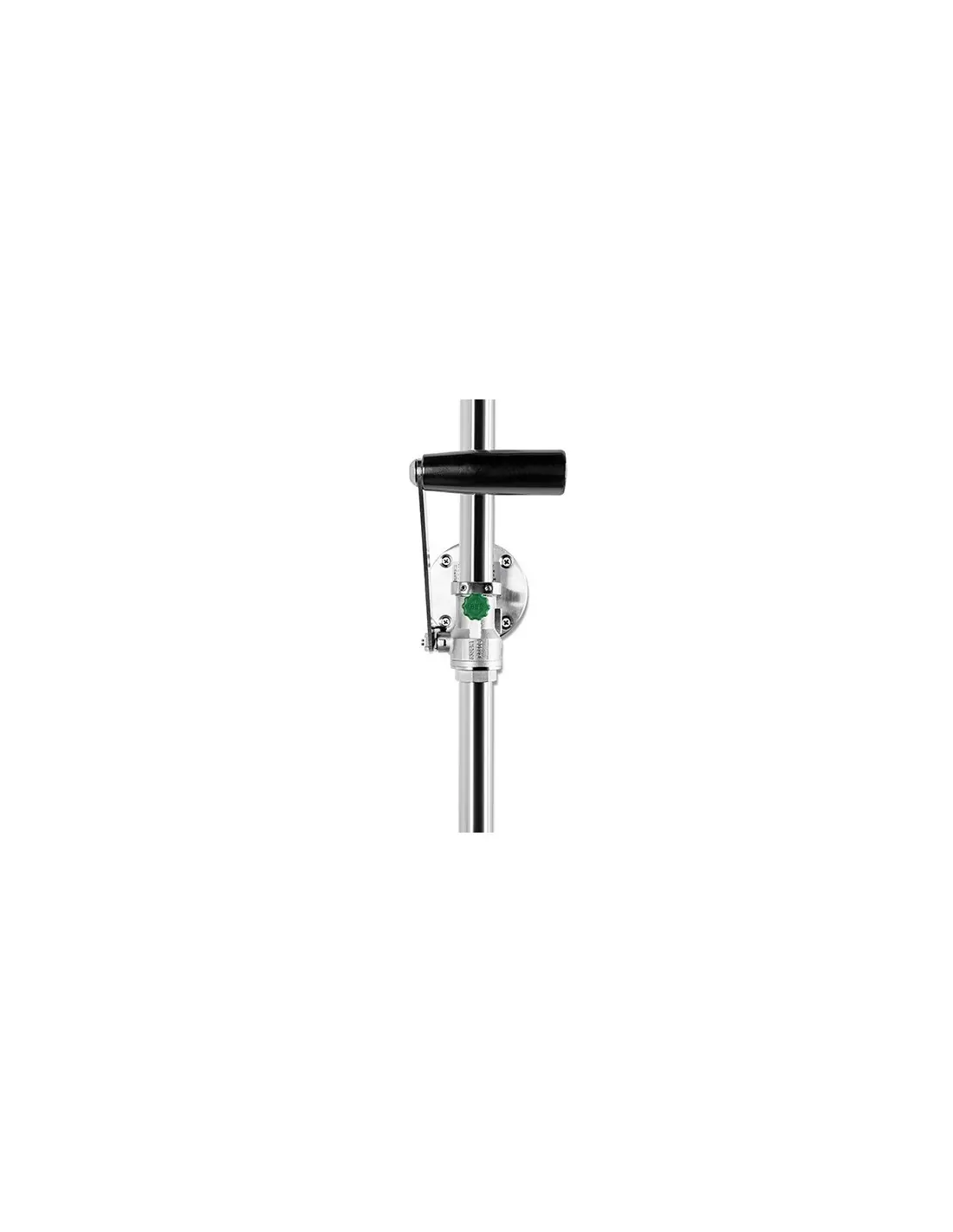

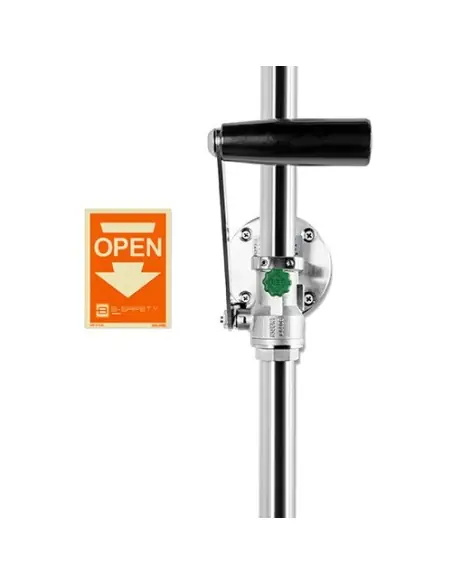

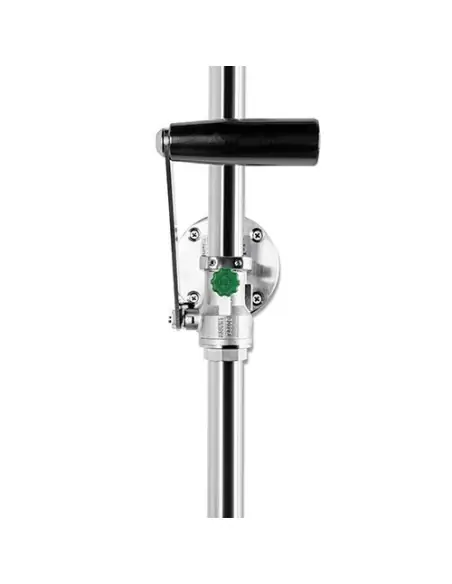

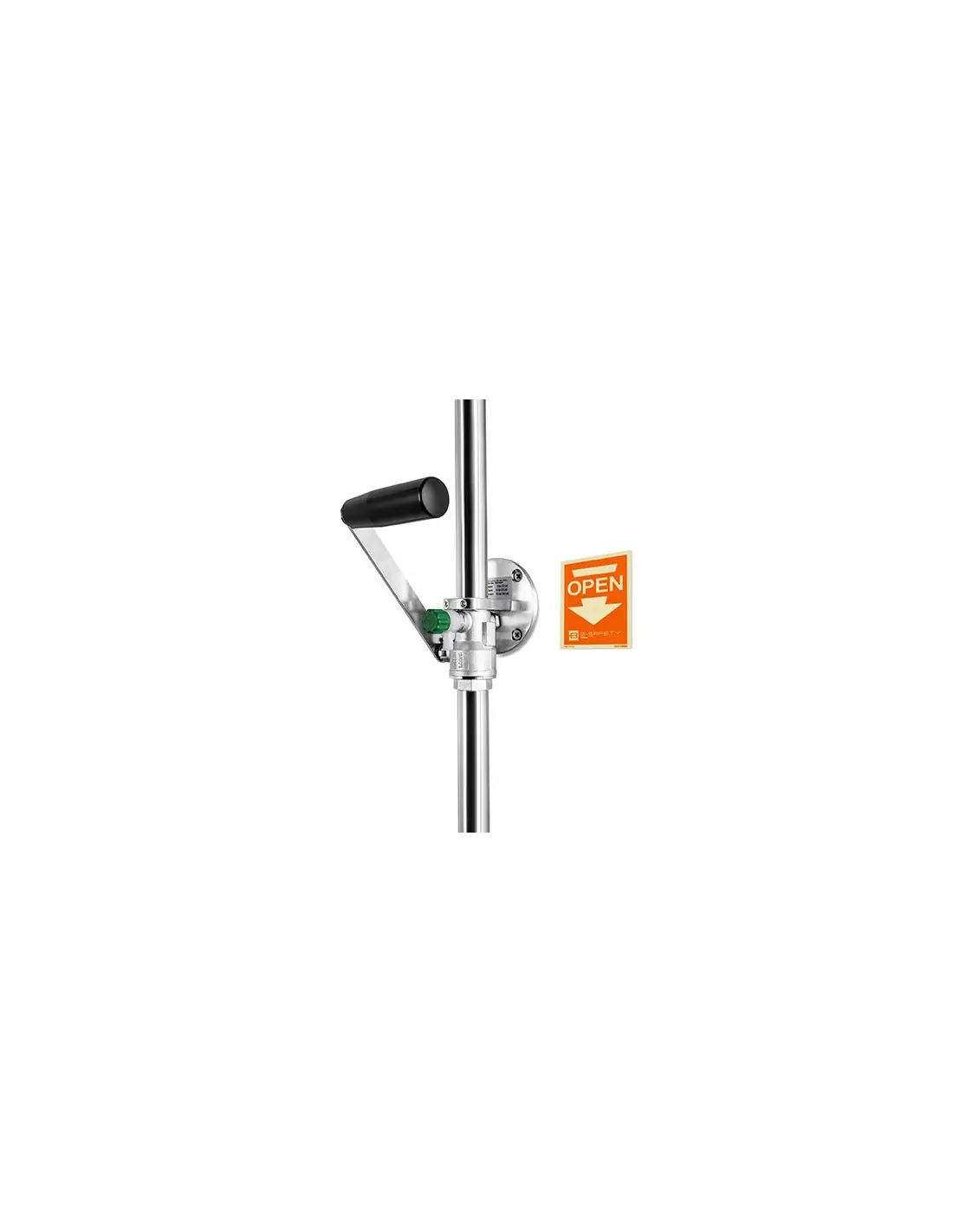

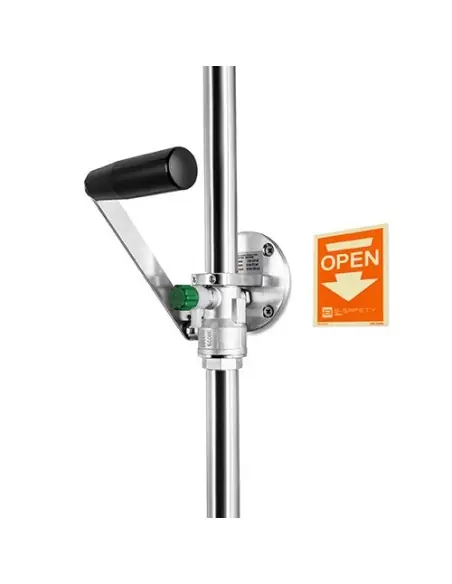

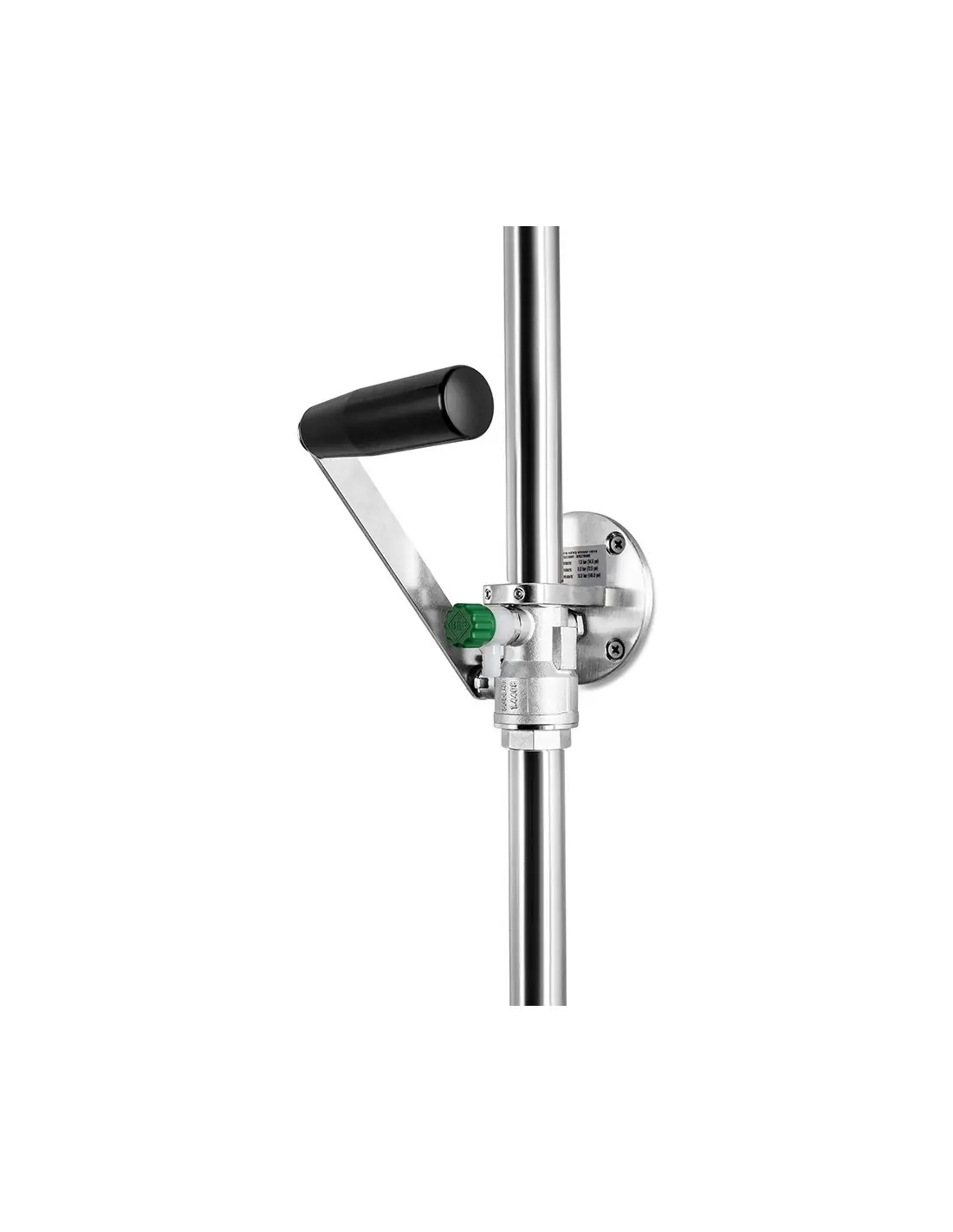

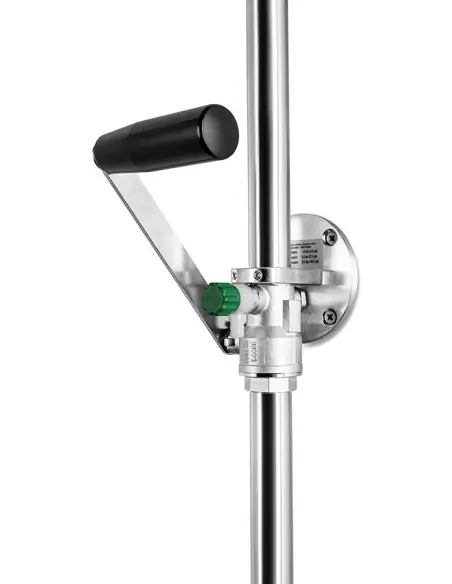

The emergency shower valve consists of a robust ball valve with drinking water approval, which can be mounted either to the right or left of the door. The volume flow is at least 60 liters / minute at 1 bar flow pressure. The valve is operated by a stainless steel lever with a sturdy plastic handle. Mounting at handle height is recommended for this safety shower valve. An optional drain can be used to ensure automatic drainage between the shower head and the valve.
Mounting-Instructions:
For an installation in accordance with EN 15154-1:2006 it must be ensured, that the safety shower installation is self-draining between valve and shower head.
Technical Description
- ball valve with lever actuation on wall flange of stainless steel, DIN-DVGW tested and certificated, water inlet ¾” female
- flow rate at least 60 l/min at 1 bar flow pressure
- opening angle 90°, not self-closing
- lever made of stainless steel, polished, length 160 mm
- robust handle of plastics, black, diameter 25 mm, length 90 mm
- integrated draining valve for automatic or manual emptying
- information sign “OPEN” for confusion-free use in an emergency, orange, photoluminescent according to DIN 67510
- mounting height for lever according to the standards listed below: 0 to 1750 mm height above floor
- according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
- according to ANSI Z358.1-2014, DIN EN 15154-1:2006 and DIN EN 15154-5:2019
