Technical Specifications
- Material: stainless steel
- Surface: polished
- Dimensions (H x W x D): 700 x 172 x 80 mm
- Operating pressure: 1 to 5 bar
- Flow rate: at least 60 l/min at 1 bar flow pressure
- Water inlet: ¾“ female
Norms / Approvals
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014
- GOST-R, Certificate-No. 0615463 0615463
Product description

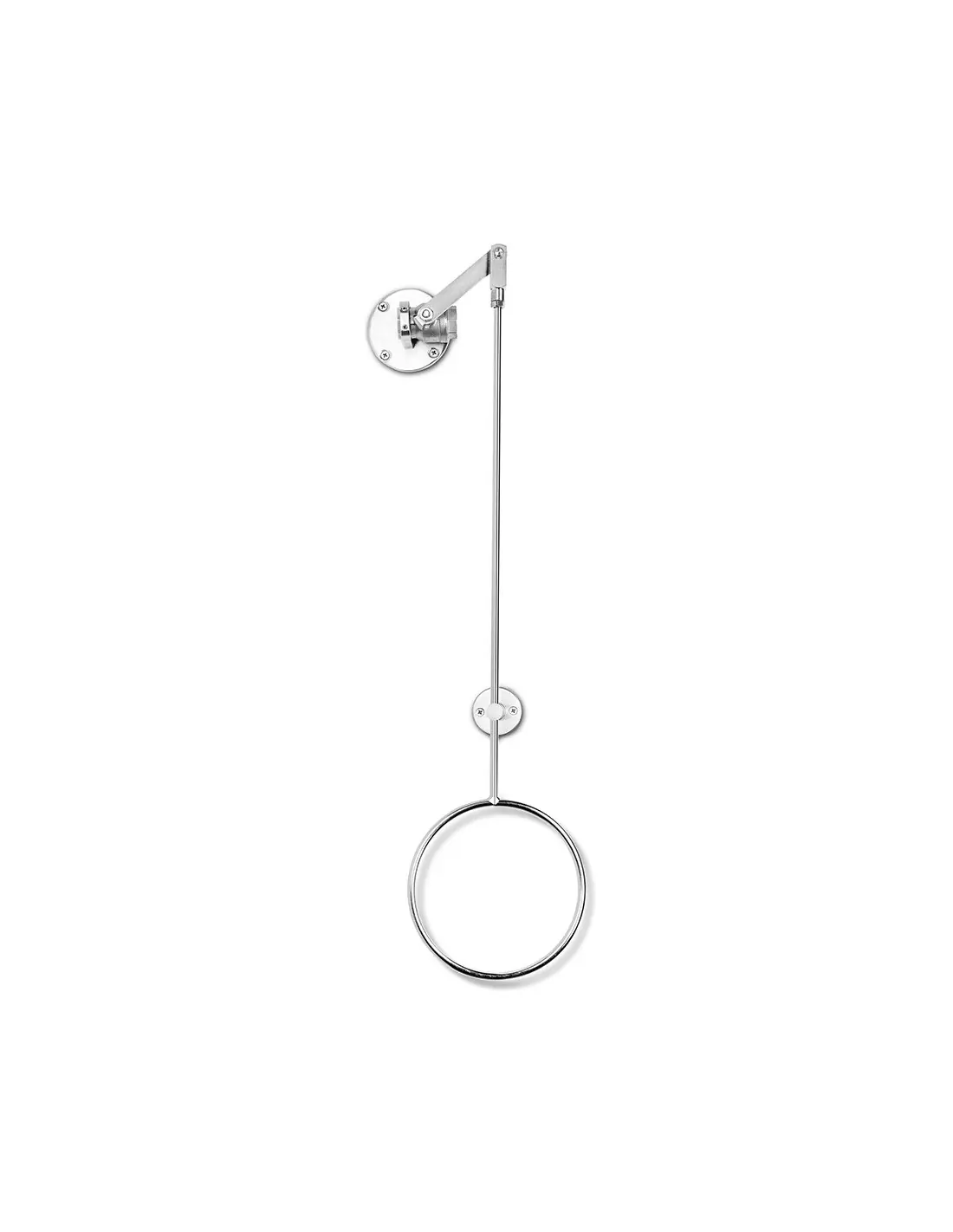

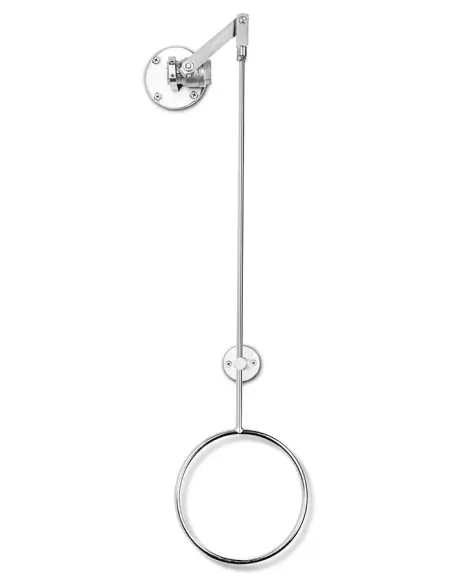

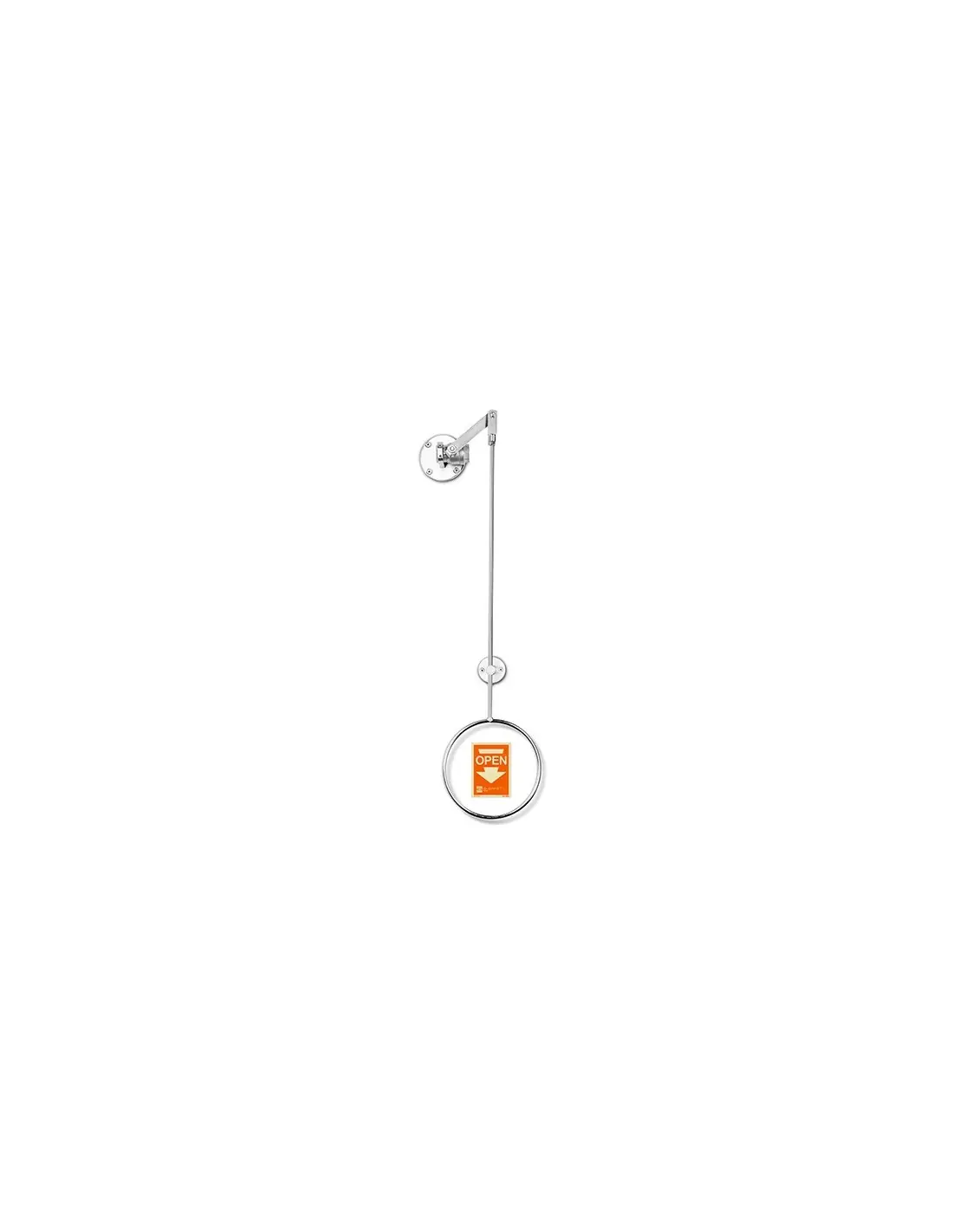

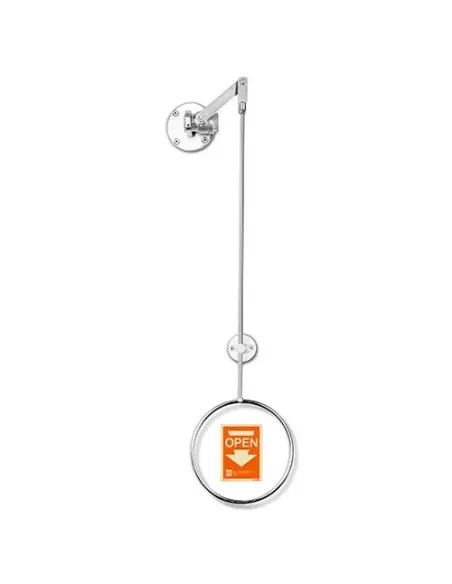

The rod operated safety shower valve consists of a robust ball valve with drinking water approval, which can be mounted either to the right or left of the door. The volume flow is at least 60 liters / minute at 1 bar flow pressure. An additional holder ensures positioning of the pull rod.
Mounting-Instructions:
For an installation in accordance with EN 15154-1:2006 it must be ensured, that the safety shower installation is self-draining between valve and shower head.
Technical Description
- ball valve with pull rod actuation on wall flange of stainless steel, can be mounted either on the right or left side of the door, DIN-DVGW tested and certificated, water inlet ¾” female
- flow rate at least 60 l/min at 1 bar flow pressure
- pull rod with ring handle made of stainless steel, polished, length 700 mm
- holder for pull rod made of stainless steel, polished
- opening angle 90°, not self-closing

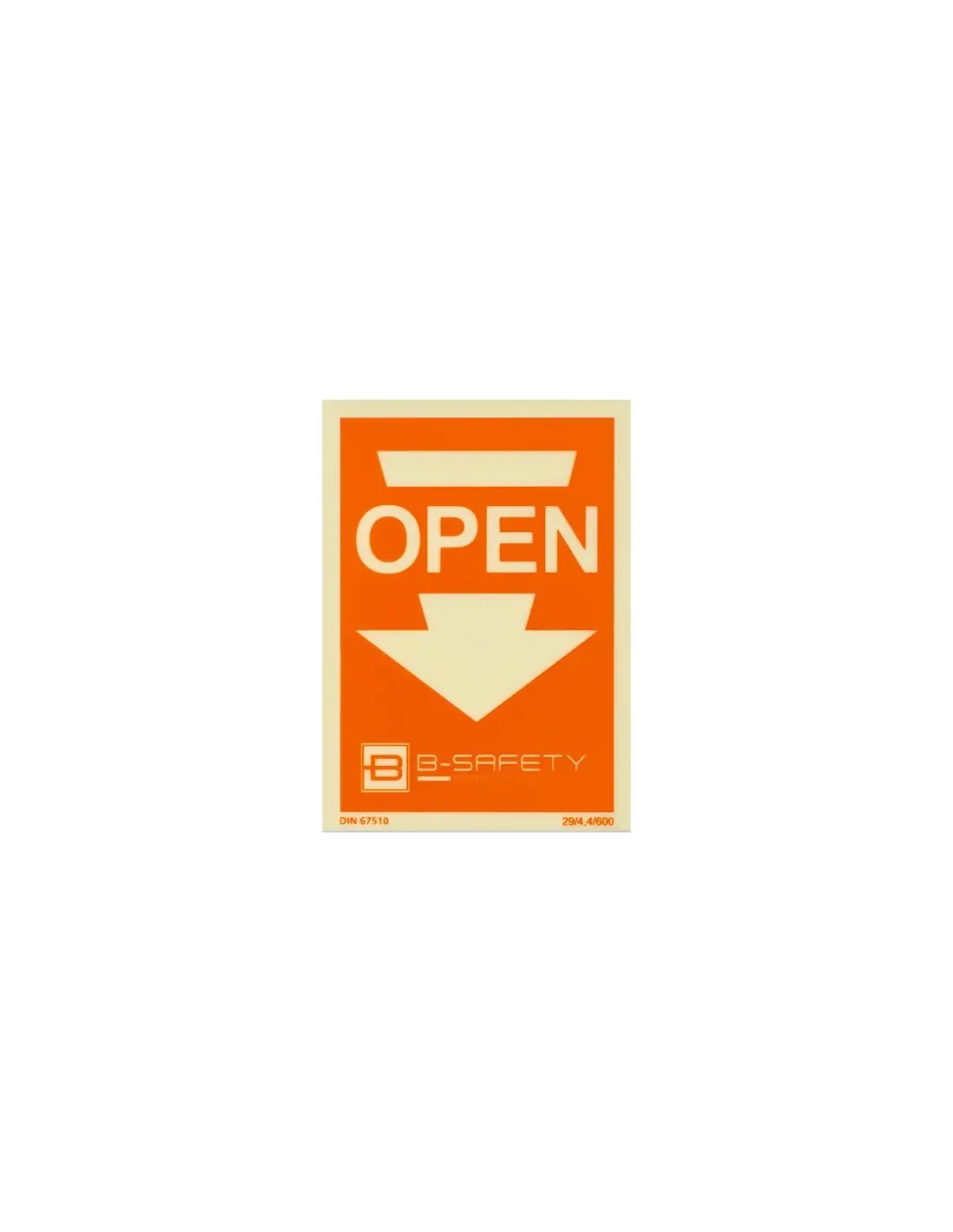

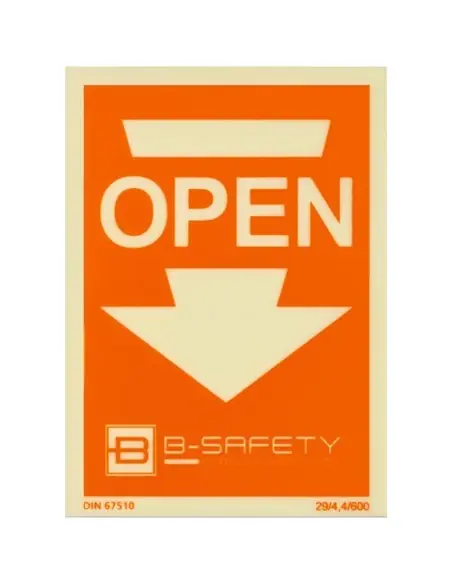

- information sign “OPEN” for confusion-free use in an emergency, orange, photoluminescent according to DIN 67510
- mounting height for lower edge of pull rod handle according to the standards listed below: 0 to 1750 mm height above floor
- according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
- according to ANSI Z358.1-2014, DIN EN 15154-1:2006 and DIN EN 15154-5:2019
