Ultimate Eye Protection: Safety eye shower with two spray heads 45° - ClassicLine - BR 200 085 | B-Safety

Ensure every workplace is ready for emergencies with the Safety eye shower with two spray heads 45° - ClassicLine - BR 200 085 | B-Safety. Designed for swift action, this eye shower provides a rapid, gentle water flow to protect eyes from harmful substances.

Features & Benefits of Safety eye shower with two spray heads 45° - ClassicLine - BR 200 085 | B-Safety

  • Dual Spray Heads at 45°: Two precision-engineered nozzles deliver a wide, focused stream to both eyes, ensuring complete coverage and soothing relief within seconds.
  • Hands-Free Activation: The user-friendly lever allows immediate activation, so anyone can operate it quickly in an emergency—no complicated steps required.
  • Consistent Water Flow: Each spray head maintains steady, low-pressure water, minimizing further damage and discomfort during rinsing.
  • Durable ClassicLine Construction: Built from robust, chemical-resistant materials, it stands up to harsh industrial environments and frequent use, guaranteeing reliability when it matters most.
  • Easy Installation: The compact 45° design fits effortlessly onto any industrial wall or workspace, making it accessible without taking up valuable space.
  • Visible Safety Markings: Bright, universally recognized safety symbols make the unit easy to locate when seconds count.

The Safety eye shower with two spray heads 45° - ClassicLine - BR 200 085 | B-Safety keeps workplaces compliant and employees protected. Its advanced double-spray feature is perfect for laboratories, factories, or any area where chemicals or particles could threaten eye safety.

No matter your team’s experience, this eye shower makes safety simple. With effortless operation and robust materials, it provides immediate, reliable eye protection so everyone can act fast during critical moments.

Choose the Safety eye shower with two spray heads 45° - ClassicLine - BR 200 085 | B-Safety for peace of mind knowing you’re prepared for emergencies—because every second counts when safety is on the line.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel, plastic
  • Colour: green
  • Dimensions (H x W): 175 x 250 mm
  • Operating pressure: 1.5 to 5 bar
  • Flow rate: 14 litres / minute
  • Water inlet: ½“ male

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

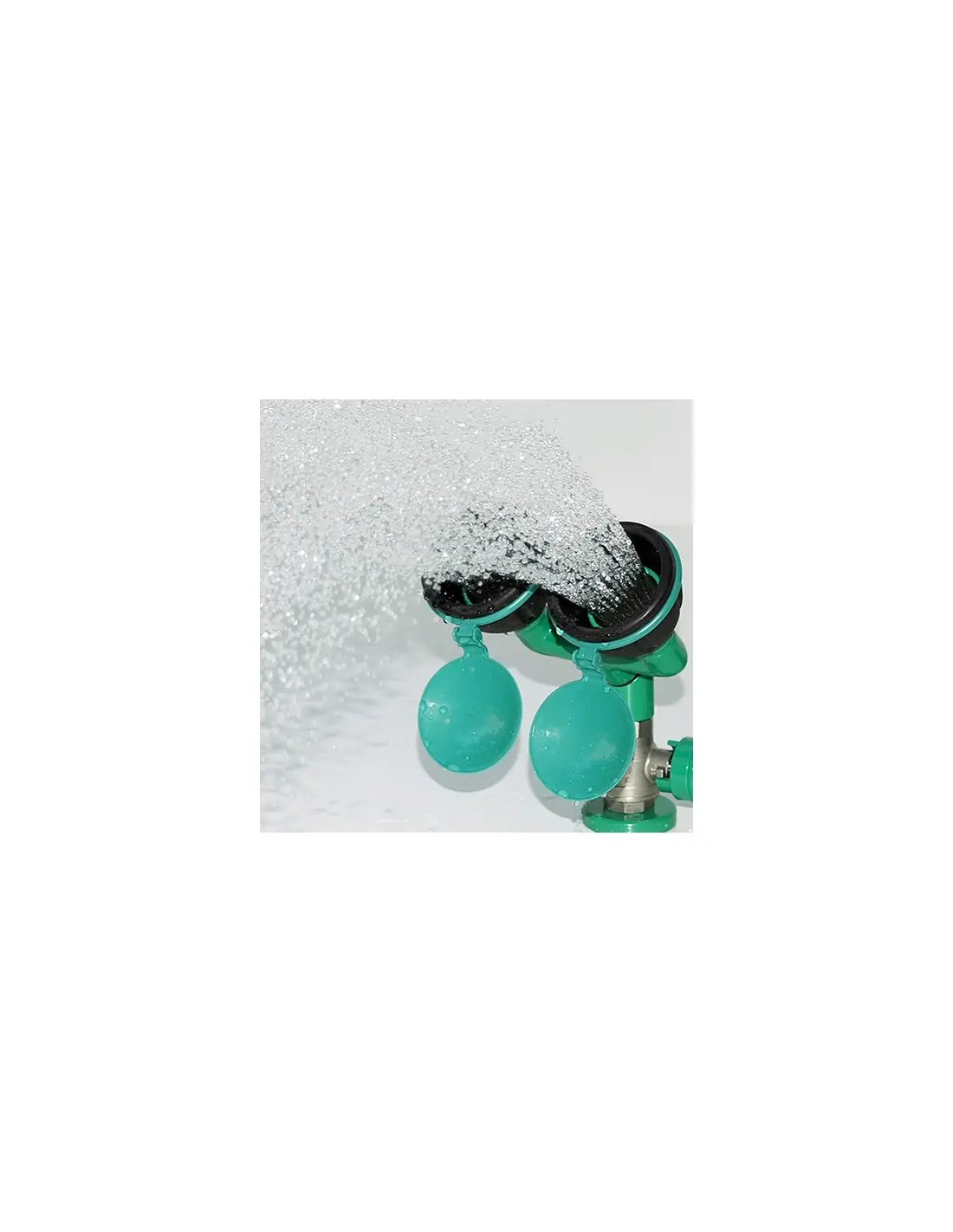

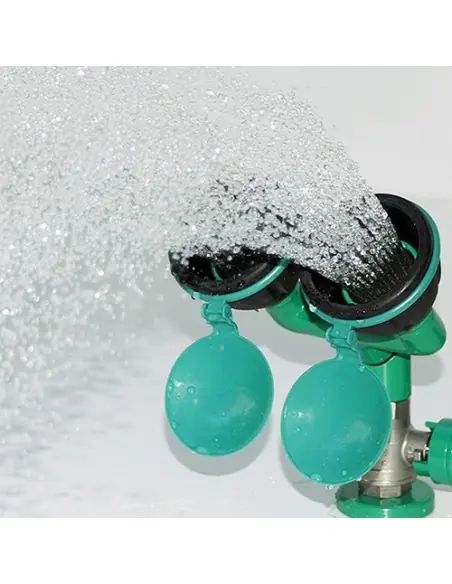

The eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure applied. The rubber sleeves around the shower head protect the person seeking help from impact injuries. Dust covers on the shower head protect against contamination and open automatically when the eye shower is actuated by the water pressure. The large holes in the shower heads prevent standing water and thus calcification.

DVGW
ISO9001_D_72

Technical Description

  • Connection thread 1/2″ male, length 60 mm, incl. fastening-parts kit with nut G1/2″ with 2 screws M5 for difficult to access mounting, with distribution disc, rosette, sealing to table surface with O-Ring
  • integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 1.5 to 5 bar flow pressure
  • ball valve ½” of stainless steel, with PUSH-lever actuation, DIN-DVGW tested and certificated
  • Control panel made of steel, chemical resistant green powder coated, length 130 mm, with large signal “PUSH”, luminescent according to DIN 67510
  • double nipple ½” of stainless steel
  • high-performance spray heads for large-scale dispersion of water, 45° angled, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps, mounted over distributor fork
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • height 175 mm, total width incl. Lever 250 mm
  • Mounting height 825 mm (± 200 mm)
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated

Certification

DVGW    ISO9001_D_72.png
