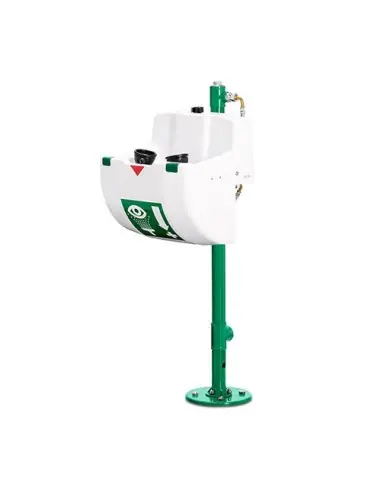

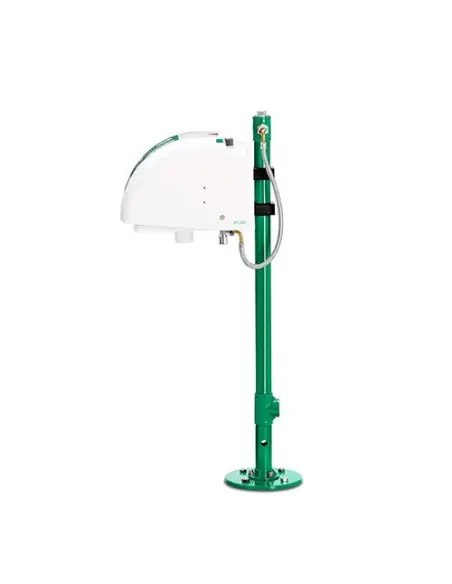

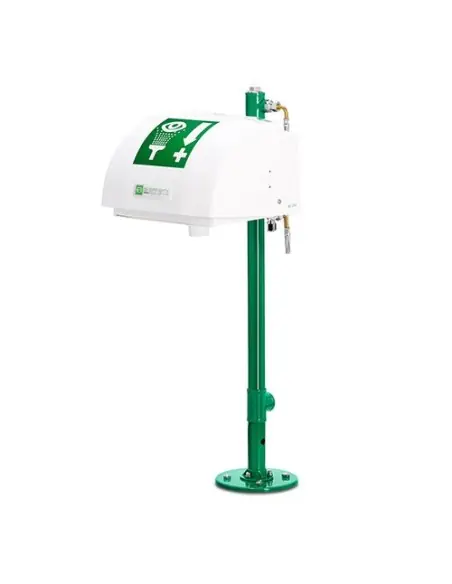

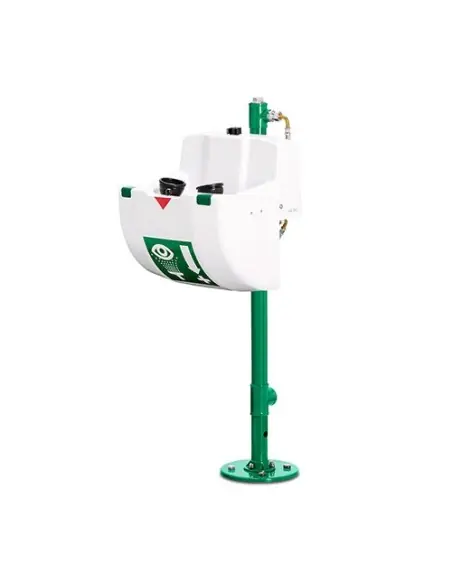

Eye/Face wash unit with bowl and lid - ClassicLine - BR 852 085 | B-Safety | Philippopoulos s.a.

Eye/Face wash unit with bowl and lid - ClassicLine - BR 852 085 | B-Safety

Advanced Safety Made Simple: Features & Benefits of the Eye/Face wash unit with bowl and lid - ClassicLine - BR 852 085 | B-Safety

The Eye/Face wash unit with bowl and lid - ClassicLine - BR 852 085 | B-Safety offers robust protection you can trust in any industrial setting. Designed to deliver fast, effective rinsing during emergencies, this unit provides peace of mind for both workers and management. Its reliable performance and thoughtful design set it apart as a must-have safety solution for workplaces where chemical or particulate exposure is a risk.

Immediate Response: The large, ergonomic bowl enables quick and thorough washing for eyes and face, helping reduce the risk of long-term damage from hazardous substances.
Protective Lid: Fitted with a durable lid, the unit stays clean and free from dust or debris, ensuring it’s always ready for use. Simply lift the lid, and the flow is activated – no time lost when every second counts.
Efficient Water Flow: Engineered with optimized spray heads, this unit provides a gentle yet effective water pattern that covers the entire face and both eyes, ensuring contaminants are swiftly washed away without added discomfort.
Strong Construction: The ClassicLine model features high-grade materials that resist corrosion and withstand demanding industrial environments. It’s built to outlast tough conditions and heavy use.
Easy Installation: Designed for straightforward wall or workbench mounting, it fits seamlessly into various workspace layouts without hassle.

With its intuitive design, the Eye/Face wash unit with bowl and lid - ClassicLine - BR 852 085 | B-Safety helps ensure swift action in critical situations. The protective lid guarantees cleanliness, while its fast-acting spray heads are always ready to deliver immediate decontamination. Rugged and reliable, it is the ideal choice for factories, laboratories, and any place where accidents can happen. Invest in better safety for your team with this trusted unit.

Datasheet and documents

Description

Technical Specifications

Material: ABS plastic, stainless steel
Color: white, green
Dimensions (H x W): 1025 x 350 mm
Operating pressure: 2.5 to 5 bar
Flow rate: 14-20 l/min
Water inlet: 1 ¼” female
Water outlet: 1 ½” male

Norms / Approvals

EN 15154-2:2006
ANSI Z358.1-2014
DIN-DVGW, NW-0417CL0263
GOST-R, Certificate-No. 0615463 0615463

Product description

The eye shower is equipped with two jet regulators, which not only meet the requirements of DIN EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure even water distribution. The limited, uniform and, above all, soft water jet is very suitable for rinsing out chemicals in the eye. Due to the limited water jet, the used water can be completely collected with this eye shower.

The correct jet height and desired flow rate are set on site via the integrated flow control valve. The eye shower is completely protected against dirt by the integrated hinged cover. This makes this shower the right solution for rough everyday industrial use. A sign for an eyewash device in accordance with DIN EN ISO 7010 with a viewing distance of 17 meters is attached to the cover.

Technical Description

base plate with 4 mounting holes of stainless steel, chemical resistant green powder coated, dimensions
200 x 200 mm
stand pipe 1 ¼” of stainless steel, chemical resistant green powder coated, with top and bottom water inlet 1 ¼” female
housing, lid and bowl made of UV and impact resistant ABS plastics, water outlet 1 ½“ male
integrated protective cover against dust
actuation by pulling down the lid
ball valve 3/8“ of brass, with lever actuation by lid, DIN-DVGW tested and certificated
aerators made of brass with a very limited spray pattern, chrome-plated
with integrated flow regulation valve 3/8” for setting the desired spray height and flow rate
inclusive sign for eye shower according to DIN EN ISO 7010 und ASR A1.3 on the lid, dimensions 170 x 170 mm, viewing distance 17 metre
height 1025 mm, width 350 mm, depth 355 mm
according to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
according to ANSI Z358.1-2014 and DIN EN 15154-2:2006
DIN-DVGW tested and certificated

Certification

DVGW
